8061C05.05A001

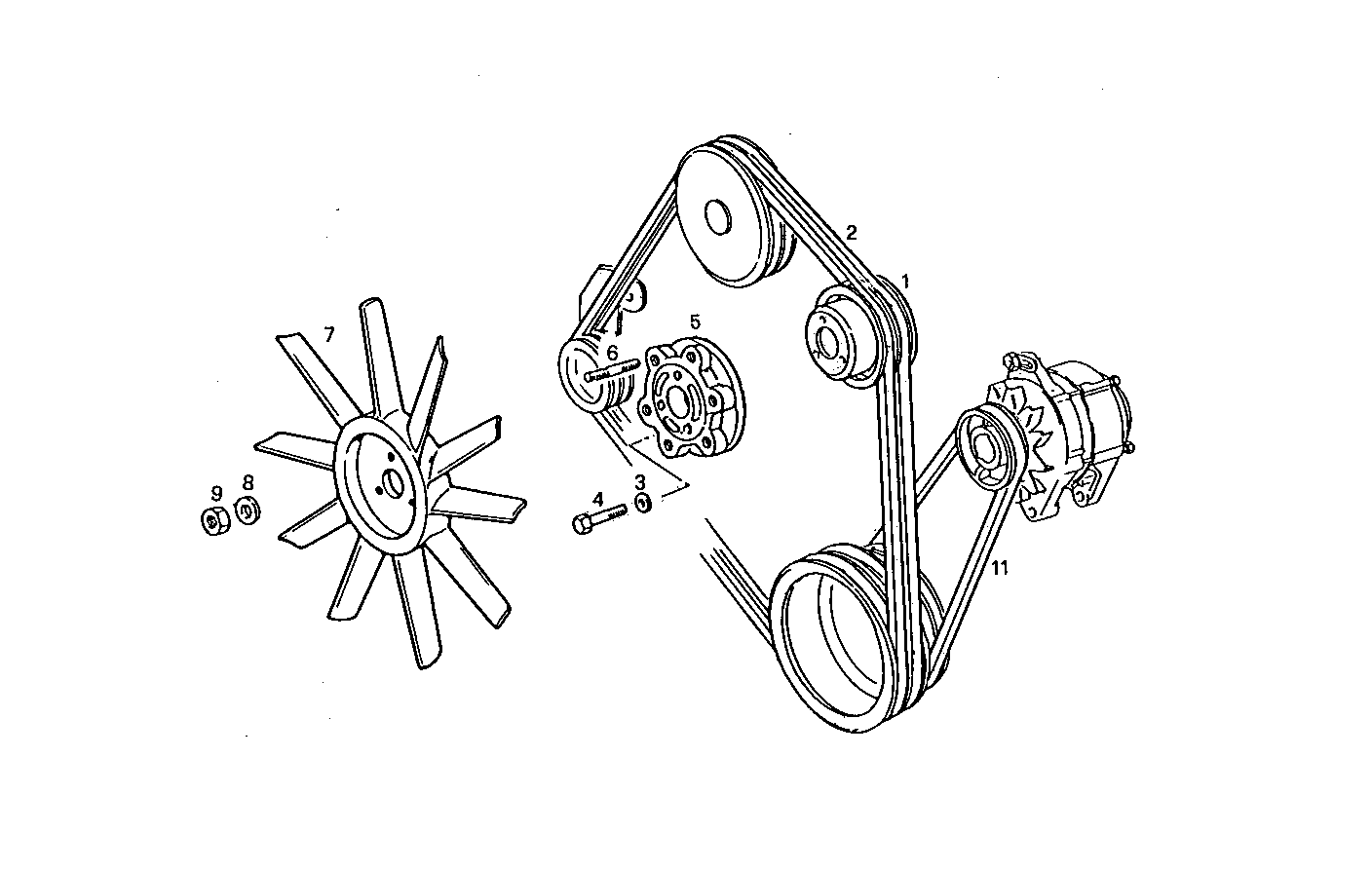

3240.066 PULLEYS AND BELTS
| Item | Part number | Description |
|---|---|---|
| 1 | 4755341 | WATER PUMP PULLEY |
| 2 | 98473883 | SET OF V-BELTS L=1310 MM |
| 3 | 17089574 | WASHER Ø8X16 MM |
| 4 | 16606524 | HEXAGON BOLT M8X70 MM |
| 5 | 4812545 | SPACING BAR |
| 6 | 16746624 | STUD M8X20 MM (8.8) |
| 7 | 500300559 | BLOWER |
| 8 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 9 | 17037931 | HEXAGON NUT M8X1,25 |
| 11 | 98473700 | V-BELT L=985 MM |
