8061C05.05A001

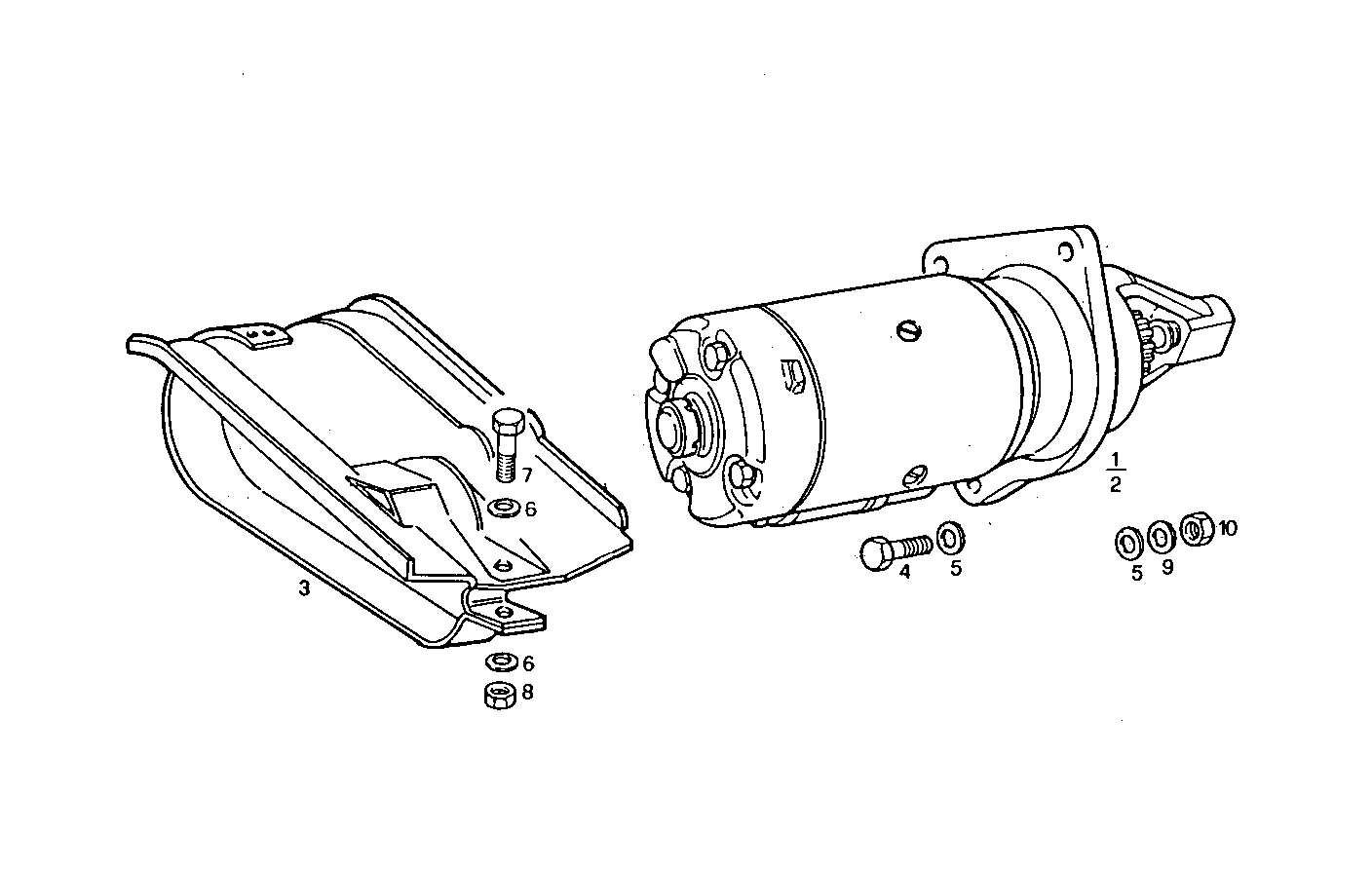

3600.057 STARTER MOTOR
| Item | Part number | Description |
|---|---|---|
| 1 | 4755108 | STARTER MOTOR ASSY BOSCH - 24V - OPT. [up to 01-00] |
| 2 | 4807378 | STARTER MOTOR ASSY MARELLI |
| 3 | 4721863 | PROTECTION |
| 4 | 16608724 | HEXAGON BOLT M10X90 MM |
| 5 | 17095004 | WASHER Ø10X18X2 MM |
| 6 | 17088474 | WASHER Ø6X12 MM |
| 7 | 16604124 | HEXAGON BOLT M6X40 MM |
| 8 | 17037821 | HEXAGON NUT M6X1 |
| 9 | 17494934 | WASHER Ø10X18,1X2,2 MM |
| 10 | 17038121 | HEXAGON NUT M10 |
