8061C05.05A001

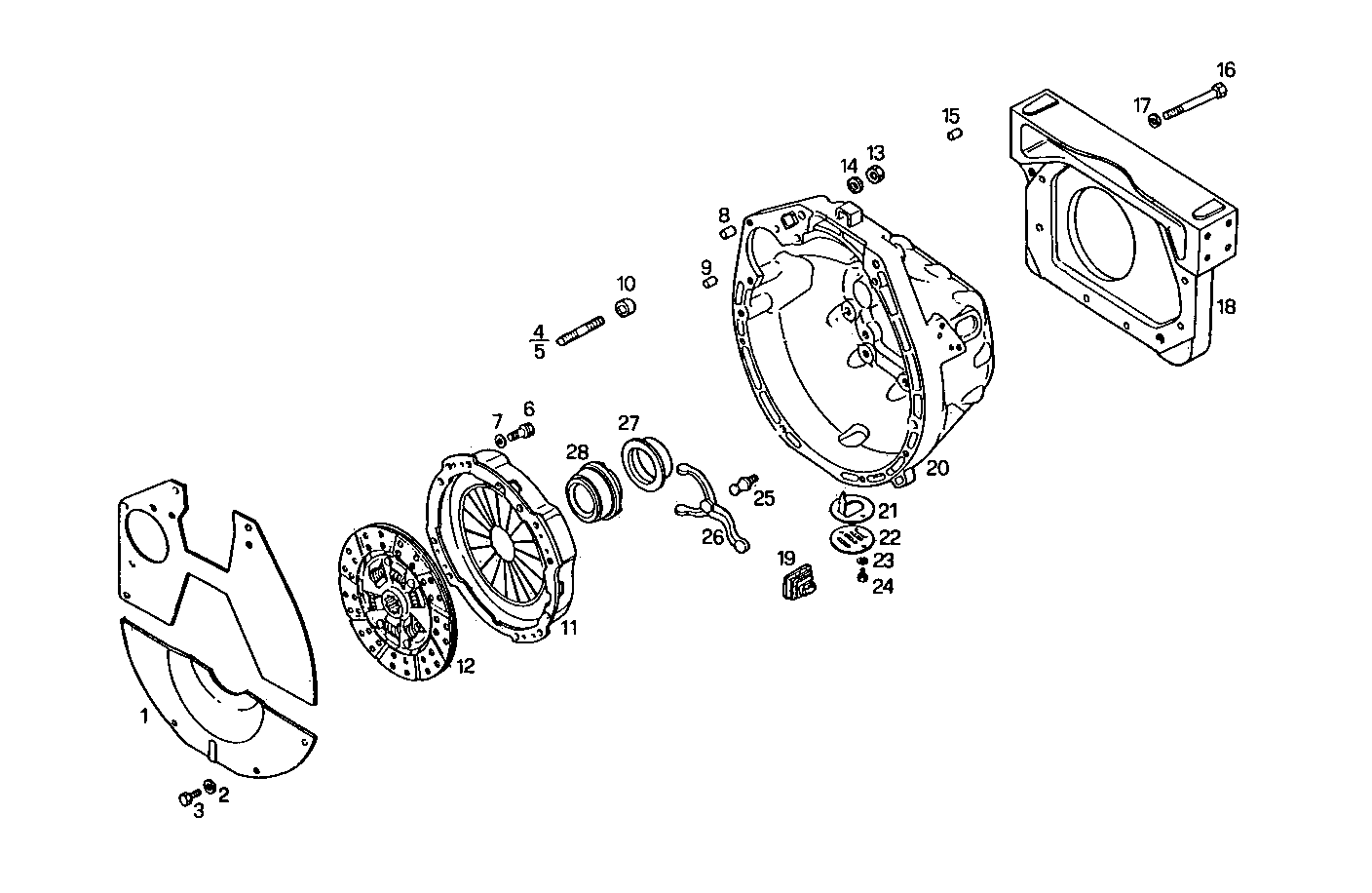

5200.006 CLUTCH

Iveco/FPT CLUTCH

Item Part number Description
1 8584074 PROTECTION
2 17089774 SPRING WASHER Ø8,4X22 MM SP=2,4 MM
3 16605524 HEXAGON BOLT M8X20 MM
4 16736224 STUD
5 16764224 STUD
6 4659180 HEXAGON BOLT M10X22 MM
7 17095004 WASHER Ø10X18X2 MM
8 8822015 DOWEL PIN
9 4647524 DOWEL PIN
10 8822016 SPACING BAR
11 4808941 THRUST PLATE BORG & BECK
12 8022027 CLUTCH DISC
13 17038721 NUT M14X2 [from ...]
14 17095504 WASHER Ø14X28 MM
15 17275510 DOWEL PIN Ø10 MM
16 16607924 HEXAGON BOLT M10X1,5X40 MM
17 17095104 WASHER Ø10X21X2 MM
18 8022028 COVER
19 4794012 PROTECTIVE HOOD
20 8022024 COVER
21 4606988 CONNECTING PLATE
22 4540660 COVER
23 17494634 SPRING WASHER Ø5,1X9,2 MM
24 16972204 CYLIND-HEAD SCREW M4,8X13 MM
25 4577306 BALL-END PIN
26 4773745 CLUTCH LEVER
27 8022001 BUSH
28 4787273 RELEASE SLEEVE
