8061C05.05A030

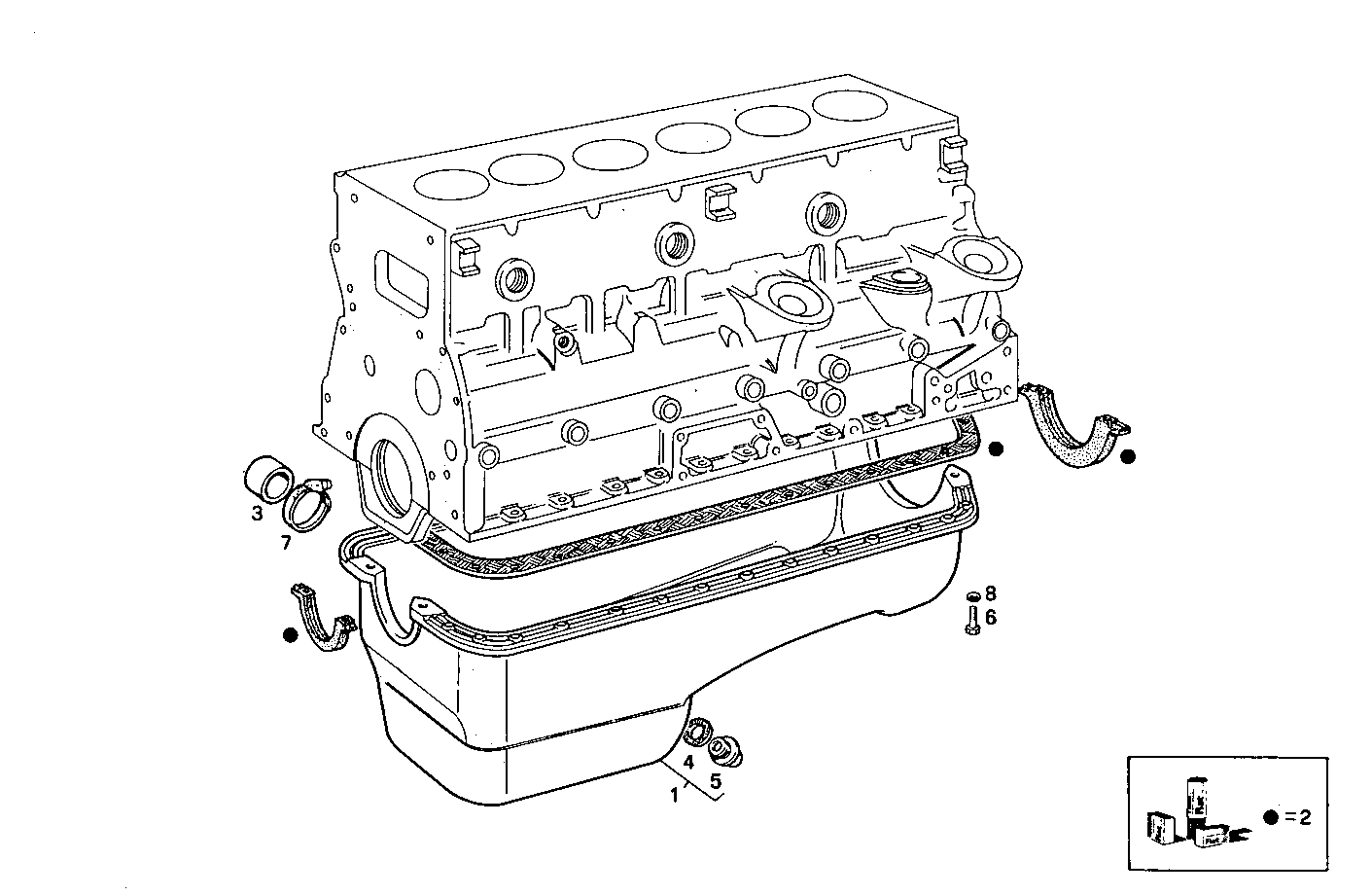

0420.009 OIL SUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 4677330 | OIL SUMP ASSY |
| 2 | 1902553 | KIT-OILSUMP GASKET |
| 3 | 4695740 | RUBBER SLEEVE |
| 4 | 16508460 | WASHER 22x27x1,5 |
| 5 | 16993411 | THREADED PLUG M22X1,5 |
| 6 | 10923221 | HEXAGON BOLT M10X25 MM |
| 7 | 17764791 | CLIP Ø32/50 MM |
| 8 | 17095001 | WASHER |
