8061C05.05A030

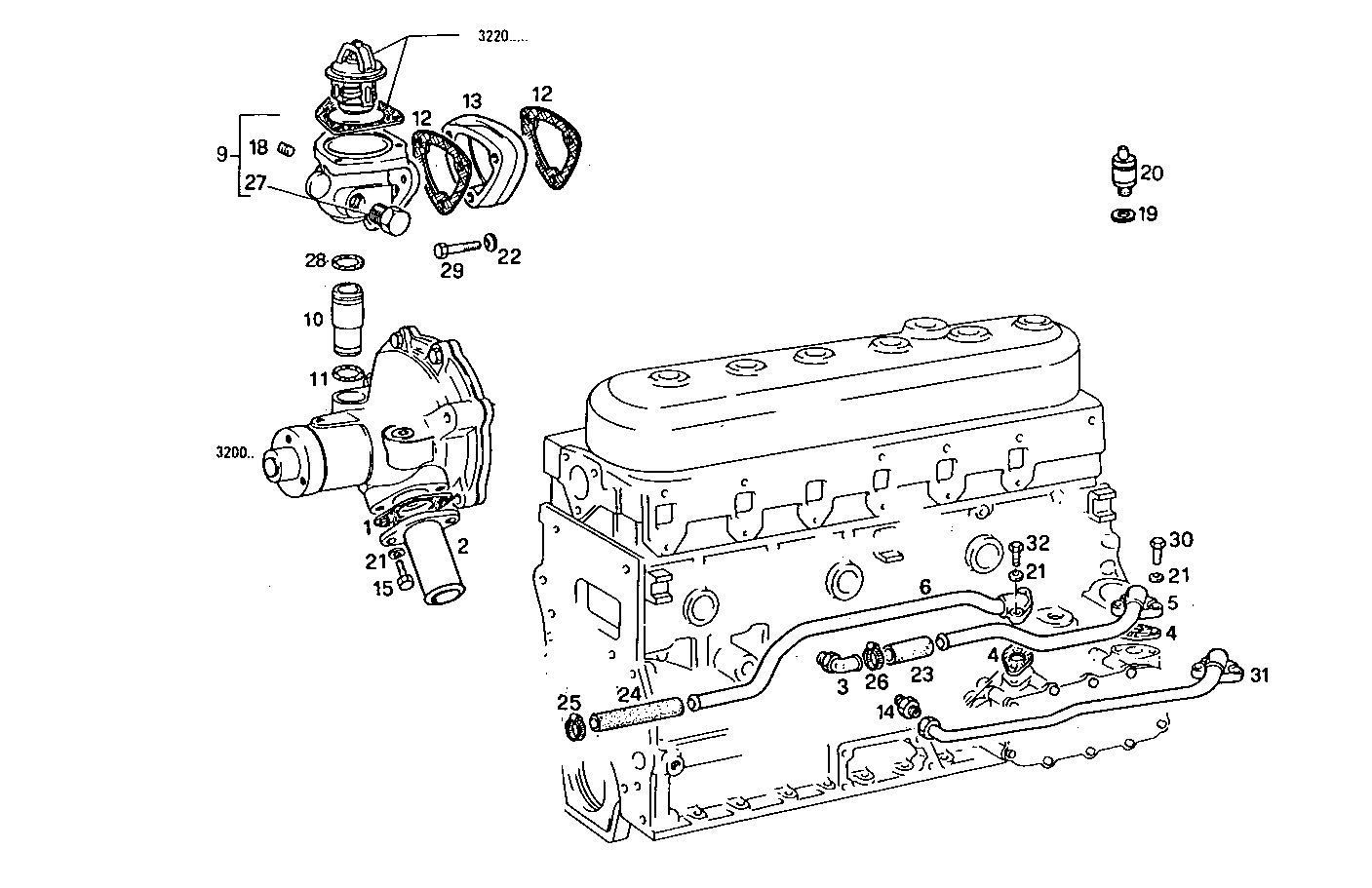

3210.121 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 4852556 FLAT ENGINE GASKET
2 4819458 WATER PIPE
3 98418131 ELBOW COUPLING [up to 565948]
4 4853970 FLAT ENGINE GASKET
5 4796639 WATER PIPE [up to 07-92]
6 4762766 WATER PIPE
9 98431829 THERMOSTAT BODY ASSY [from 545610]
10 98415712 PIPE SOCKET [from 657424]
11 17282281 O-RING 2,62x23,47
12 4851926 FLAT ENGINE GASKET
13 1368751 SPACING BAR
14 98433191 PIPE SOCKET [from 07-92]
15 98401723 HEXAGON BOLT M8X1,25X12 MM
18 14325301 LOCK PLUG Ø22 MM
19 10278660 SEAL GASKET Ø16X22 MM SP=1 MM
20 4849451 TRANSMITTER
21 17094914 WASHER 8x16
22 17090274 WASHER Ø10X20 MM
23 98434883 WATER HOSE [up to ...]
24 596152 RUBBER SLEEVE
25 17764791 CLIP Ø32/50 MM
26 17764592 CLIP Ø20/32 MM
27 14325201 LOCK PLUG
28 17288681 O-RING Ø24,9 MM SP=3,5 MM
29 15971721 SCREW M10X1,25X95
30 16043621 HEXAGON BOLT M8X25 MM
31 98432541 WATER PIPE [from 07-92]
32 16625734 HEXAGON BOLT M8X35
