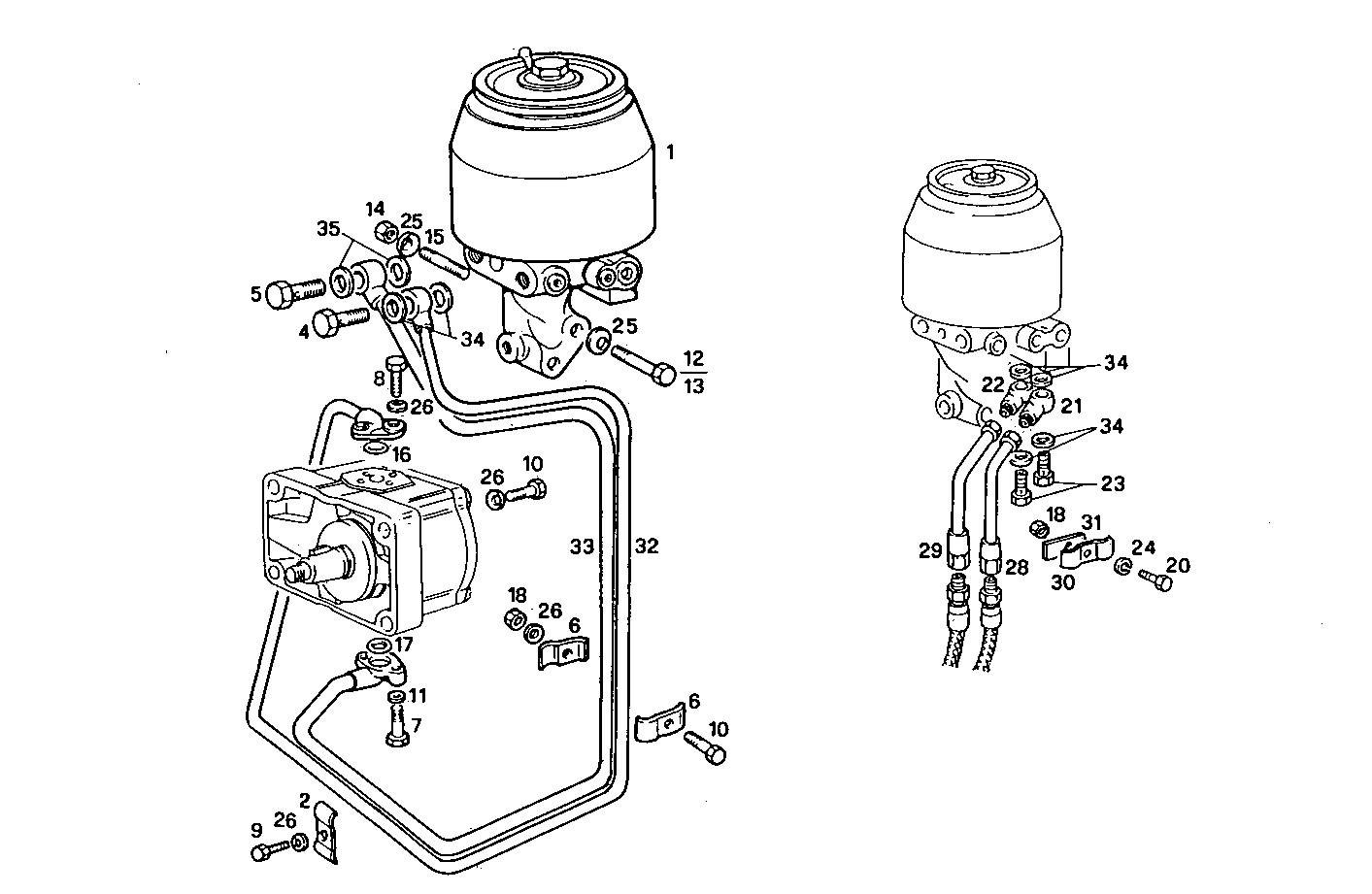

| Item |
Part number |
Description |
|
1 |
1368798 |
STEERING OIL TANK ASSY |
|
2 |
1377329 |
CLIP |
|
4 |
4617105 |
SCREW CONNECTOR |
|
5 |
4629222 |
SCREW CONNECTOR |
|
6 |
4649804 |
CLIP |
|
7 |
16605824 |
HEXAGON BOLT M8X35 MM |
|
8 |
10902721 |
HEXAGON BOLT M6 |
|
9 |
10902621 |
SCREW M6X25 MM |
|
10 |
16603924 |
HEXAGON BOLT M6X30 MM |
|
11 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
12 |
11288021 |
HEXAGON BOLT M10X1,25X60 MM |
|
13 |
14308121 |
SOCKET-HEAD SCREW |
|
14 |
17038221 |
HEXAGON NUT M10 |
|
15 |
13449921 |
STUD M10X15X40 |
|
16 |
17281781 |
O-RING Ø15,5 MM SP=2,6 MM |
|
17 |
17282181 |
O-RING Ø21,8 MM SP=2,6 MM |
|
18 |
17037821 |
HEXAGON NUT M6X1 |
|
20 |
16603624 |
HEXAGON BOLT M6X16 MM (8.8) |
|
21 |
60114200 |
BANJO COUPLING |
|
22 |
60114201 |
BANJO COUPLING |
|
23 |
10182617 |
BANJO BOLT M20X1,5 |
|
24 |
17494734 |
WASHER Ø6X11,8X1,6 MM |
|
25 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
26 |
17088474 |
WASHER Ø6X12 MM |
|
28 |
4834199 |
PIPE |
|
29 |
4834201 |
PIPE |
|
30 |
4834223 |
CLIP |
|
31 |
4834224 |
CONNECTING PLATE |
|
32 |
98429175 |
HYDRAULIC LINE |
|
33 |
98429178 |
HYDRAULIC LINE |
|
34 |
98429280 |
SEAL GASKET Ø20X26 MM SP=1,5 MM |
|
35 |
98429281 |
SEAL GASKET Ø24X31 MM SP=1,5 MM |
