8061C05.05A030

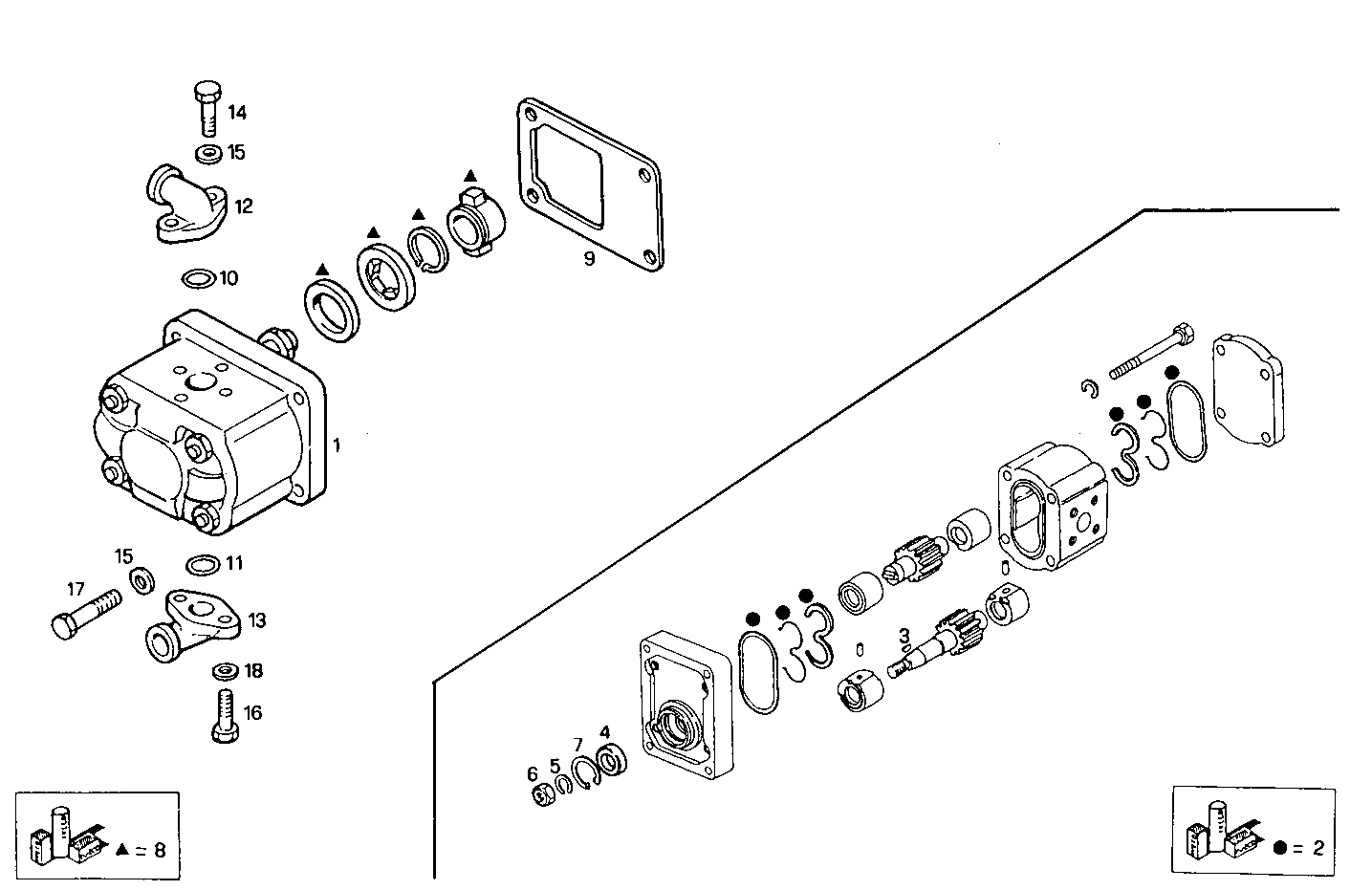

4230.001 POWER STEERING PUMP DRIVE
| Item | Part number | Description |
|---|---|---|
| 1 | 4847938 | OIL PUMP-STEERING ASSY BOSCH |
| 2 | 42481597 | KIT-HYDROST.PUMP |
| 3 | 10205720 | KEY 3X5 MM |
| 4 | 93160143 | RADIAL SEAL Ø17X30 MM |
| 5 | 79058503 | WASHER |
| 6 | 7984181 | NUT M12X1,5 |
| 7 | 7984179 | CIRCLIP |
| 8 | 8090343 | KIT-HYDRAULIC PUMP |
| 9 | 4850986 | FLAT ENGINE GASKET |
| 10 | 17088474 | WASHER Ø6X12 MM |
| 11 | 16603924 | HEXAGON BOLT M6X30 MM |
