8061i05.00

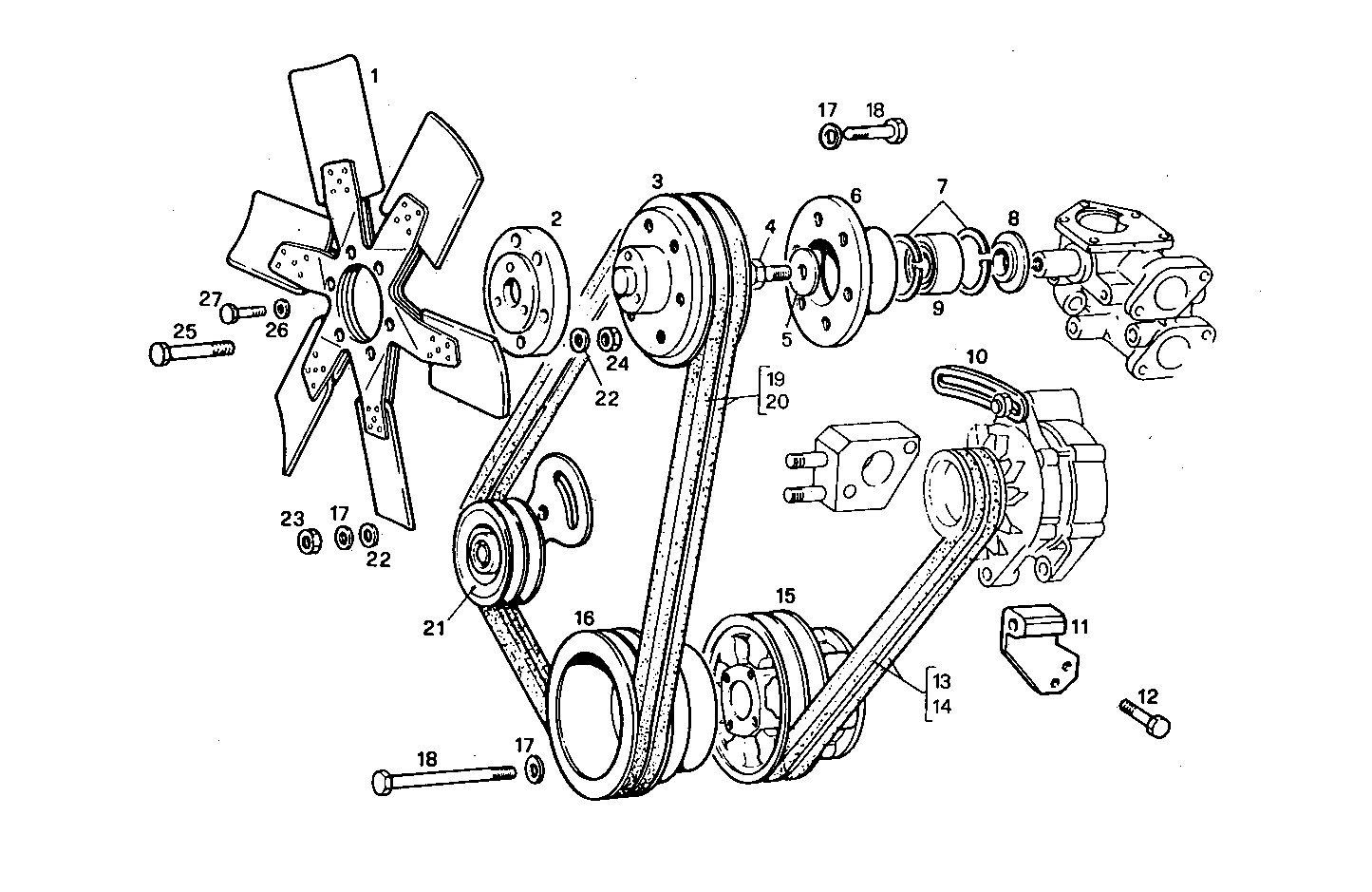

A08020004/01 OVERSIZE PUSHER FAN - high position

Iveco/FPT OVERSIZE PUSHER FAN

Item Part number Description
1 4933187 FAN Ø510 MM
2 4929123 SPACING BAR
3 4936341 PULLEY
4 15897931 SCREW
5 4772231 SPACER RING
6 4772230 HUB
7 11061576 CIRCLIP Ø76,5 MM
8 4747164 WASHER
9 4318965 DRIVE BEARING
10 4626125 RETAINER
11 4936497 SUPPORT
12 16043621 HEXAGON BOLT M8X25 MM
13 4799498 ALTERNATOR BELT
14 4799496 V-BELT L=1100 MM
15 8104551 PULLEY
16 8104552 PULLEY
18 15971421 HEXAGON BOLT M10X1,25X80 MM
19 4936523 V-BELT
20 4936524 V-BELT KIT
21 4616156 BELT TENSIONER
22 12638621 WASHER Ø10X22 MM
23 12164711 HEXAGON NUT M10X1,25
24 12574511 NUT M10X1,25
25 15970921 HEXAGON BOLT M10X1,25X35 MM
26 11194071 WASHER Ø8X16X1,9 MM
27 16044121 HEXAGON BOLT M8X45 MM (8.8)
28 15004021 HEXAGON BOLT M10X1,25X25 MM
