8061i05.00

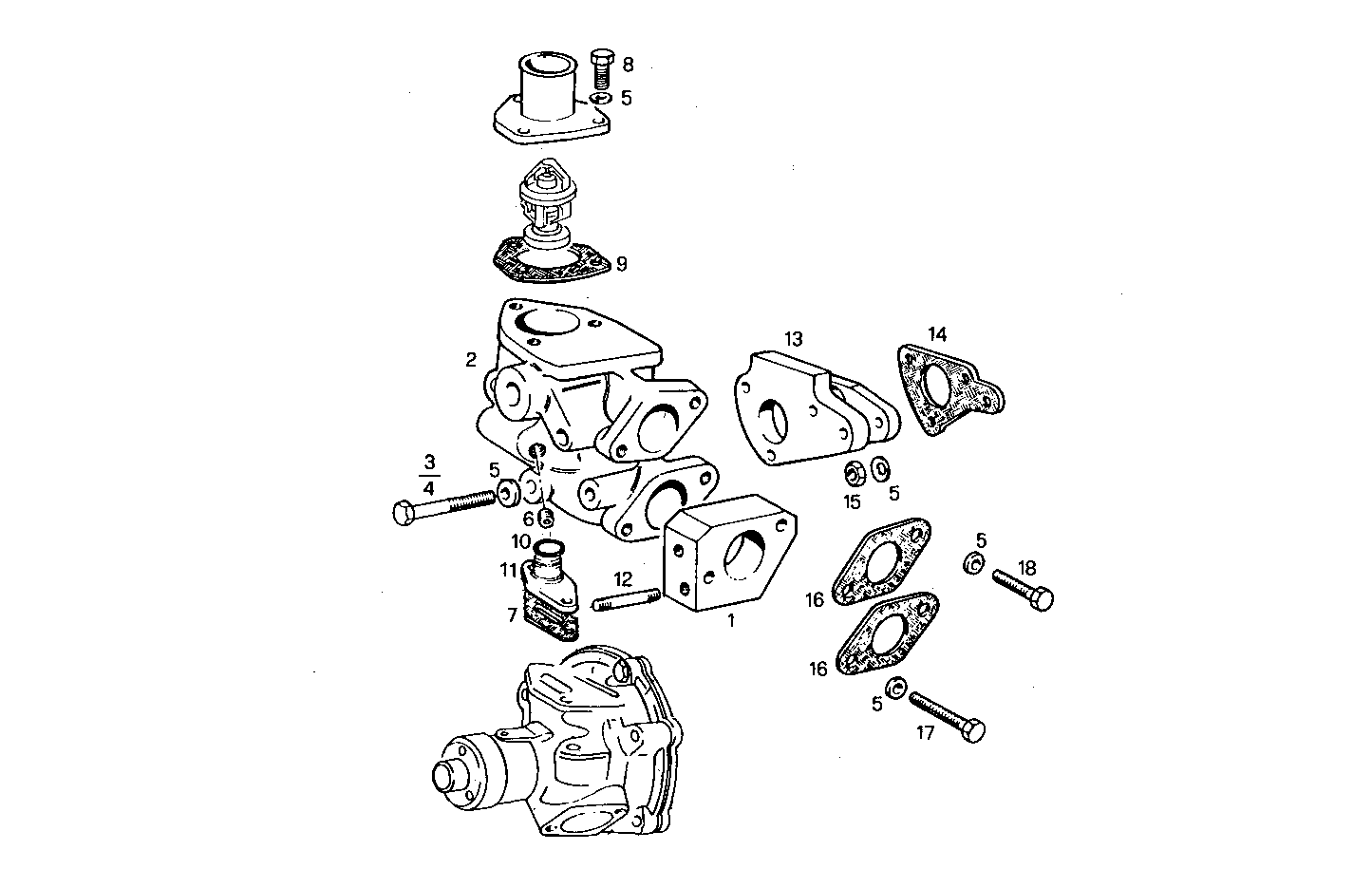

A08020004/02 OVERSIZE PUSHER FAN - high position

Iveco/FPT OVERSIZE PUSHER FAN

Item Part number Description
1 4936436 SUPPORT
2 4790881 THERMOSTAT BODY
3 15971621 HEXAGON BOLT M10X1,25X90 MM
4 15972621 HEXAGON BOLT M10X1,25X140 MM
5 11198371 SPRING WASHER Ø10X20 MM
6 14323811 LOCK PLUG Ø20 MM SP=1,5 MM
7 4774435 GASKET
8 16043621 HEXAGON BOLT M8X25 MM
9 4599809 FLAT ENGINE GASKET
10 14463281 O-RING Ø3,53X24,99 MM
11 4774405 PIPE [up to 511892]
12 13449521 STUD M10X15X25
13 4728640 SPACING BAR
14 4728639 GASKET
15 12164711 HEXAGON NUT M10X1,25
16 38824001 GASKET
17 15004021 HEXAGON BOLT M10X1,25X25 MM
18 11288021 HEXAGON BOLT M10X1,25X60 MM
