8061i05.00

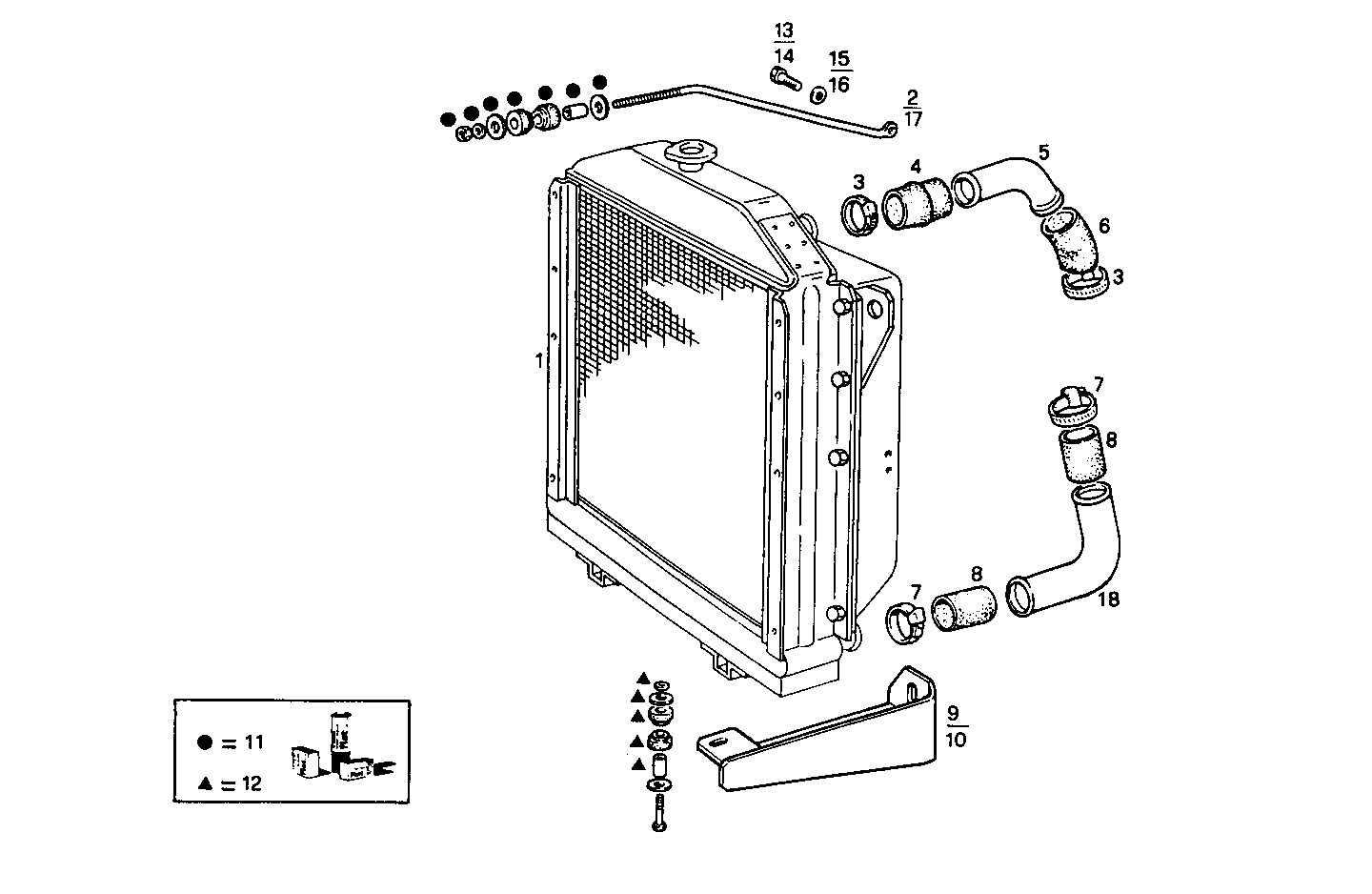

A22010012 RADIATOR FOR SETTING TILL MAX POWER - if compressor fitted
| Item | Part number | Description |
|---|---|---|
| 1 | 8017576 | WATER RADIATOR ASSY |
| 2 | 8105749 | TIE ROD RIGHT |
| 3 | 17764891 | CLIP Ø40/60 MM |
| 4 | 17743887 | RUBBER SLEEVE |
| 5 | 4936022 | WATER PIPE |
| 6 | 4787630 | RUBBER SLEEVE |
| 7 | 17764791 | CLIP Ø32/50 MM |
| 8 | 4934627 | RUBBER SLEEVE |
| 9 | 8105681 | SUPPORT |
| 10 | 8105682 | SUPPORT |
| 11 | 8090340 | KIT-RADIATOR A.S. COMPLETE |
| 12 | 8090341 | KIT-RADIATOR A.S. COMPLETE |
| 13 | 16605734 | HEXAGON BOLT M8X30 MM |
| 14 | 98491344 | SCREW LEFT |
| 15 | 10519601 | WASHER Ø8X17 MM |
| 16 | 98415215 | WASHER Ø10X20X2,3 MM |
| 17 | 8105752 | TIE ROD LEFT |
| 18 | 8105766 | WATER PIPE |
