8061i06.05

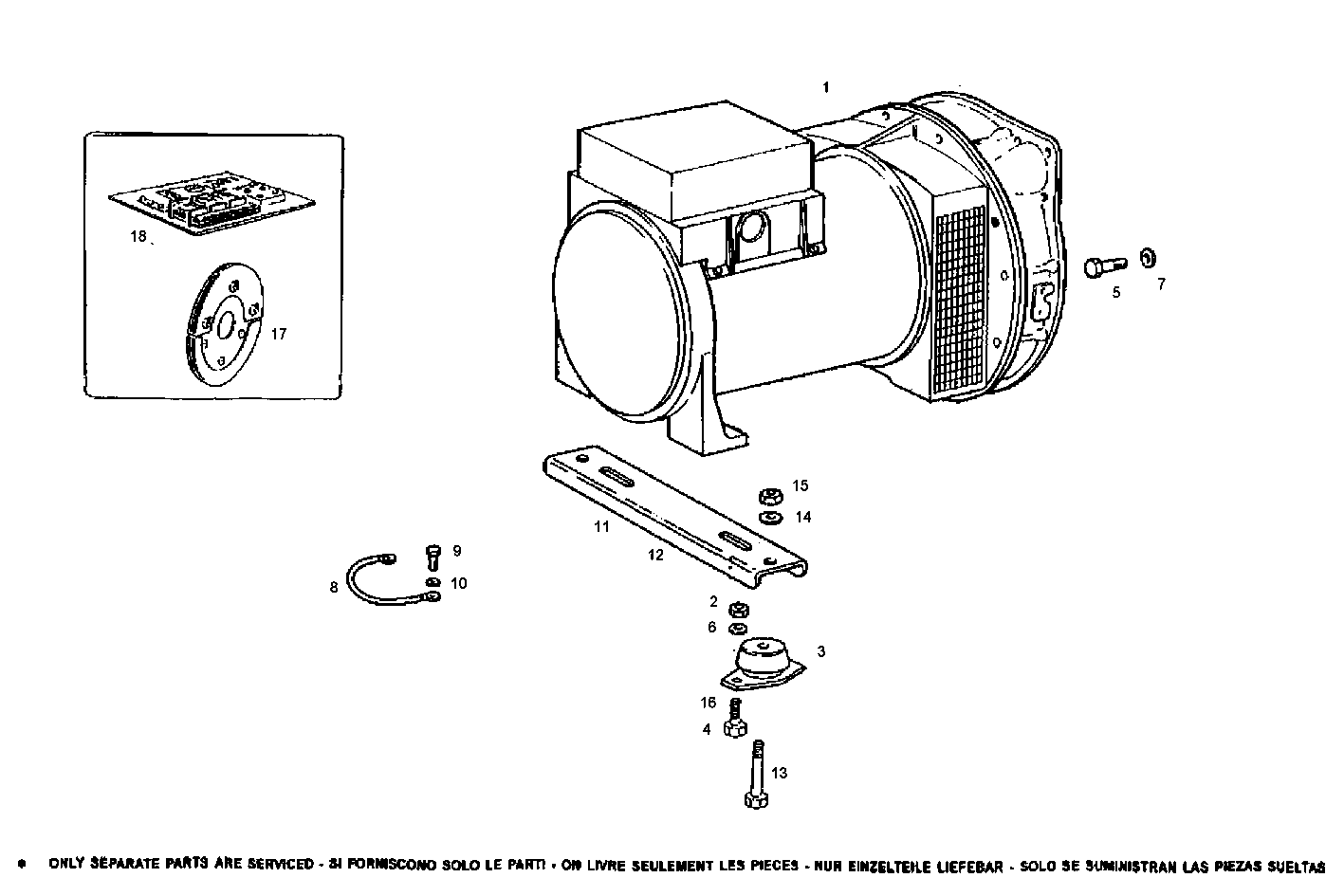

A37410071/1 ELECTRIC MACHINE - MECC-ALTE

Iveco/FPT ELECTRIC MACHINE

Item Part number Description
1 8027358 ELECTRIC MACHINE ECO 32 2L/4 50-60HZ [from 03-99]
2 17038131 HEXAGON NUT M10
3 4911960 RUBBER PAD
4 16607625 SCREW M10X25
5 15970524 HEXAGON BOLT M10X1,25X20
6 17094104 WASHER Ø3X7 MM
7 17494934 WASHER Ø10X18,1X2,2 MM
8 8110852 EARTH WIRE
9 16605424 SCREW M8X16 MM (8.8)
10 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
11 503110501 SUPPORT
12 503110498 TIE
13 16614724 SCREW M16X45
14 17092174 SPRING WASHER Ø16X32X3,4
15 17038931 HEXAGON NUT M16X2
16 17090974 SPRING WASHER Ø12X24 MM
17 8093776 EL.MACHINE BEARING
18 8093974 EL.MACHINE VOLTAGE REGUL. MECC-ALTE
