8061i06.05

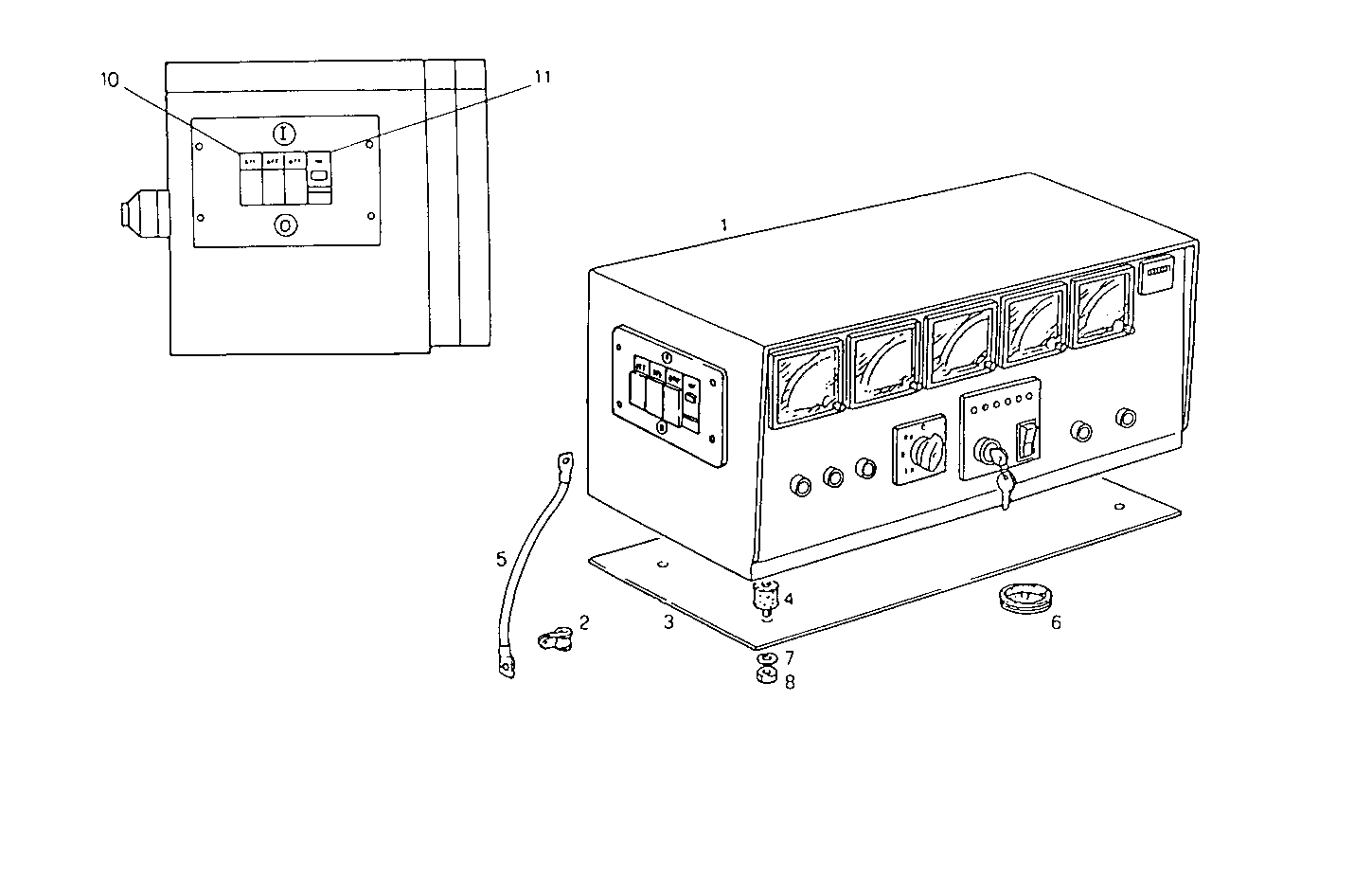

A60130063 MANUAL CONTROL BOARD FOR ELECT. MACHINE - MARELLI
| Item | Part number | Description |
|---|---|---|
| 1 | 8021468 | CONTROL BOARD ASSY 220V/380V 50-60HZ |
| 2 | 17314890 | CLIP |
| 3 | 8019140 | COVER |
| 4 | 8104155 | DOWEL |
| 5 | 8104707 | WIRE/CABLE |
| 6 | 8113214 | INSULATING RING |
| 7 | 17088474 | WASHER Ø6X12 MM |
| 8 | 17037821 | HEXAGON NUT M6X1 |
| 10 | 8093329 | SWITCH 100A |
| 11 | 8093782 | MINIMUN TENSION COIL |
