8061i25.00

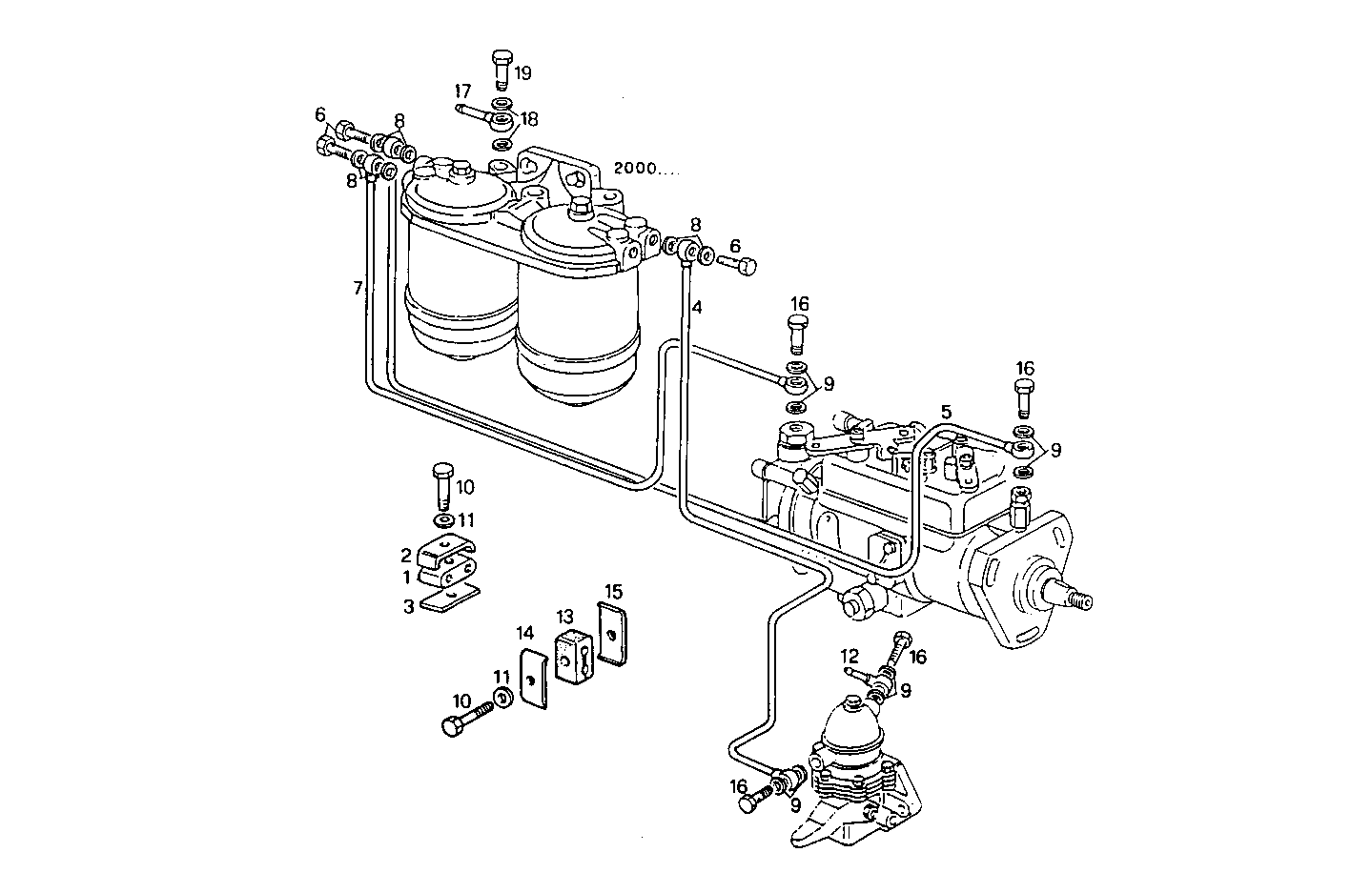

2030.144 FUEL LINES

Iveco/FPT FUEL LINES

Item Part number Description
1 4659217 DOWEL
2 4659218 CLIP
3 4659219 PLATE
4 98417225 FUEL LINE
5 98417227 FUEL LINE
6 4864083 SCREW CONNECTOR M14X1,5X30 MM
7 98417226 FUEL LINE
8 4858608 SEAL GASKET dia.14x19,5x1,5
9 4858607 WASHER Ø12X17 MM SP=1,5 MM
10 16602324 HEXAGON BOLT M5X25 MM
11 17494631 SPRING WASHER Ø5 MM
12 98416591 SWIVEL COUPLING
13 4659220 DOWEL
14 4659221 CLIP
15 4659222 CLAMP
16 4864082 BANJO BOLT M12X1,5X25 MM
17 98417522 PIPE SOCKET
18 4858606 GASKET Ø10X14X1 MM
19 98417535 SCREW CONNECTOR
