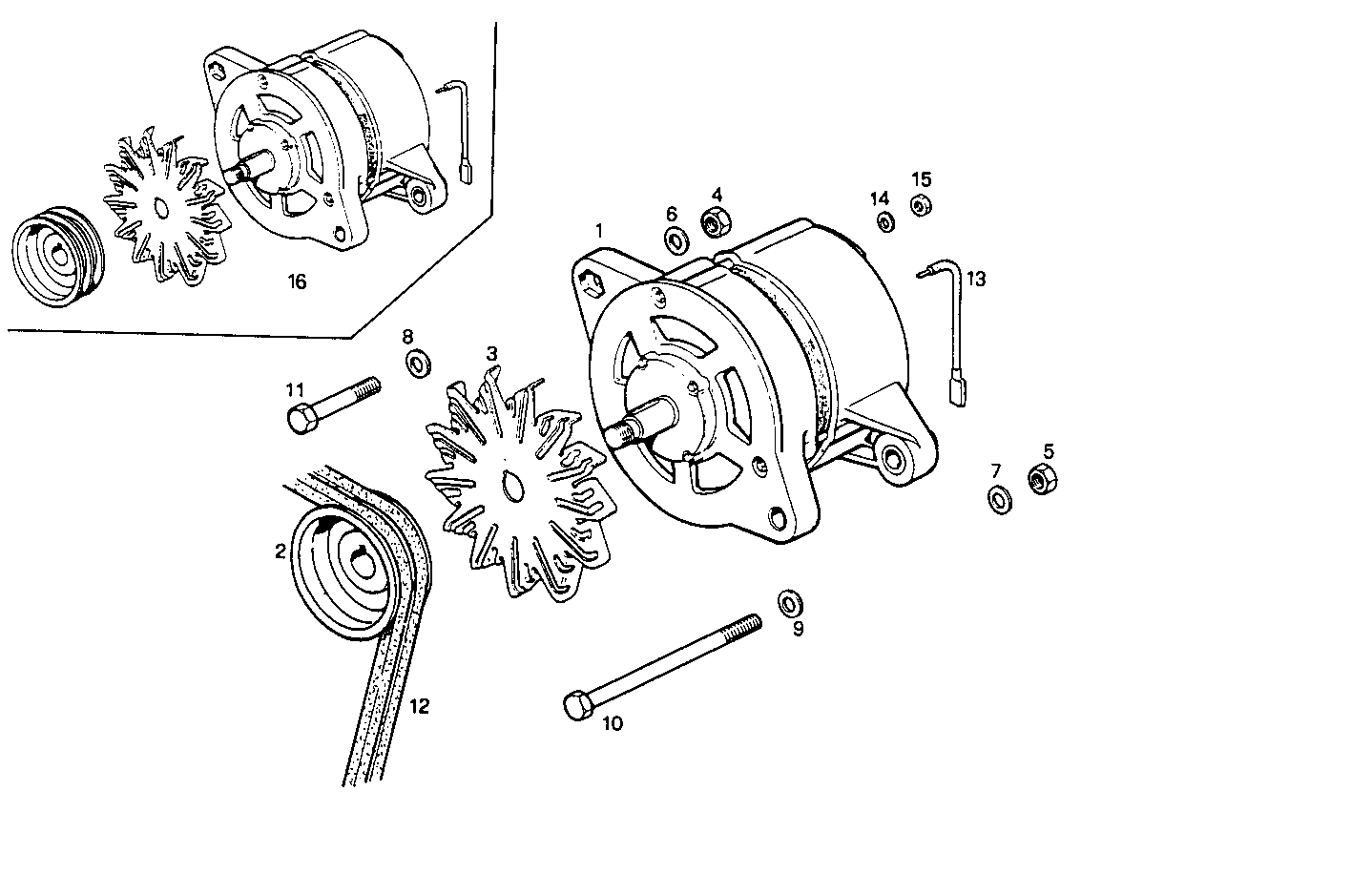

A14500001 SELF-REGULATED ALTERNATOR - 24V 30A (W) - industrial duty

Iveco/FPT SELF-REGULATED ALTERNATOR

Item Part number Description
1 4808519 ALTERNATOR MARELLI - 24V [from 26031986]
2 8012783 PULLEY
3 4717026 GENERATOR FAN MARELLI
4 17038221 HEXAGON NUT M10
5 17038621 NUT M12
6 17090174 SPRING WASHER Ø10X20 MM
7 17091074 WASHER Ø12X24X2,8 MM
8 17095104 WASHER Ø10X21X2 MM
9 17095304 WASHER Ø12X24 MM
10 15541821 HEXAGON BOLT M12X1,25X120 MM [up to 565948]
11 15970921 HEXAGON BOLT M10X1,25X35 MM
12 4847051 SET OF V-BELTS L=1130 MM
13 8105654 WIRE/CABLE
14 17088474 WASHER Ø6X12 MM
15 17037821 HEXAGON NUT M6X1
16 8012805 ALTERNATOR ASSY
