8061i40.05

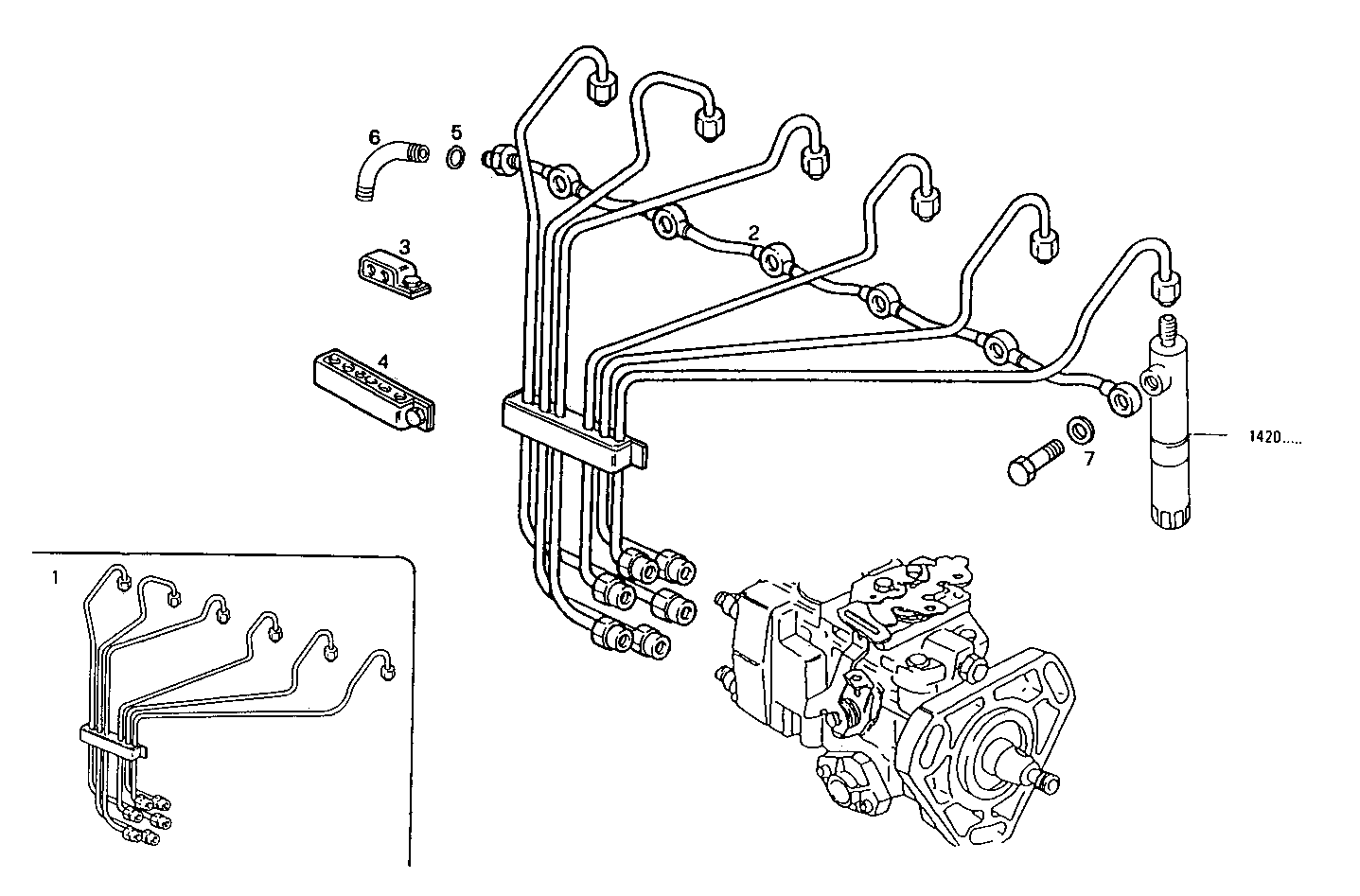

2020.113 INJECTION PIPES
| Item | Part number | Description |
|---|---|---|
| 1 | 4806589 | INJECTION LINE SET |
| 2 | 8029298 | FUEL LINE D [from 01-09-02] |
| 3 | 4806611 | FASTENING BRACKET |
| 4 | 4806614 | FASTENING BRACKET |
| 5 | 8024645 | O-RING Ø4 MM |
| 6 | 16503011 | PIPE SOCKET |
| 7 | 10297760 | SEAL GASKET Ø6,2 MM |
