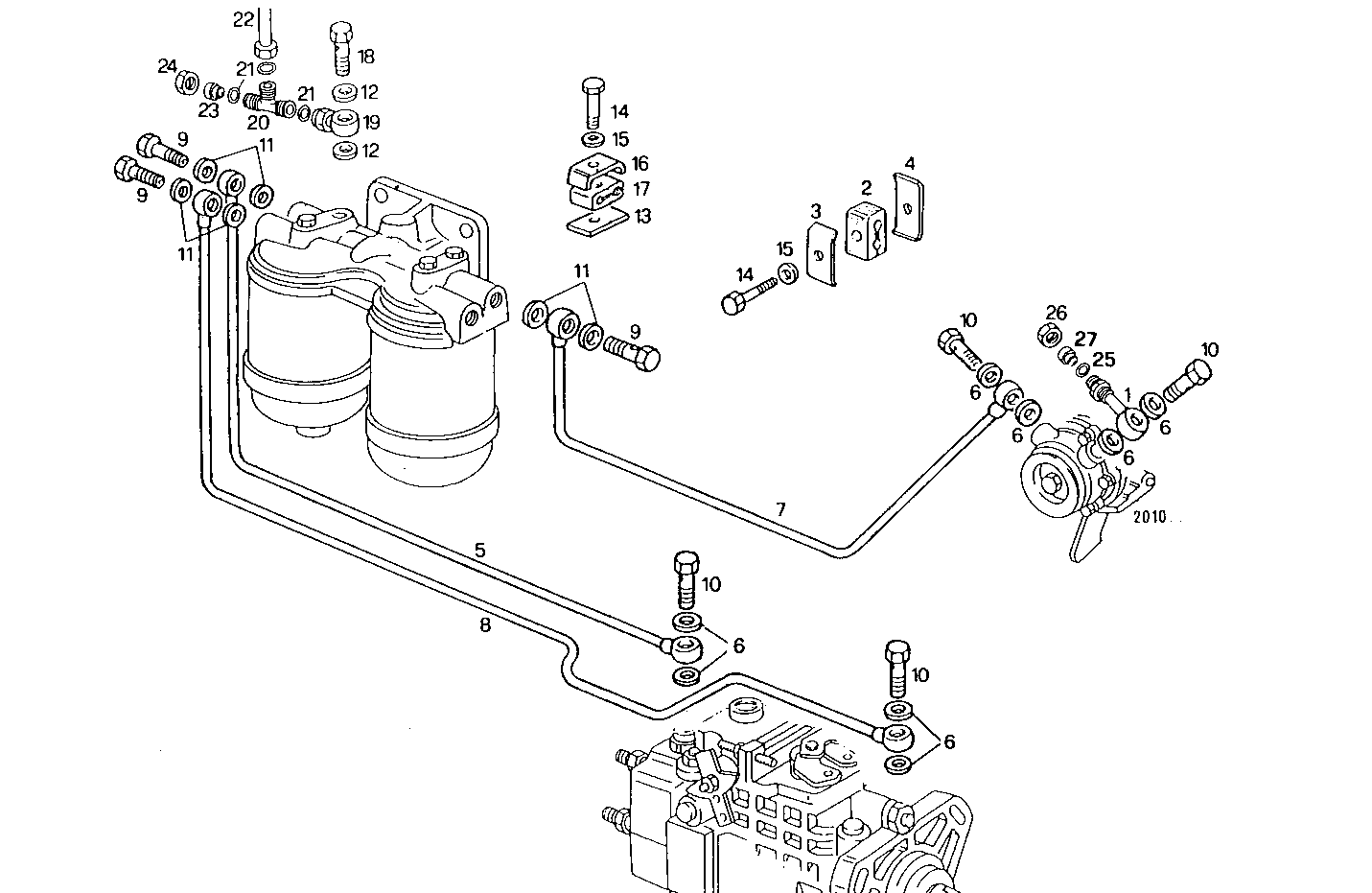

| Item |
Part number |
Description |
|
1 |
8029417 |
BANJO COUPLING |
|
2 |
4659217 |
DOWEL |
|
3 |
4659218 |
CLIP |
|
4 |
4659219 |
PLATE |
|
5 |
8029313 |
FUEL LINE |
|
6 |
4858607 |
WASHER Ø12X17 MM SP=1,5 MM |
|
7 |
8029276 |
FUEL LINE |
|
8 |
8029277 |
FUEL LINE |
|
9 |
4864083 |
SCREW CONNECTOR M14X1,5X30 MM |
|
10 |
4864082 |
BANJO BOLT M12X1,5X25 MM |
|
11 |
4858608 |
SEAL GASKET dia.14x19,5x1,5 |
|
12 |
4858606 |
GASKET Ø10X14X1 MM |
|
13 |
4659222 |
CLAMP |
|
14 |
16602324 |
HEXAGON BOLT M5X25 MM |
|
15 |
17798084 |
WASHER |
|
16 |
4659221 |
CLIP |
|
17 |
4659220 |
DOWEL |
|
18 |
98417535 |
SCREW CONNECTOR |
|
19 |
8029443 |
PIPE SOCKET |
|
20 |
16505114 |
T-COUPLING |
|
21 |
8024645 |
O-RING Ø4 MM |
|
22 |
8029452 |
FUEL LINE |
|
23 |
16507411 |
WASHER |
|
24 |
16506711 |
UNION NUT |
|
25 |
8024646 |
O-RING Ø6 MM |
|
26 |
16506811 |
NUT |
|
27 |
16507511 |
WASHER |
