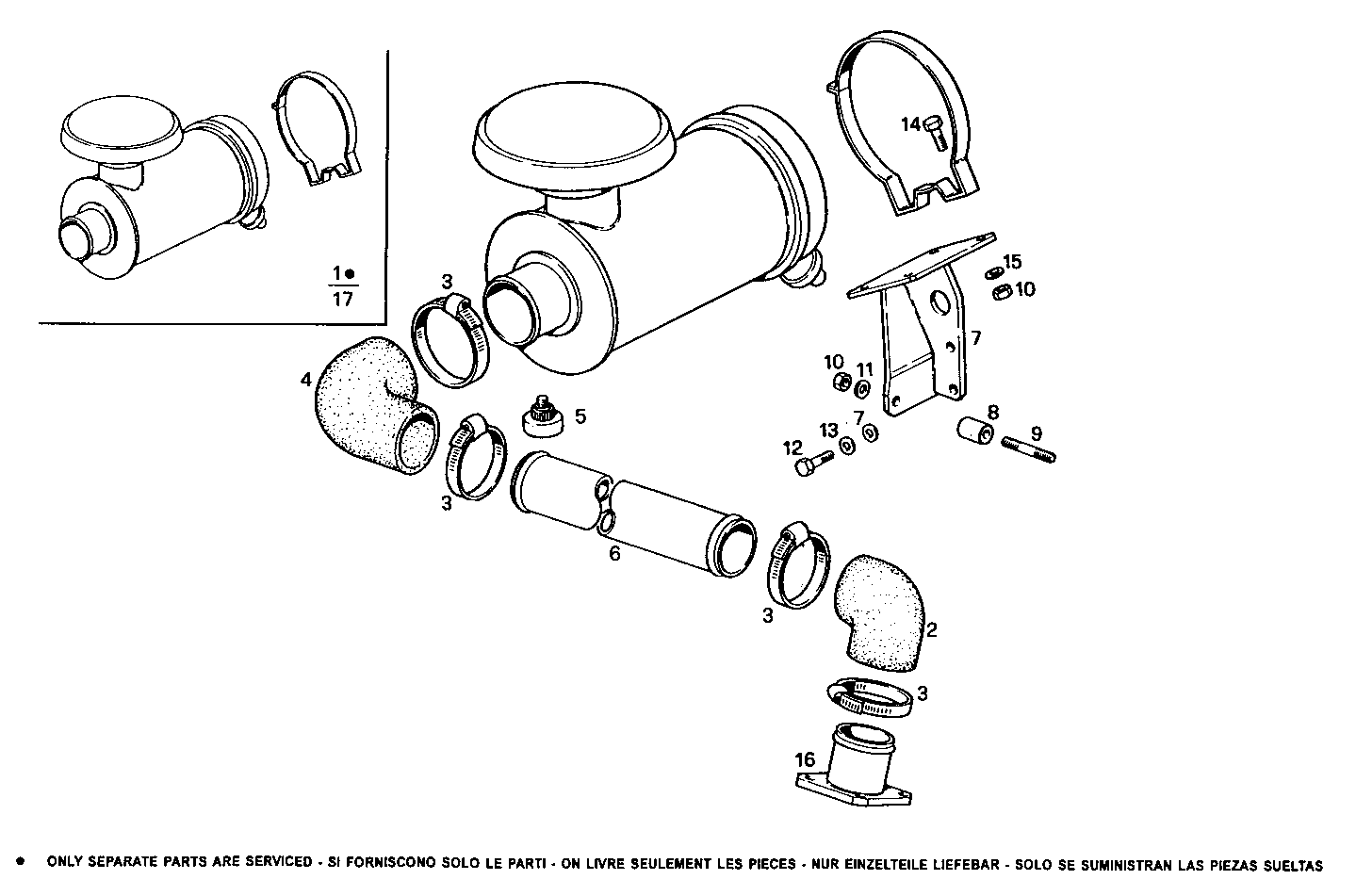

| Item |
Part number |
Description |
|
1 |
8013302 |
AIR CLEANER ASSY |
|
2 |
4919166 |
FILTER HOSE |
|
3 |
17765191 |
CLIP Ø70/90 MM |
|
4 |
8014520 |
RUBBER SLEEVE |
|
5 |
8027294 |
CHOCKED FILTER INDIC. MECHANICAL |
|
6 |
8014519 |
AIR PIPE/DUCT |
|
7 |
8014393 |
SUPPORT |
|
8 |
8104719 |
SPACING BAR |
|
9 |
16729524 |
STUD M8X1,25X30 |
|
10 |
17037931 |
HEXAGON NUT M8X1,25 |
|
11 |
17089774 |
SPRING WASHER Ø8,4X22 MM SP=2,4 MM |
|
12 |
15004021 |
HEXAGON BOLT M10X1,25X25 MM |
|
13 |
17090474 |
SPRING WASHER Ø10X27 MM SP=2,5 |
|
14 |
16605524 |
HEXAGON BOLT M8X20 MM |
|
15 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
16 |
4936561 |
AIR MANIFOLD |
|
17 |
8030339 |
AIR CLEANER ASSY [from 04-00] |
