8061M12.00

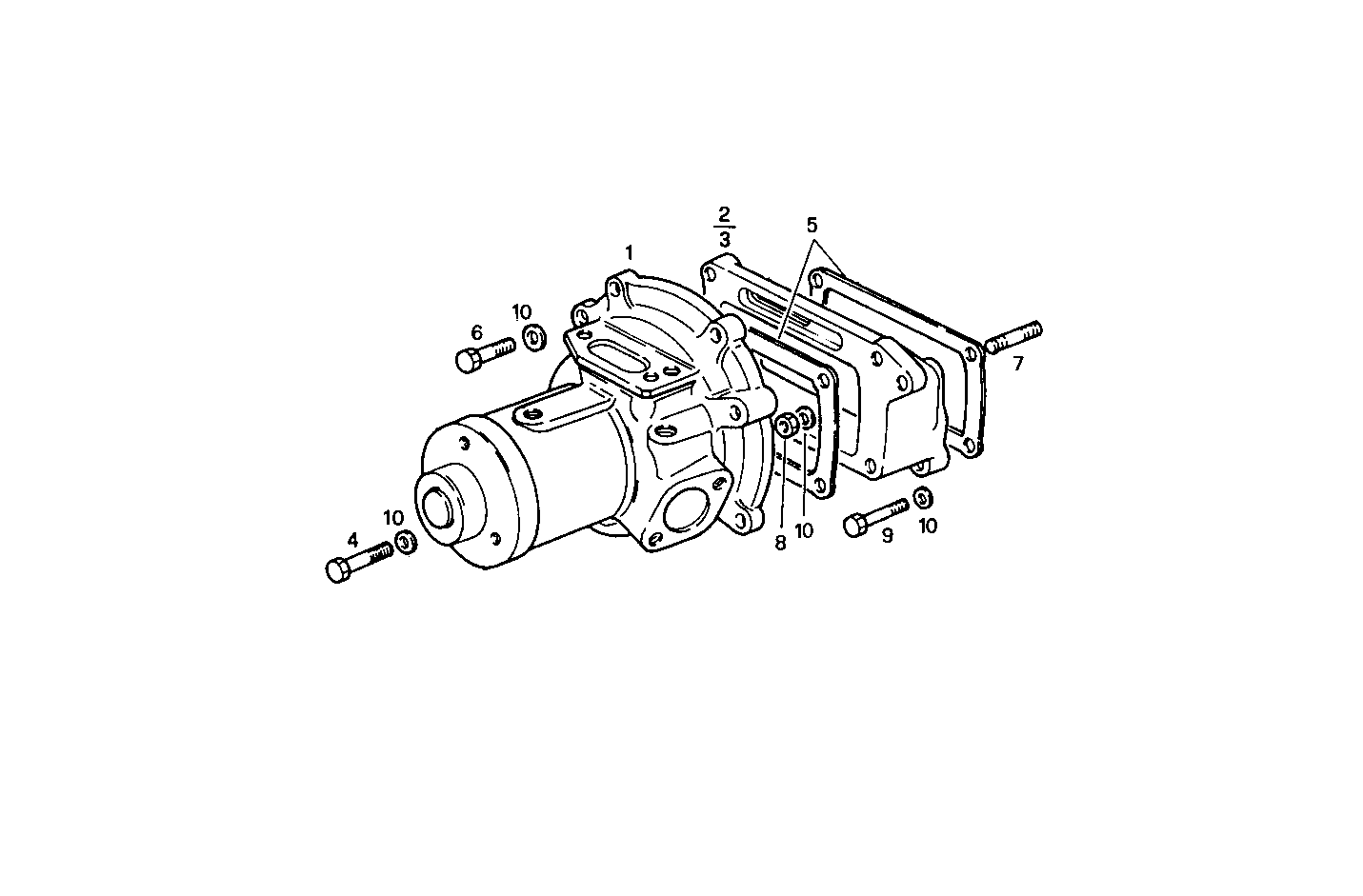

3200.095 WATER PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 4813370 | WATER PUMP ASSY [up to 657423] |
| 2 | 4647958 | SUPPORT ASSY [up to 02-97] |
| 3 | 4840211 | SUPPORT [from 02-97] |
| 4 | 10923624 | SCREW |
| 5 | 98400776 | FLAT ENGINE GASKET |
| 6 | 15888721 | HEXAGON BOLT M10X1,25X55 MM |
| 7 | 13449910 | STUD M10X1,25X40 MM |
| 8 | 12164740 | HEXAGON NUT M10X1,25 |
| 9 | 11234721 | HEXAGON BOLT M10X1,25X45 MM |
| 10 | 11190579 | SPRING WASHER Ø10X20 MM SP=2,3 |
