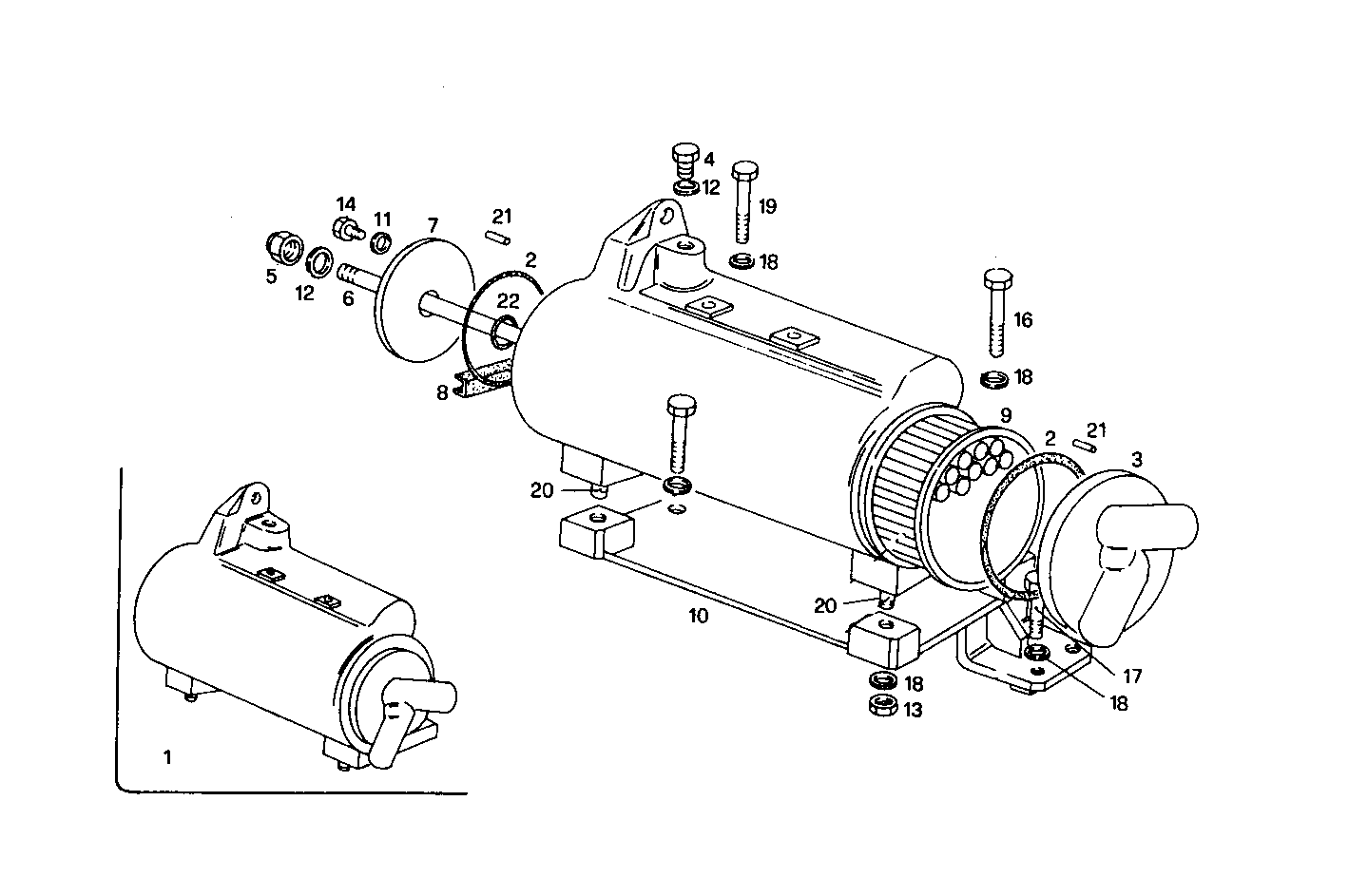

| Item |
Part number |
Description |
|
1 |
4933765 |
WATER/SEA WATER HEAT EXCH ASSY |
|
2 |
4918846 |
O-RING |
|
3 |
4927722 |
HEAT EXCHANG.COVER REAR |
|
4 |
11903240 |
PLUG M12 |
|
5 |
4918907 |
NUT |
|
6 |
4919239 |
TIE ROD |
|
7 |
4927723 |
HEAT EXCHANG.COVER FRONT |
|
8 |
4927193 |
GASKET |
|
9 |
4927719 |
TUBE STACK |
|
10 |
8106179 |
SUPPORT |
|
11 |
10284460 |
SEAL GASKET Ø10X16 MM |
|
12 |
10298460 |
SEAL GASKET Ø12X18 MM SP=1,5 MM |
|
13 |
10790111 |
HEXAGON NUT M10X1,25 |
|
14 |
11903140 |
PLUG M10X1,25 |
|
16 |
15971621 |
HEXAGON BOLT M10X1,25X90 MM |
|
16 |
11307021 |
HEXAGON BOLT M10X40 MM |
|
17 |
11306921 |
SCREW M10X1,25X30 |
|
18 |
11198379 |
SPRING WASHER Ø10X20 MM SP=2,6 |
|
19 |
11288021 |
HEXAGON BOLT M10X1,25X60 MM |
|
20 |
13449821 |
STUD M10X1,25X15 MM |
|
21 |
14158570 |
DOWEL PIN Ø2,3 MM |
|
22 |
14457181 |
O-RING Ø13,94 MM SP=2,62 MM |
