8061M12.00

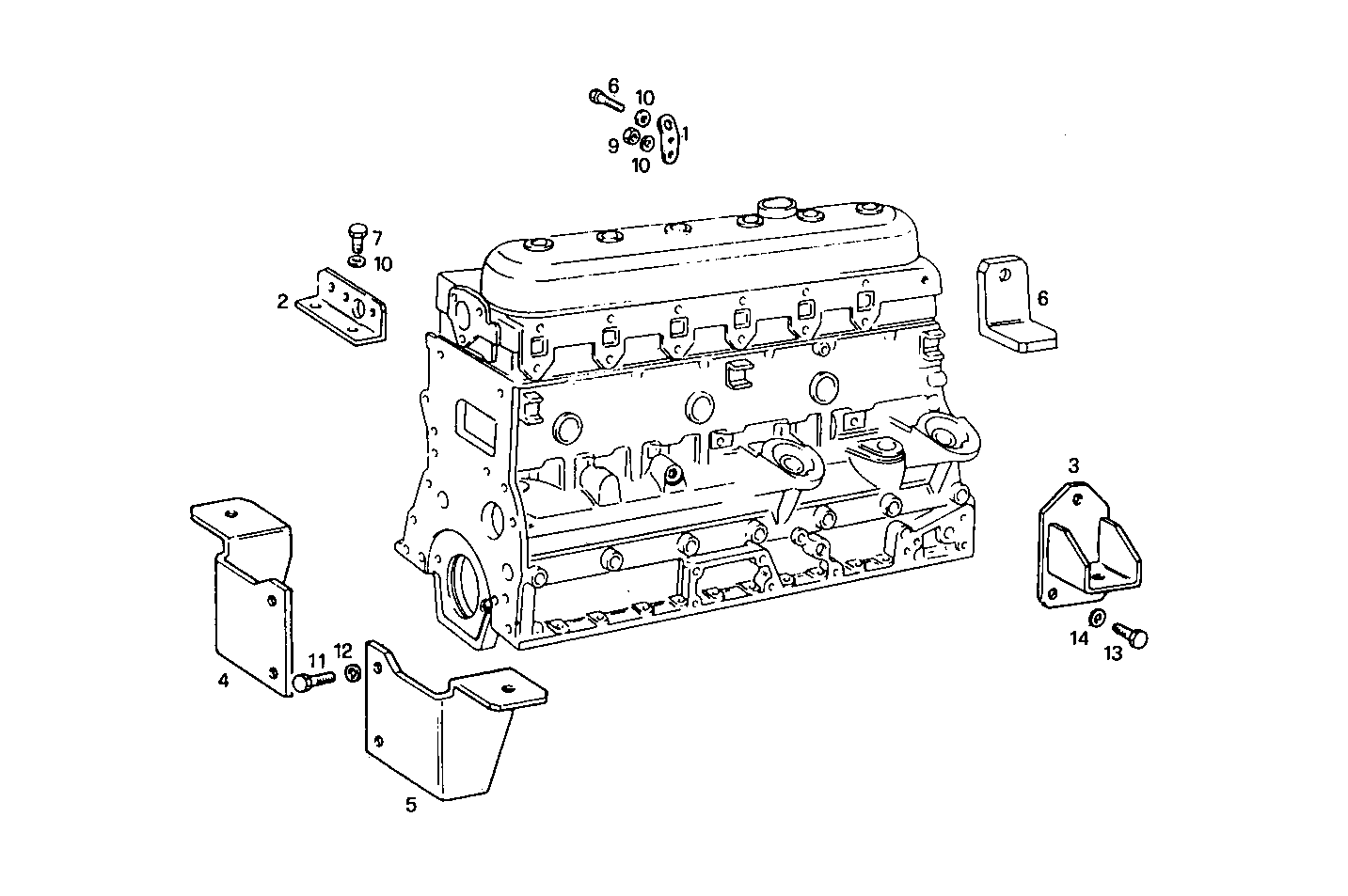

4500.017 ENGINE SUSPENSION
| Item | Part number | Description |
|---|---|---|
| 1 | 4695923 | HOOK |
| 2 | 4746561 | HOOK FRONT |
| 3 | 4928444 | ENGINE SUSPENSION REAR |
| 4 | 8106383 | ENGINE SUSPENSION RIGHT |
| 5 | 8106384 | ENGINE SUSPENSION LEFT |
| 6 | 8107429 | HOOK REAR - LEFT |
| 7 | 16043221 | HEXAGON BOLT M8X16 MM |
| 8 | 16044021 | HEXAGON BOLT M8X1,25X40 MM |
| 9 | 17037931 | HEXAGON NUT M8X1,25 |
| 10 | 11193879 | SPRING WASHER �8X16 MM |
| 11 | 11376221 | HEXAGON BOLT M16X1,5X35 MM |
| 12 | 11194279 | SPRING WASHER �17,4 MM |
| 13 | 15004021 | HEXAGON BOLT M10X1,25X25 MM |
| 14 | 11198371 | SPRING WASHER �10X20 MM |
