8061M12.00

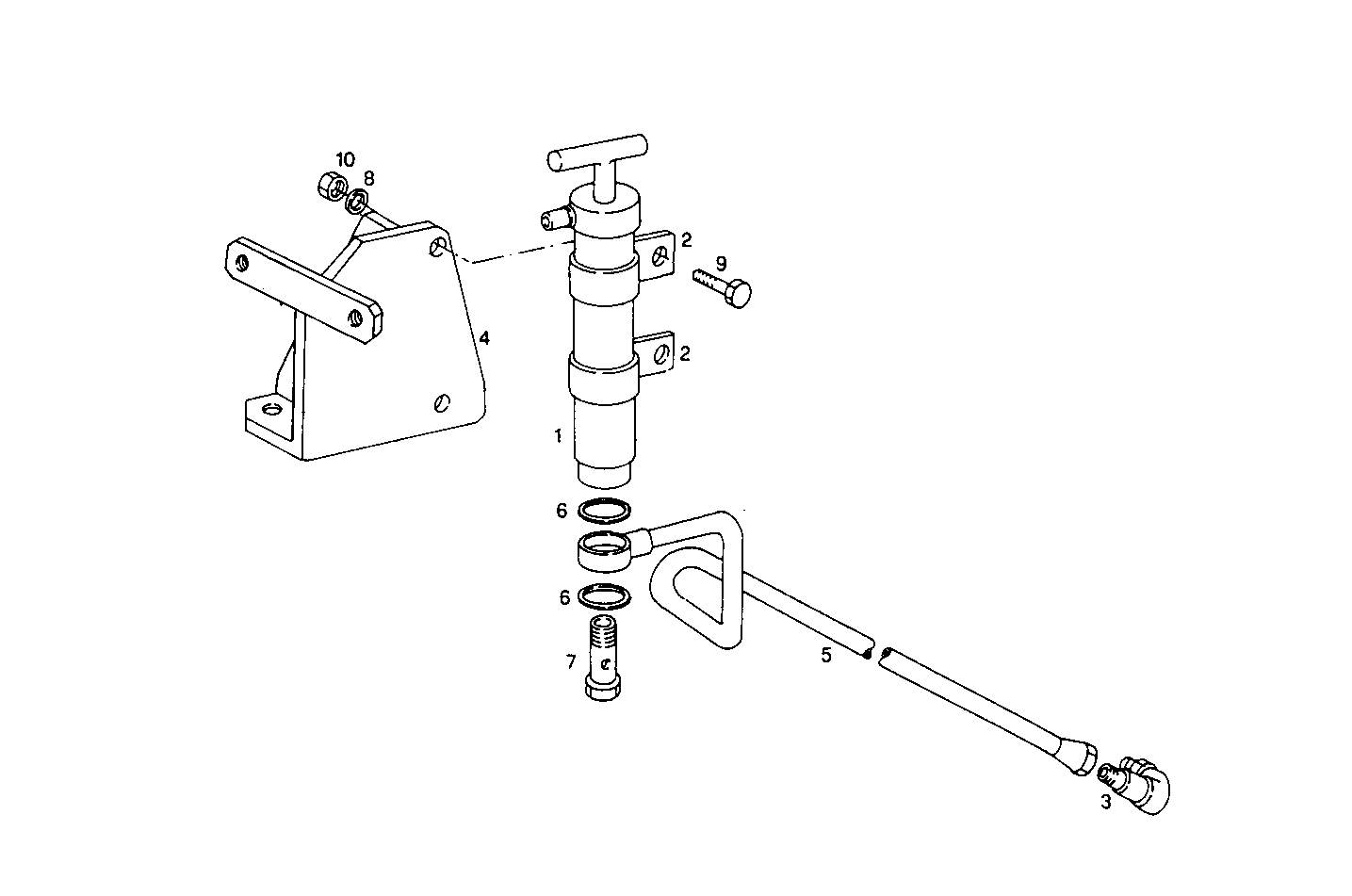

5510.033 OIL OUTLET PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 8019921 | HAND PUMP |
| 2 | 4928851 | CLIP |
| 3 | 4928527 | PIPE SOCKET |
| 4 | 8107211 | RETAINER [up to 02-95] |
| 5 | 8011624 | OIL LINE |
| 6 | 10257060 | SEAL GASKET Ø16X22 MM SP=1,5 MM |
| 7 | 10184411 | SCREW CONNECTOR M16X1,5 |
| 8 | 11193879 | SPRING WASHER Ø8X16 MM |
| 9 | 16043421 | HEXAGON BOLT M8X20 MM |
| 10 | 17037931 | HEXAGON NUT M8X1,25 |
