8061M12.00

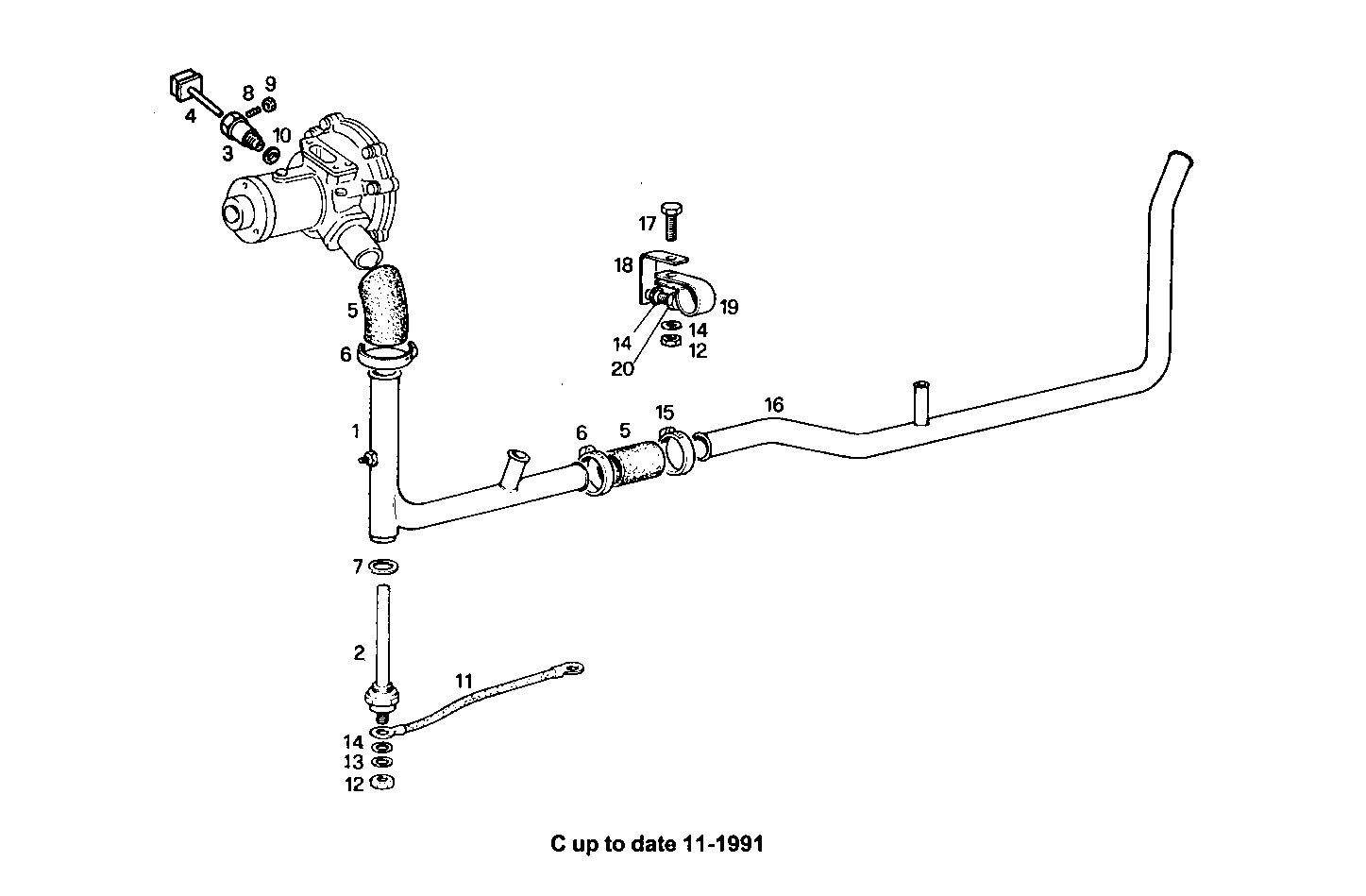

A20040016/01 WATER PREHEATER DEVICE - 220V
| Item |
Part number |
Description |
|
1 |
8108870 |
WATER PIPE |
|
2 |
8103356 |
HEATER |
|
3 |
4936182 |
SPACING BAR |
|
4 |
8102863 |
THERMOSTAT |
|
5 |
8813238 |
WATER HOSE |
|
6 |
12177090 |
CLIP �32-52 MM |
|
7 |
10264660 |
SEAL GASKET �26,3 MM |
|
8 |
10373614 |
SCREW |
|
9 |
16101714 |
NUT |
|
10 |
10257050 |
SEAL GASKET �16,2 MM |
|
11 |
8106705 |
EARTH WIRE |
|
12 |
17037931 |
HEXAGON NUT M8X1,25 |
|
13 |
14496501 |
WASHER �8,5 MM |
|
14 |
11194071 |
WASHER �8X16X1,9 MM |
|
16 |
8108871 |
WATER PIPE |
|
17 |
16043521 |
SCREW M8X22 |
|
18 |
4934319 |
RETAINER |
|
19 |
4936741 |
CLIP |
|
20 |
16043124 |
SCREW M8X14 MM |
