8061M12.00

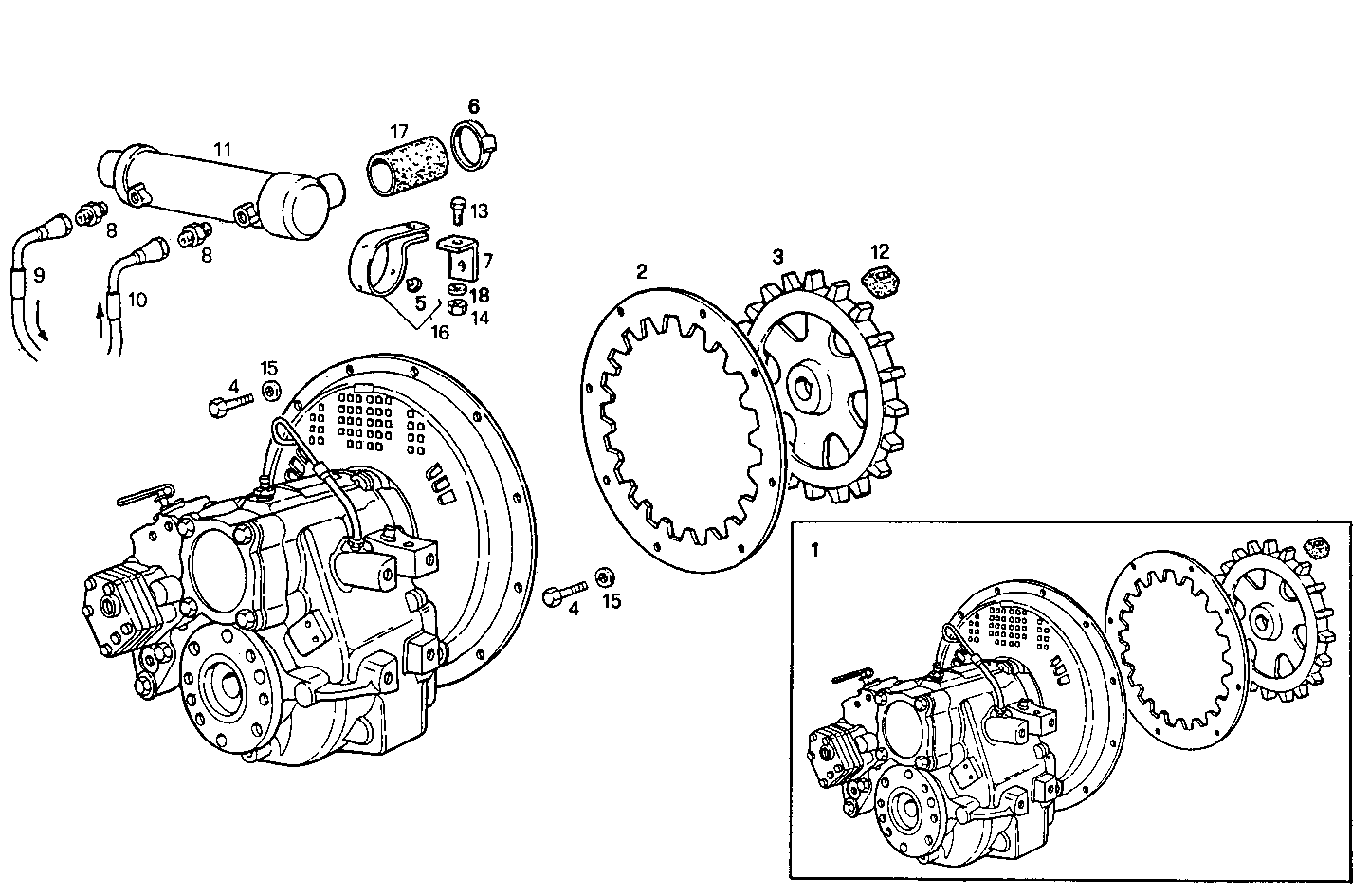

A51920003 MARINE GEAR TWIN DISC MG 5050 - ratio 2.04:1
| Item | Part number | Description |
|---|---|---|
| 1 | 8006209 | MARINE GEAR 2,04:1 |
| 2 | 8007789 | FLANGE |
| 3 | 8007790 | UNIVERSAL JOINT |
| 4 | 11306921 | SCREW M10X1,25X30 |
| 5 | 4568427 | RUBBER PAD |
| 6 | 17764793 | CLIP Ø32/50 MM |
| 7 | 4919720 | RETAINER |
| 8 | 4935465 | PIPE SOCKET |
| 9 | 4935779 | HOSE |
| 10 | 4936603 | OIL HOSE |
| 11 | 4918188 | MARINE GEAR OIL HEAT EXCH ASSY |
| 12 | 4932462 | DOWEL |
| 13 | 15004021 | HEXAGON BOLT M10X1,25X25 MM |
| 14 | 12164711 | HEXAGON NUT M10X1,25 |
| 15 | 17090174 | SPRING WASHER Ø10X20 MM |
| 16 | 8013591 | CLIP ASSY [up to 06-93] |
| 17 | 10136187 | RUBBER SLEEVE |
