8061M12.12

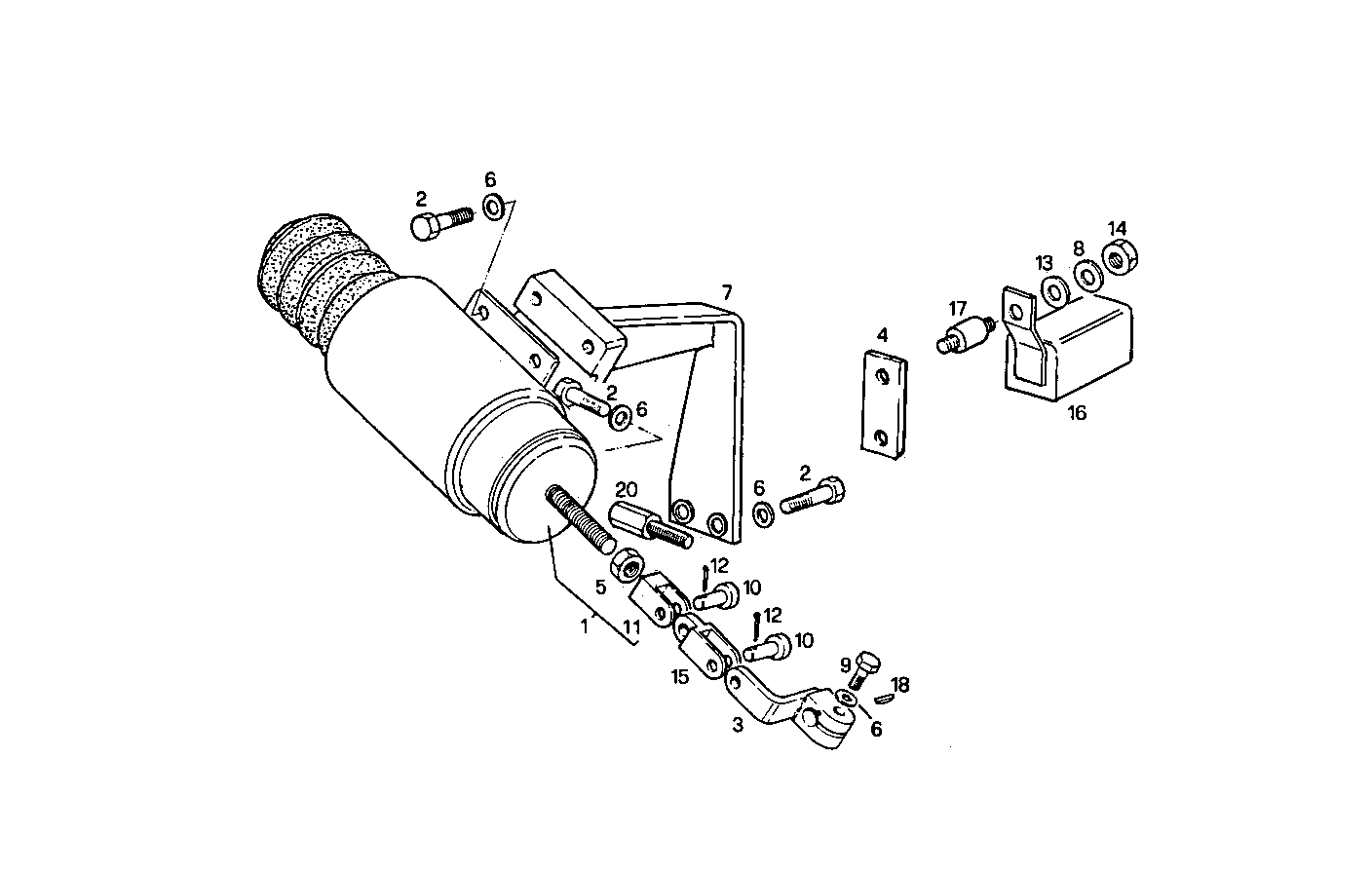

5650.017 ELECTRIC STOP ENGINE
| Item |
Part number |
Description |
|
1 |
8110899 |
SOLENOID ASSY 12V |
|
2 |
10902221 |
HEXAGON BOLT M6X16 MM |
|
3 |
8110753 |
LEVER |
|
4 |
8006517 |
RETAINER [up to 05-95] |
|
5 |
15896211 |
HEXAGON NUT M6 |
|
6 |
17088474 |
WASHER �6X12 MM |
|
7 |
8110754 |
SUPPORT [up to 12-90] |
|
8 |
17494631 |
SPRING WASHER �5 MM |
|
9 |
10977721 |
HEXAGON BOLT M5X14 MM |
|
10 |
17718411 |
PIN �5 MM |
|
11 |
8109159 |
CLEVIS M6X40 |
|
12 |
10734101 |
SPLIT PIN �1,3 MM |
|
13 |
17094504 |
WASHER �5,3X10 MM |
|
14 |
15896411 |
HEXAGON NUT M5 |
|
15 |
8108833 |
CLEVIS |
|
16 |
8109522 |
RELAY STOP |
|
17 |
8105105 |
DOWEL |
|
18 |
1136607 |
KEY |
|
20 |
8110818 |
SPACING BAR |
