8061M14.01

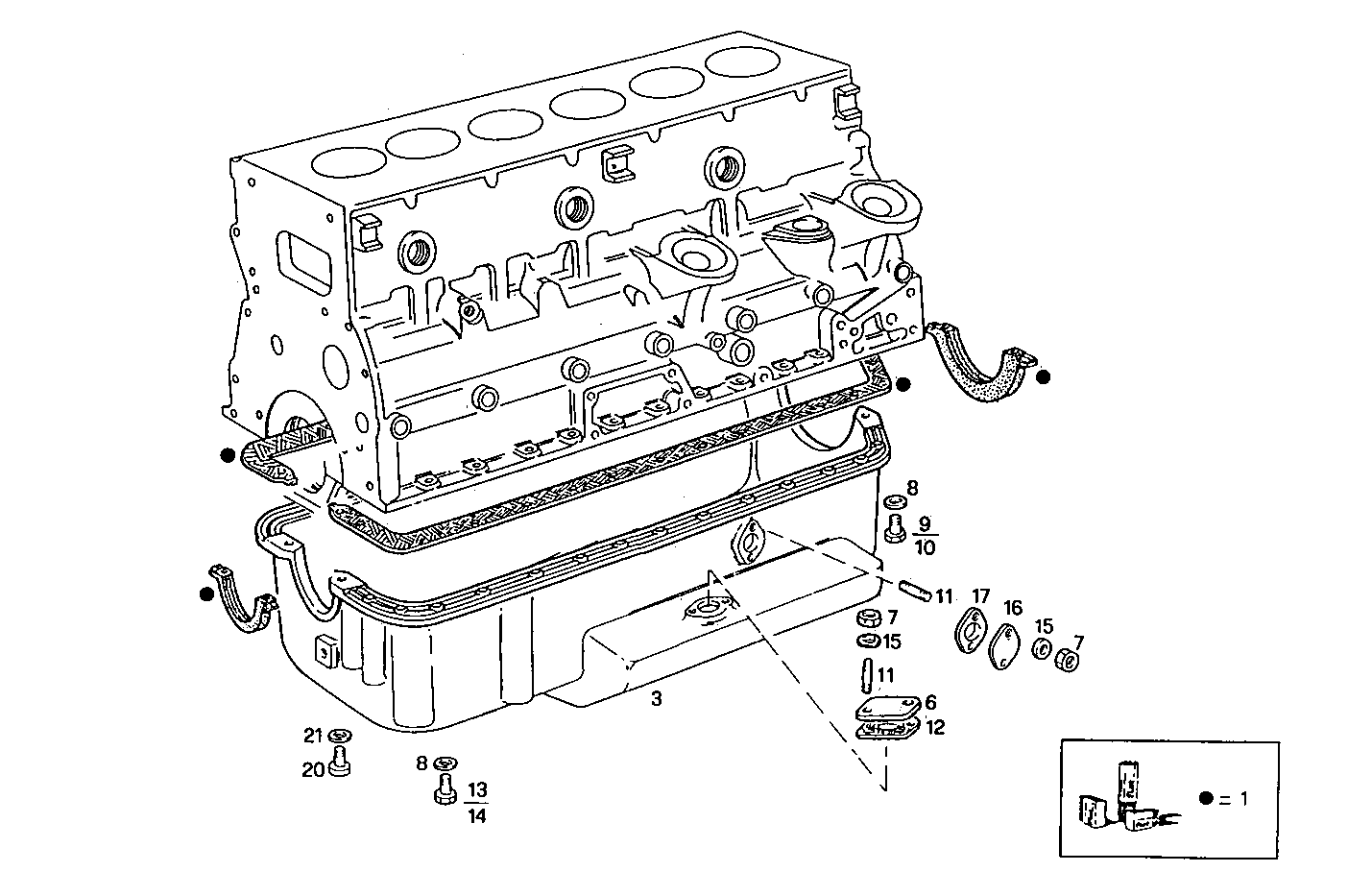

0420.026 OIL SUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 1907561 | KIT-OILSUMP GASKET |
| 3 | 8018048 | OIL SUMP ASSY |
| 6 | 4798806 | COVER |
| 7 | 17037931 | HEXAGON NUT M8X1,25 |
| 8 | 17095104 | WASHER Ø10X21X2 MM |
| 9 | 10923621 | HEXAGON BOLT M10X1,25X35 MM |
| 10 | 11343824 | HEXAGON BOLT M10X1,25X50 MM |
| 11 | 16744621 | STUD |
| 12 | 4852556 | FLAT ENGINE GASKET |
| 13 | 15971824 | SCREW M10X1,25X100 |
| 14 | 15970924 | HEXAGON BOLT M10X1,25X35 MM |
| 15 | 11198371 | SPRING WASHER Ø10X20 MM |
| 16 | 4798805 | COVER |
| 17 | 4630672 | FLAT ENGINE GASKET |
| 20 | 14308124 | SCREW |
| 21 | 17095004 | WASHER Ø10X18X2 MM |
