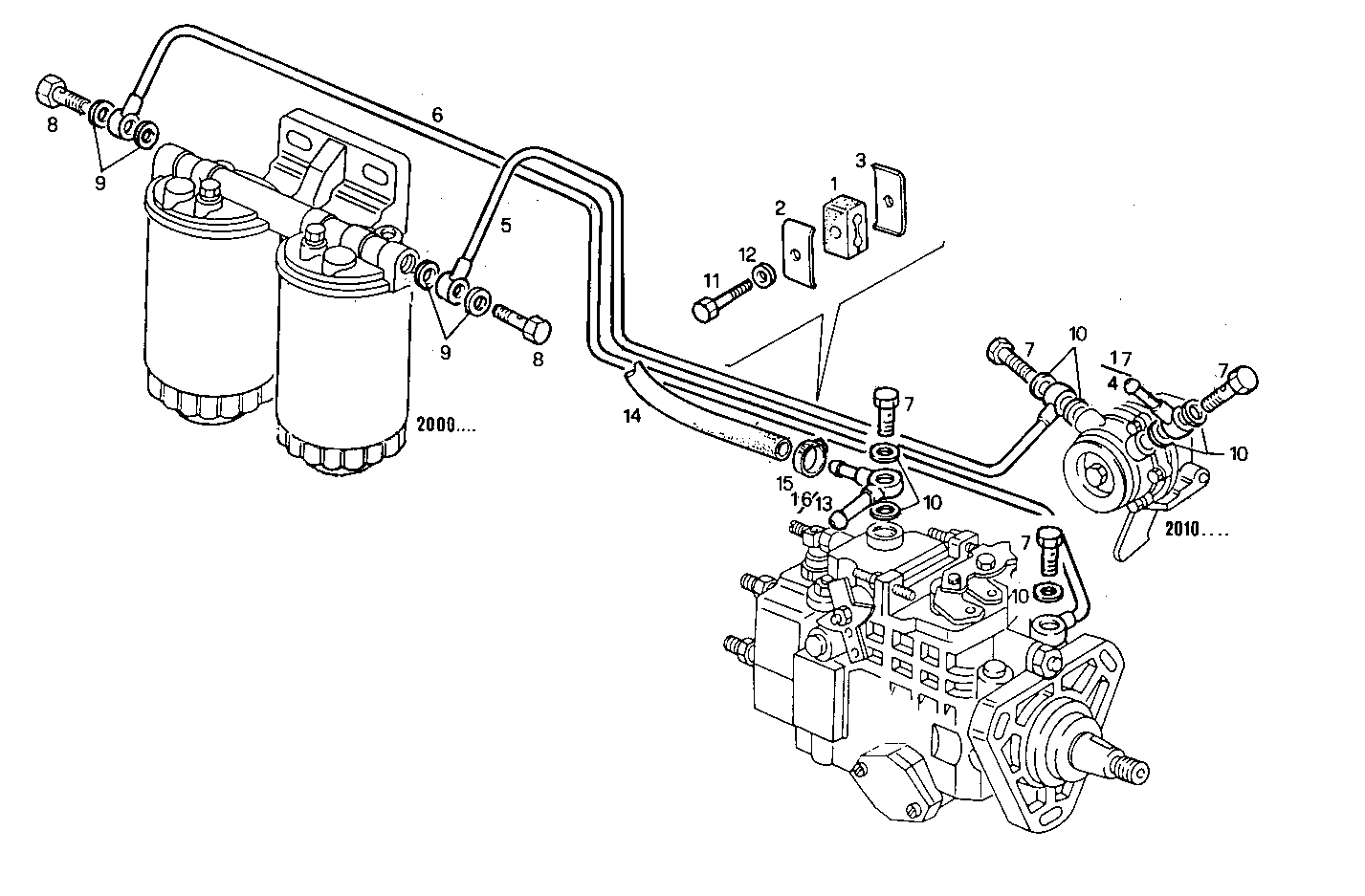

| Item |
Part number |
Description |
|
1 |
4659217 |
DOWEL |
|
2 |
4659218 |
CLIP |
|
3 |
4659219 |
PLATE |
|
4 |
4802434 |
THREADED UNION M12X1,5 |
|
5 |
98419940 |
FUEL LINE |
|
6 |
98419873 |
FUEL LINE |
|
7 |
4864082 |
BANJO BOLT M12X1,5X25 MM |
|
8 |
4864083 |
SCREW CONNECTOR M14X1,5X30 MM |
|
9 |
4858608 |
SEAL GASKET dia.14x19,5x1,5 |
|
10 |
4858607 |
WASHER Ø12X17 MM SP=1,5 MM |
|
11 |
10978221 |
HEXAGON BOLT M5X25 MM |
|
12 |
11195470 |
SPRING WASHER Ø5,3 MM |
|
13 |
4789860 |
BANJO COUPLING 1C [up to 31-08-02] |
|
14 |
17724587 |
RUBBER HOSE Ø7,5X14,5 MM |
|
15 |
18088192 |
CLIP m10-16 |
|
16 |
8034088 |
BANJO COUPLING D [from 01-09-02] |
|
17 |
8034077 |
PIPE SOCKET [from 21-05-03] |
