8061M14.42

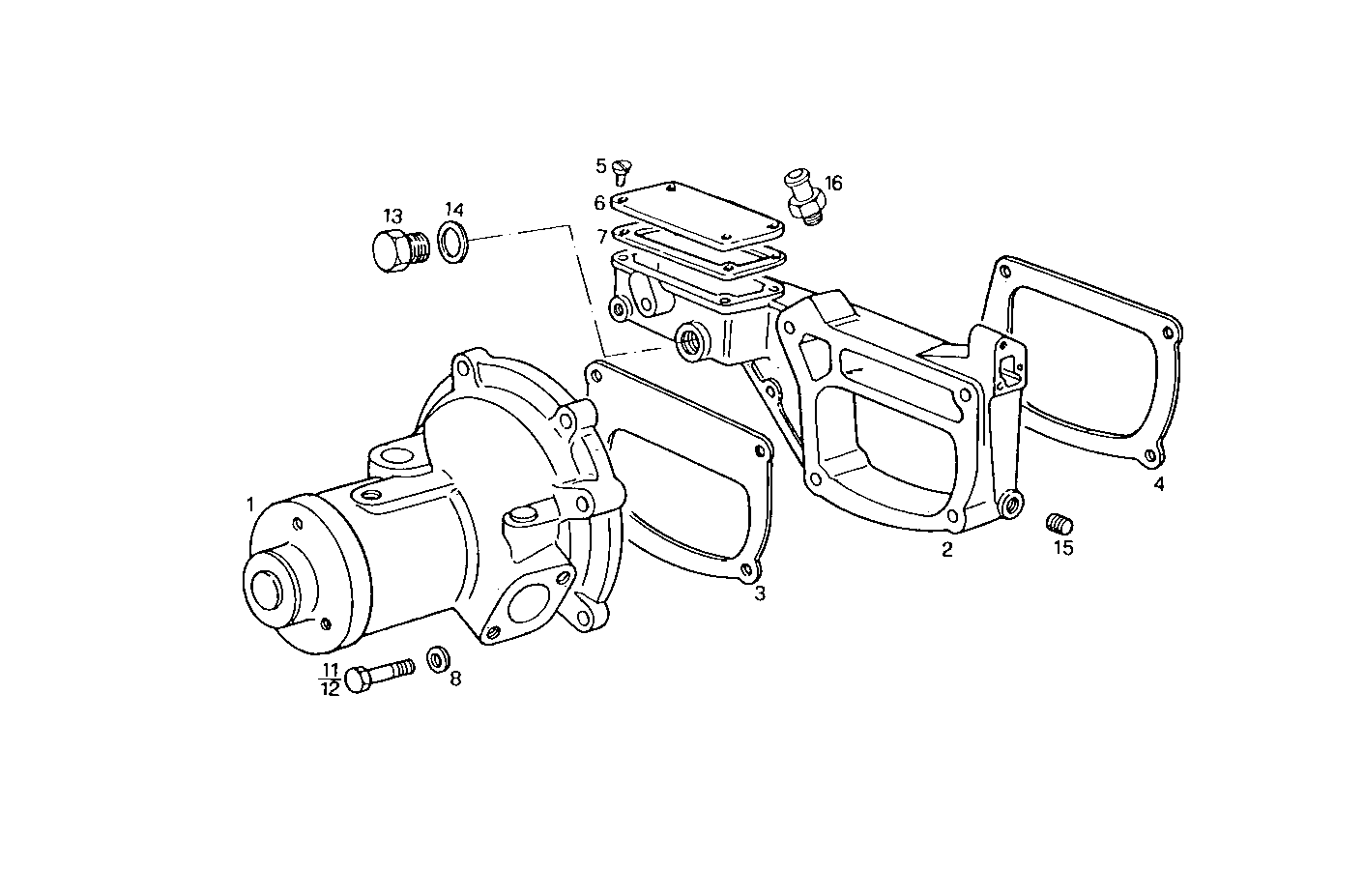

3200.093 WATER PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 98497118 | WATER PUMP ASSY |
| 2 | 4801652 | SUPPORT |
| 3 | 98400776 | FLAT ENGINE GASKET |
| 4 | 98400779 | FLAT ENGINE GASKET |
| 5 | 18023614 | SCREW M8X14 |
| 6 | 4919302 | COVER |
| 7 | 98400783 | FLAT ENGINE GASKET |
| 8 | 11190571 | SPRING WASHER Ø10X20 MM SP=2,3 |
| 11 | 15971521 | HEXAGON BOLT M10X85 MM |
| 12 | 15972021 | HEXAGON BOLT M10X1,25X110 MM |
| 13 | 16992440 | THREADED PLUG M16X1,5 |
| 14 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
| 15 | 16997411 | THREADED PLUG M16X1,5 |
| 16 | 4616630 | THREADED UNION |
