8061Si05.05

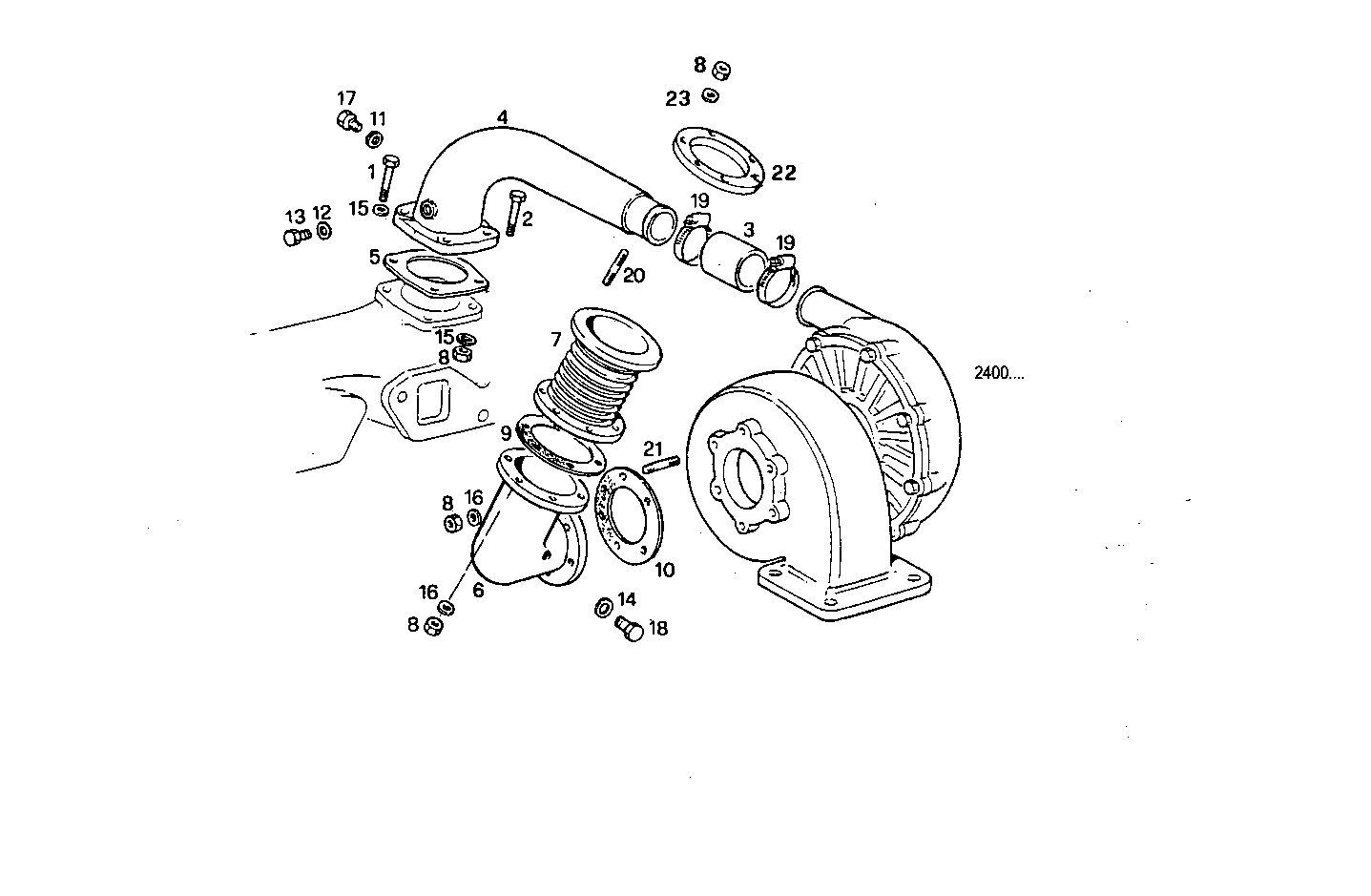

2420.025 SUPERCHARGING LINES

Iveco/FPT SUPERCHARGING LINES

Item Part number Description
1 16605734 HEXAGON BOLT M8X30 MM
2 16605924 SCREW M8X40 MM
3 98421377 RUBBER SLEEVE Ø51 MM
4 4754495 INTAKE ELBOW
5 98400790 FLAT ENGINE GASKET
6 4935794 EXHAUST ELBOW
7 4935378 EXHAUST BELLOWS
8 17037931 HEXAGON NUT M8X1,25
9 8009606 GASKET
10 8009733 GASKET
11 4858606 GASKET Ø10X14X1 MM
12 10263460 WASHER Ø22X28X1,5 MM
13 16992611 THREADED PLUG M22X1,5
14 4858607 WASHER Ø12X17 MM SP=1,5 MM
15 17094914 WASHER 8x16
16 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
17 11903111 LOCK PLUG M10X1,25
18 16992211 THREADED PLUG M12X1,5
19 4788416 CLIP
20 13516921 STUD M8X12X22 MM
21 16729424 STUD M8X1,25X25
22 4919183 FLANGE
23 16665514 WASHER Ø8 MM
