8061Si06.05

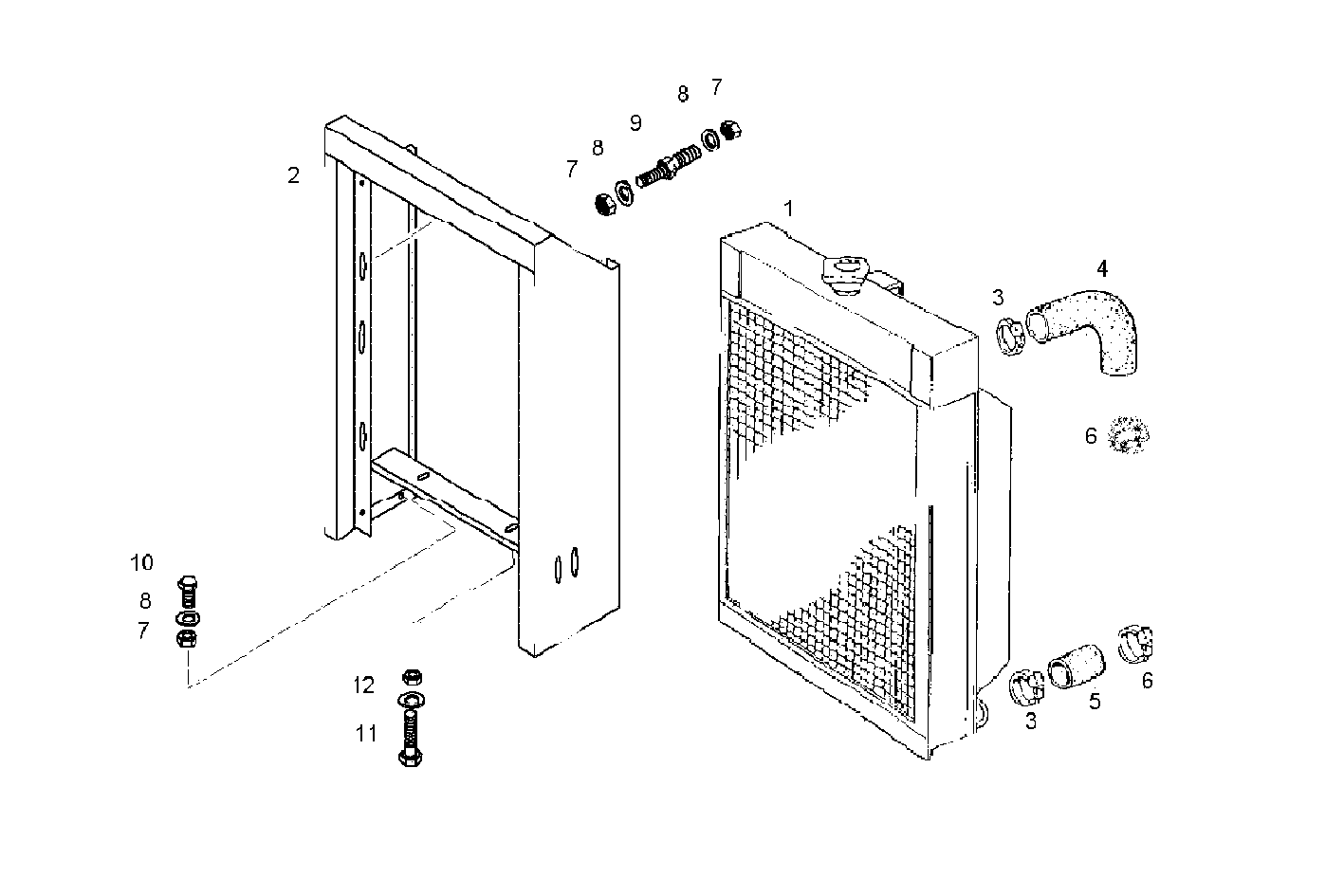

A22010074 RADIATOR
| Item | Part number | Description |
|---|---|---|
| 1 | 503110058 | WATER RADIATOR |
| 2 | 8030595 | SUPPORT |
| 3 | 17764991 | CLIP �50/70 MM |
| 4 | 8024770 | RUBBER SLEEVE |
| 5 | 4951318 | RUBBER SLEEVE �45/50 MM |
| 6 | 17764892 | PIPE CLIP �40-60 MM |
| 7 | 17037821 | HEXAGON NUT M6X1 |
| 8 | 17088474 | WASHER �6X12 MM |
| 9 | 503110655 | SPACING BAR |
| 10 | 16603677 | HEXAGON BOLT M6X16 MM |
| 11 | 16607434 | HEXAGON BOLT M10X16 MM |
| 12 | 17090474 | SPRING WASHER �10X27 MM SP=2,5 |
| 13 | 17038125 | NUT M10 |
