8061Si06.05

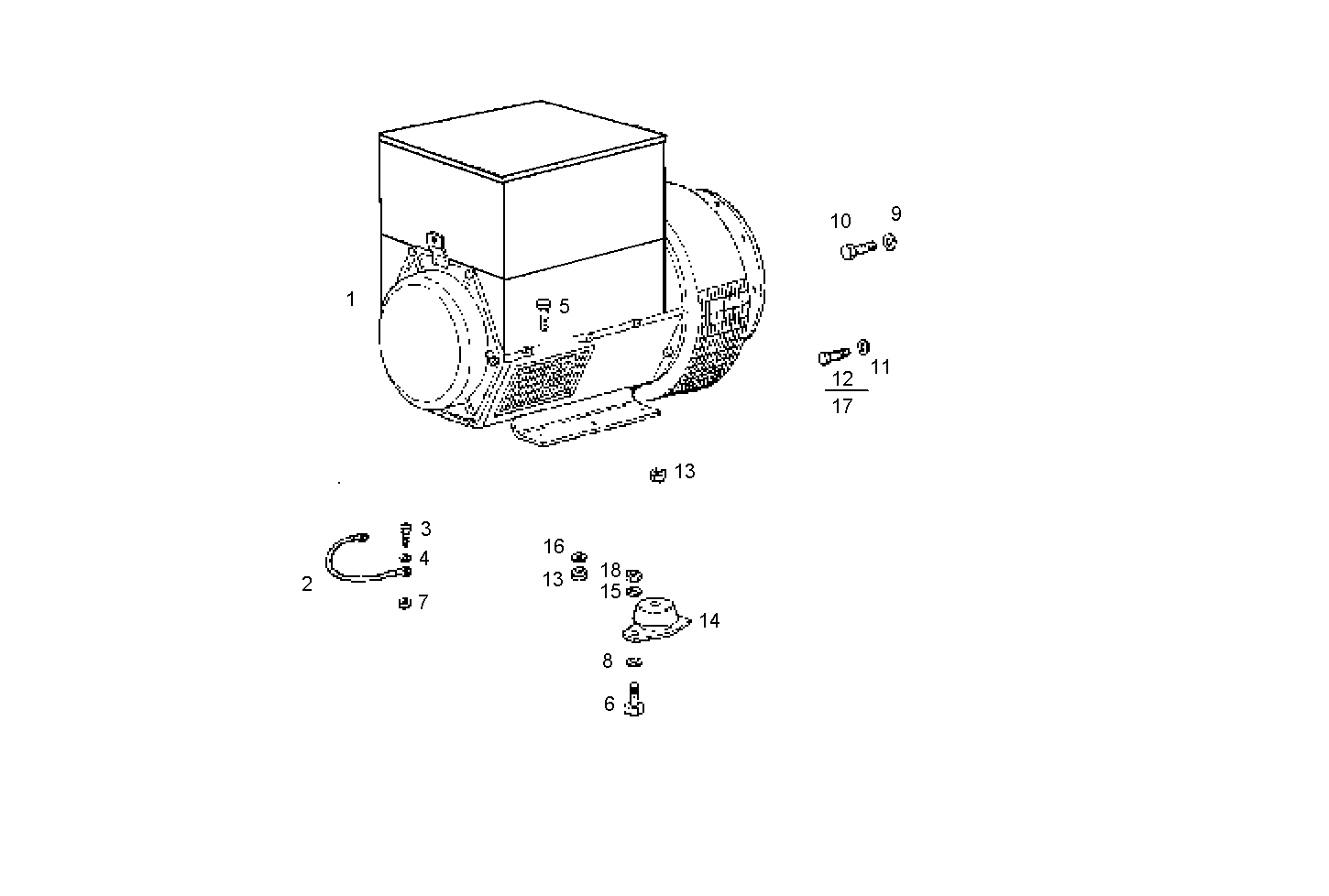

A37010081 ELECTRIC MACHINE - STAMFORD

Iveco/FPT ELECTRIC MACHINE

Item Part number Description
1 8020805 ELECTRIC MACHINE UCD 224 G 16 50-60HZ [from 05-95]
2 8110852 EARTH WIRE
3 16605424 SCREW M8X16 MM (8.8)
4 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
5 16614724 SCREW M16X45
6 16607625 SCREW M10X25
7 17037925 HEXAGON NUT M8X1,25
8 17094104 WASHER Ø3X7 MM
9 17494934 WASHER Ø10X18,1X2,2 MM
10 15970524 HEXAGON BOLT M10X1,25X20
11 17090174 SPRING WASHER Ø10X20 MM
12 16607824 HEXAGON BOLT M10X35 MM (8.8)
13 17038931 HEXAGON NUT M16X2
14 4911960 RUBBER PAD
15 17090974 SPRING WASHER Ø12X24 MM
16 17092174 SPRING WASHER Ø16X32X3,4
17 16608024 HEXAGON BOLT M10X1,25X45 MM
18 17038131 HEXAGON NUT M10
