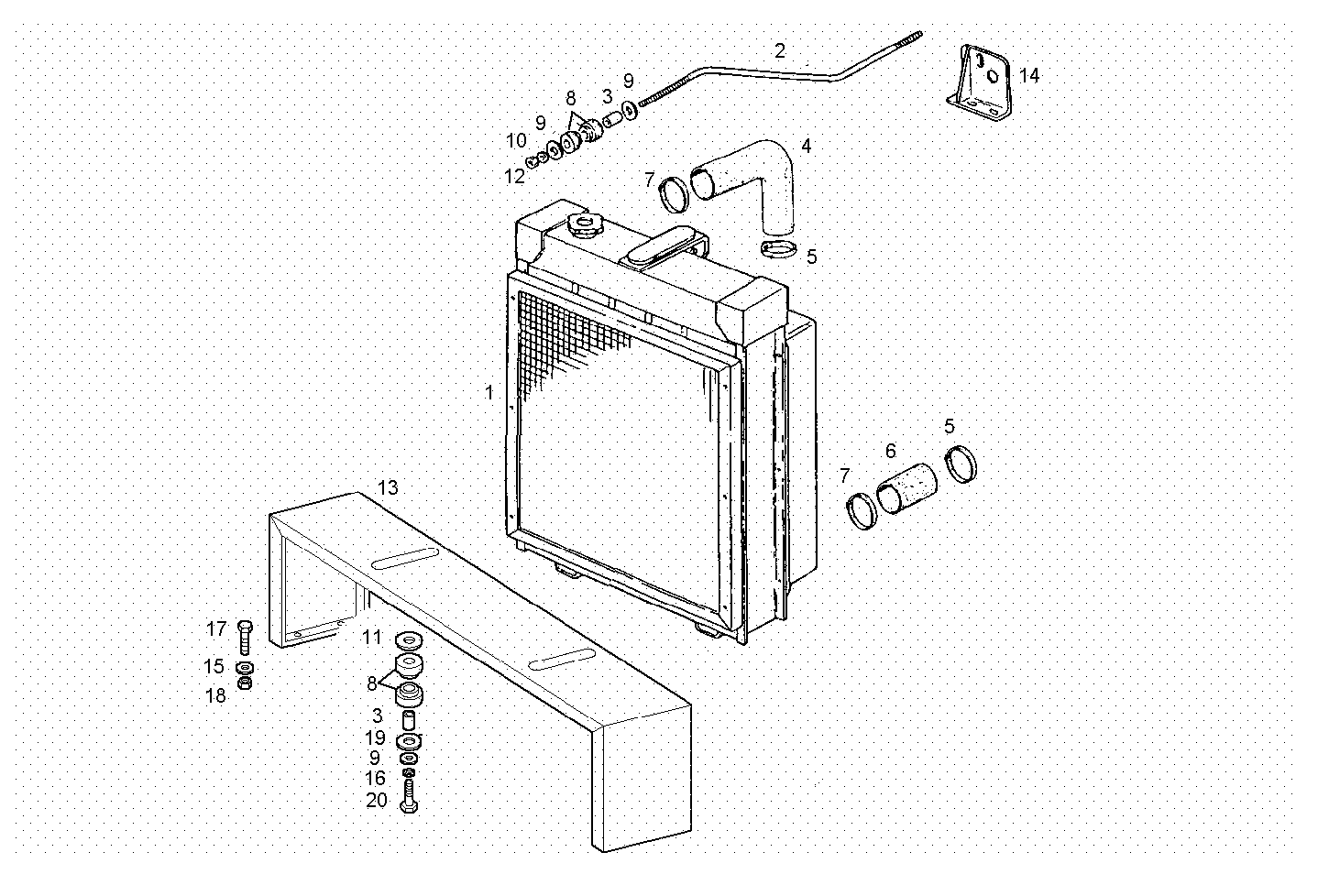

| Item |
Part number |
Description |
|
1 |
8038540 |
WATER RADIATOR OPT. |
|
1 |
8020420 |
WATER RADIATOR OPT. |
|
2 |
8024388 |
TIE ROD |
|
3 |
8108634 |
SPACING BAR |
|
4 |
8024770 |
RUBBER SLEEVE |
|
5 |
17764892 |
PIPE CLIP Ø40-60 MM |
|
6 |
4951318 |
RUBBER SLEEVE Ø45/50 MM |
|
7 |
17764991 |
CLIP Ø50/70 MM |
|
8 |
741569 |
RUBBER LUG |
|
9 |
741570 |
WASHER Ø10X17 MM SP=2,3 |
|
10 |
17091374 |
SPRING WASHER Ø12X30X3,0 MM |
|
11 |
17038131 |
HEXAGON NUT M10 |
|
12 |
17038425 |
HEXAGON NUT M12 (8) |
|
13 |
503110171 |
SUPPORT |
|
14 |
8020521 |
RETAINER |
|
15 |
17088474 |
WASHER Ø6X12 MM |
|
16 |
17096050 |
WASHER Ø20X37 MM |
|
17 |
16603624 |
HEXAGON BOLT M6X16 MM (8.8) |
|
18 |
17037821 |
HEXAGON NUT M6X1 |
|
19 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
20 |
16608525 |
HEXAGON BOLT M10X1,5X70 MM (8.8) |
