8061Si07.05A552

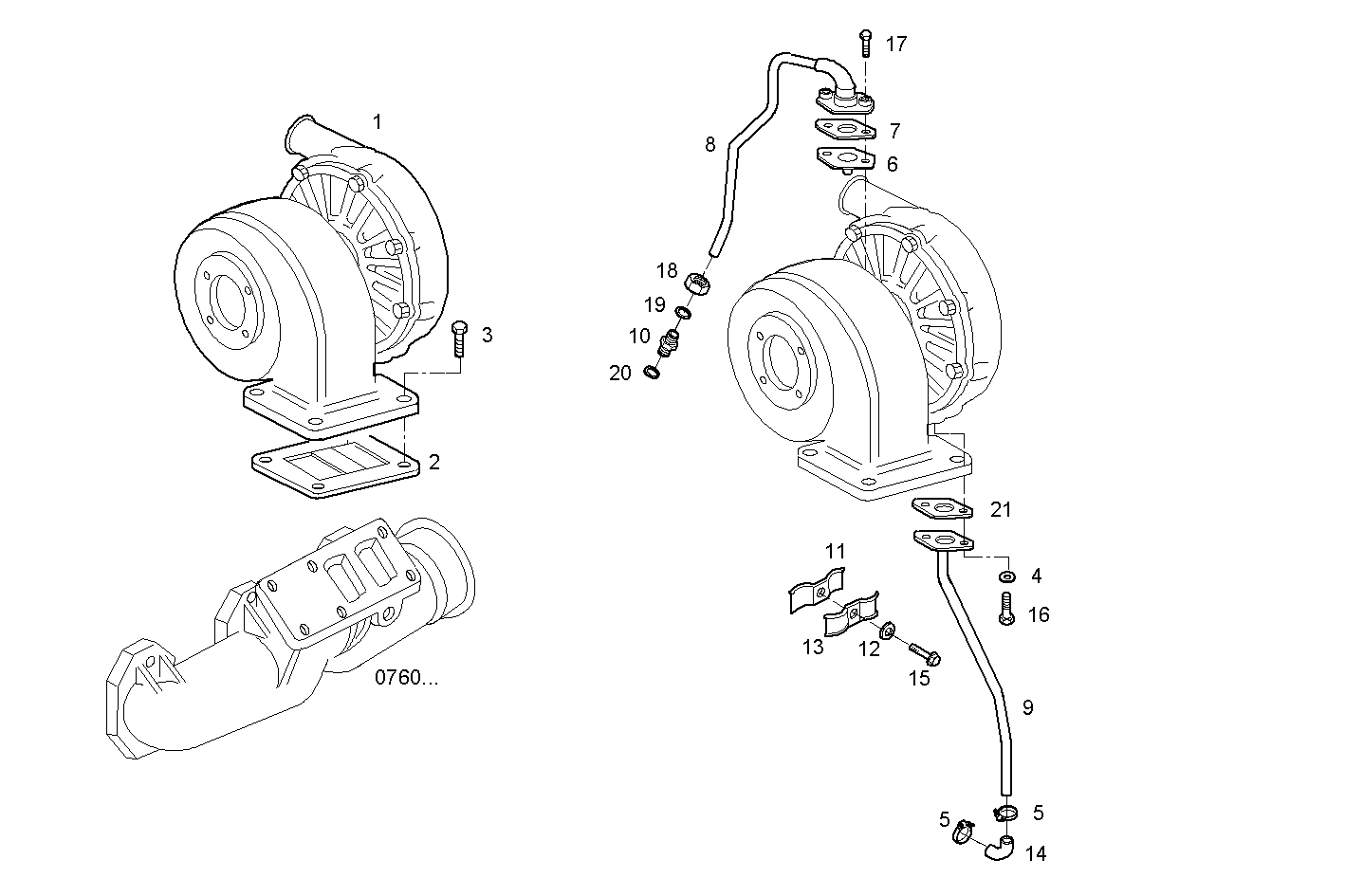

2400.225 TURBOCHARGER

Iveco/FPT TURBOCHARGER

Item Part number Description
1 504120383 TURBOCHARGER garrett
2 98428396 FLAT ENGINE GASKET
3 98491312 HEXAGON BOLT
4 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
5 17764594 HOSE CLIP
6 98415922 FLAT ENGINE GASKET
7 98482093 GASKET
8 4772720 OIL LINE INNER
9 500326275 OIL LINE OUTER
10 16500315 THREADED UNION M16X1,5 - M18X1,5
11 4755435 RETAINER
12 17798174 SPRING WASHER Ø6,1X11,8 MM
13 4755436 RETAINER
14 98421373 RUBBER SLEEVE
15 16603734 HEXAGON BOLT M6X20 MM
16 16605624 HEXAGON BOLT M8X25 MM (8.8)
17 16605824 HEXAGON BOLT M8X35 MM
18 16506915 NUT M18X1,5
19 16507614 WASHER
20 16508260 WASHER Ø16X20 MM
21 98401046 FLAT ENGINE GASKET
