8061Si11.05

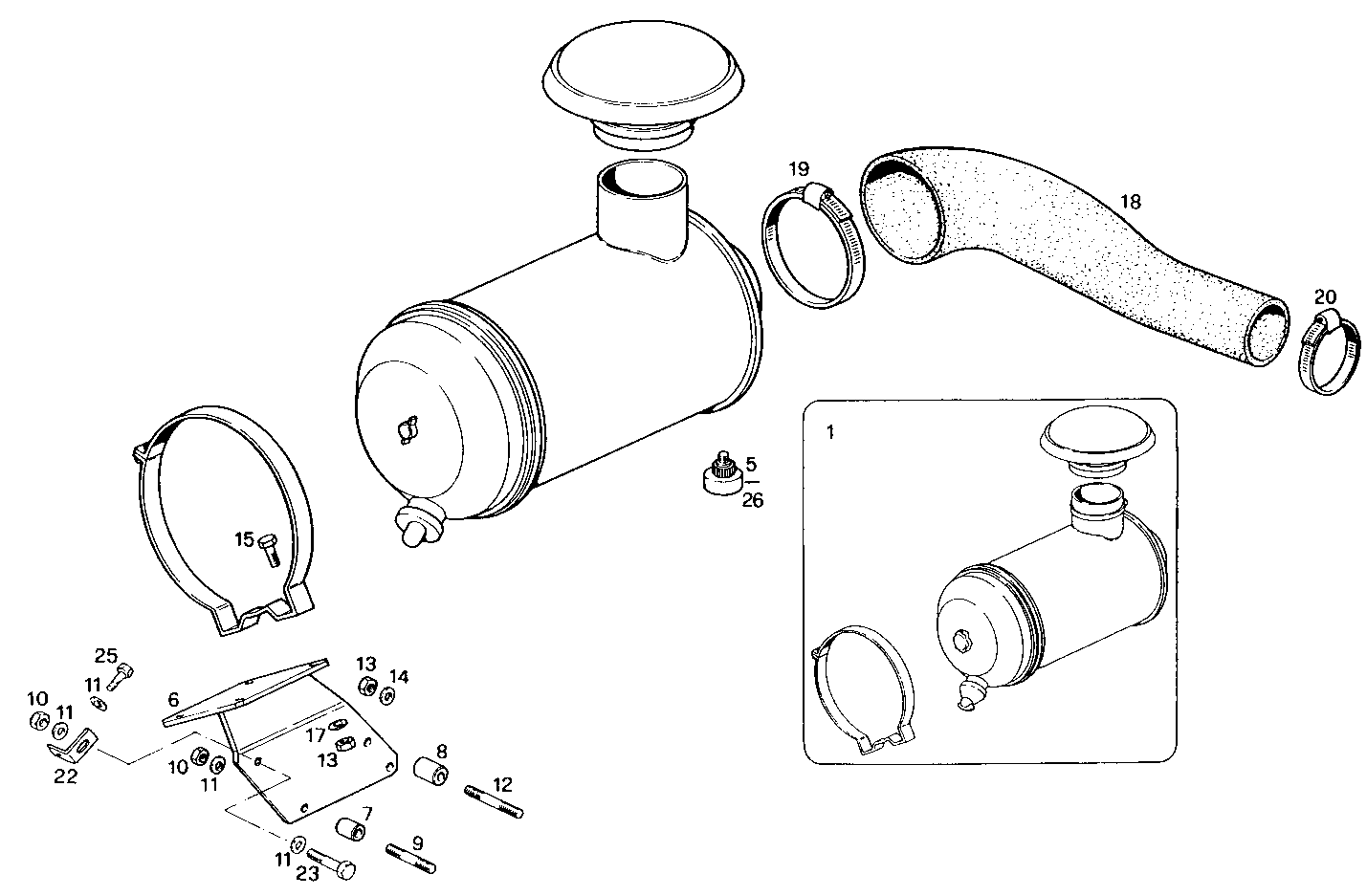

A21210046 DRY AIR CLEANER - with mechanical clogging gauge

Iveco/FPT DRY AIR CLEANER

Item Part number Description
1 8016739 AIR CLEANER ASSY
5 4936137 CHOCKED FILTER INDIC. MECHANICAL
6 8014570 SUPPORT
7 8014718 SPACING BAR
8 8014719 SPACING BAR
9 16729724 STUD M8X40 MM
10 17037931 HEXAGON NUT M8X1,25
11 17089774 SPRING WASHER Ø8,4X22 MM SP=2,4 MM
12 16731824 STUD M10X55
13 17038121 HEXAGON NUT M10
14 17090474 SPRING WASHER Ø10X27 MM SP=2,5
15 16607524 HEXAGON BOLT M10X1,5X20 MM (8.8)
17 17090174 SPRING WASHER Ø10X20 MM
18 8017040 RUBBER SLEEVE [from 10-93]
19 17765391 CLIP Ø90/110 MM
20 17765191 CLIP Ø70/90 MM
22 8100819 RETAINER
23 16605624 HEXAGON BOLT M8X25 MM (8.8)
25 16606024 SCREW M8X45 MM
26 8022540 CHOCKED FILTER INDIC. MECHANICAL
