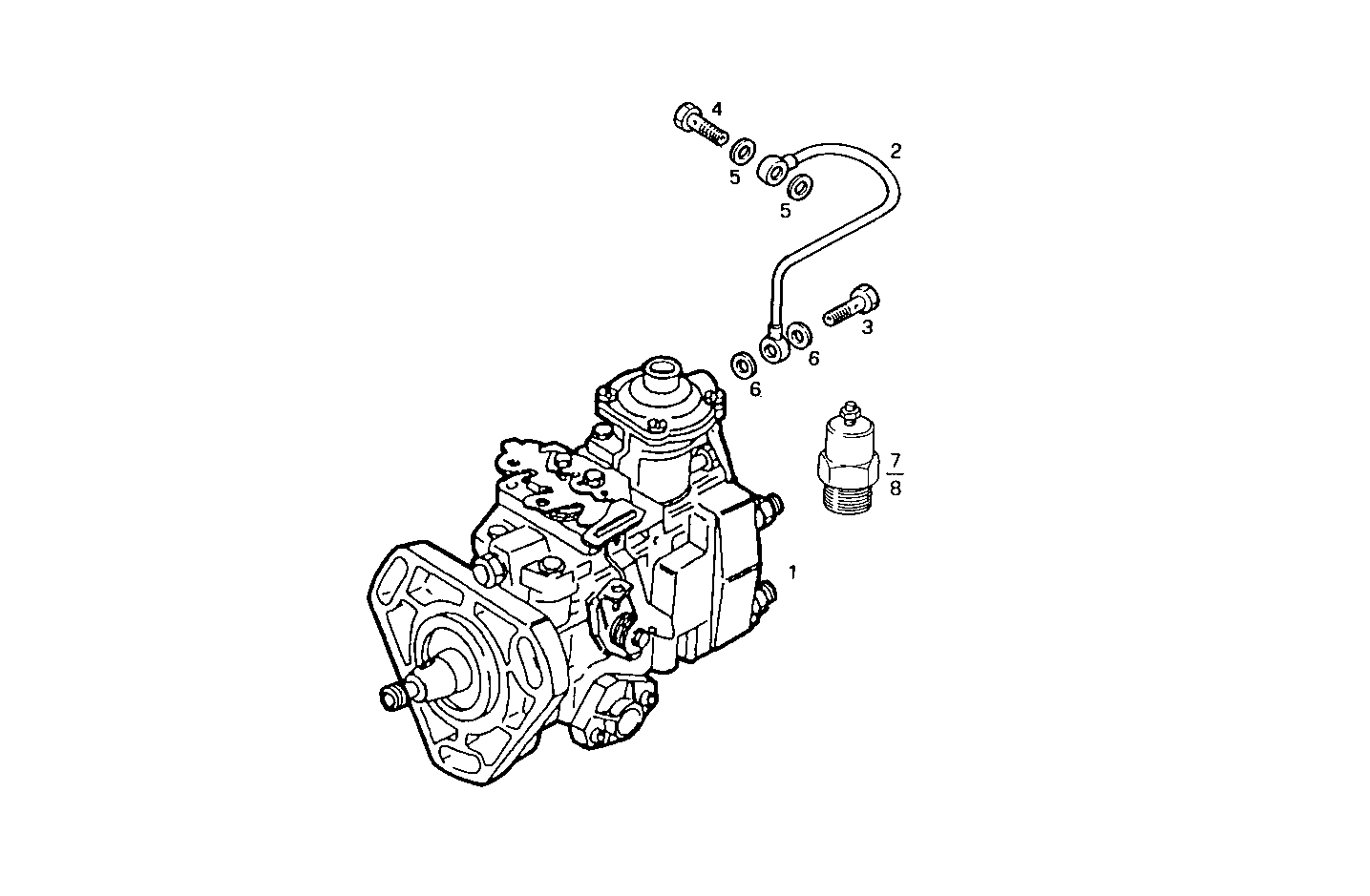

1400.161 INJECTION PUMP ASSY
| Item | Part number | Description |
|---|---|---|
| 1 | 8021790 | DISTRIB.INJ.PUMP |
| 2 | 8018093 | INJECTION LINE |
| 3 | 4864077 | SCREW CONNECTOR |
| 4 | 4864080 | SCREW CONNECTOR M10X1,25 |
| 5 | 98474305 | WASHER Ø10X17 MM SP=2,3 |
| 6 | 4858605 | WASHER Ø8X12 MM |
| 7 | 8100253 | ELECTROVALVE 12V |
| 8 | 8100105 | ELECTROVALVE 24V |
