8061Si13.05

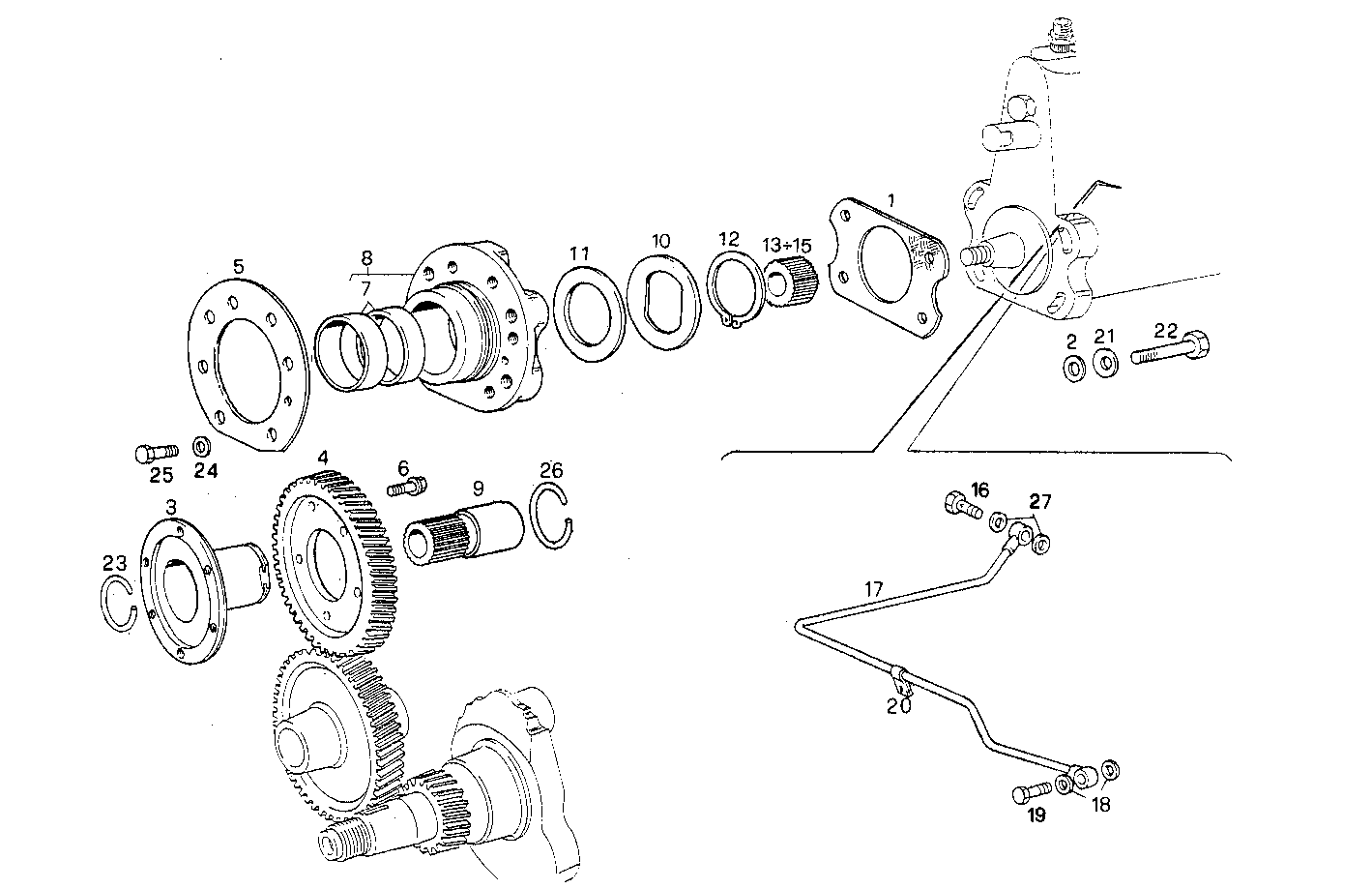

1410.044 INJECTION PUMP DRIVE
| Item | Part number | Description |
|---|---|---|
| 1 | 98400793 | FLAT ENGINE GASKET |
| 2 | 759850 | WASHER Ø10X21X2 MM |
| 3 | 4785077 | INJECT.PUMP SPIND |
| 4 | 4769422 | INJ.PUMP DRIV.GEA |
| 5 | 4849996 | FLAT ENGINE GASKET |
| 6 | 4798845 | SCREW |
| 7 | 4769427 | BUSH VANDERVELL |
| 8 | 4769424 | SUPPORT ASSY |
| 9 | 4769712 | INJECT.PUMP BUSH |
| 10 | 4667498 | WASHER |
| 11 | 4809425 | WASHER Ø50 MM |
| 12 | 4708213 | CIRCLIP |
| 13 | 4848559 | BUSH 69ø30'ñ15' |
| 14 | 4799482 | BUSH 63ø30'ñ15' |
| 15 | 4817460 | BUSH 66ø30'ñ15' |
| 16 | 4864079 | SCREW CONNECTOR M10X1 |
| 17 | 98412645 | OIL LINE |
| 18 | 98474305 | WASHER Ø10X17 MM SP=2,3 |
| 19 | 4864080 | SCREW CONNECTOR M10X1,25 |
| 20 | 4804122 | CLIP |
| 21 | 17090274 | WASHER Ø10X20 MM |
| 22 | 11234721 | HEXAGON BOLT M10X1,25X45 MM |
| 23 | 17085376 | CIRCLIP Ø30 MM |
| 24 | 17094914 | WASHER 8x16 |
| 25 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 26 | 4770452 | CIRCLIP |
| 27 | 4858606 | GASKET Ø10X14X1 MM |
