8061Si15.05

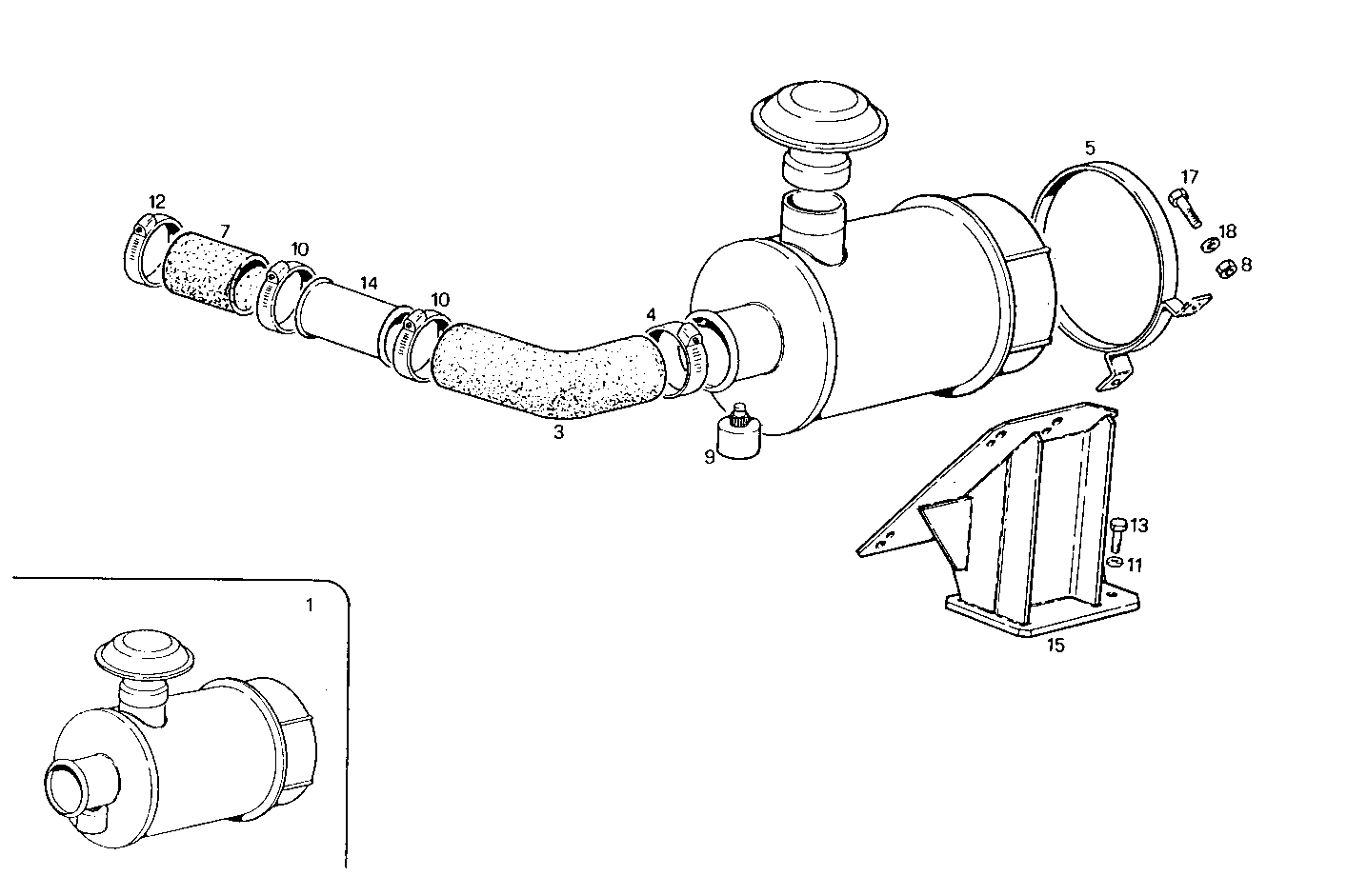

A21170053 DRY AIR CLEANER - with mechanical clogging gauge - genset
| Item | Part number | Description |
|---|---|---|
| 1 | 8009142 | AIR CLEANER ASSY |
| 3 | 8106719 | CONNECTOR SLEEVE |
| 4 | 17765592 | CLIP Ø110/130 MM |
| 5 | 8106822 | CLIP |
| 7 | 8104246 | FILTER HOSE |
| 8 | 16101511 | HEXAGON NUT M12X1,25 |
| 9 | 4758003 | AIR PRESSURE GAUGE |
| 10 | 17765392 | CLIP Ø90-110 MM |
| 11 | 17090174 | SPRING WASHER Ø10X20 MM |
| 12 | 17765192 | HOSE CLIP Ø70-90 MM |
| 13 | 15004021 | HEXAGON BOLT M10X1,25X25 MM |
| 14 | 8106797 | AIR PIPE/DUCT |
| 15 | 8008125 | SUPPORT |
| 17 | 15540321 | HEXAGON BOLT M12X1,25X25 MM |
| 18 | 17091071 | SPRING WASHER Ø12X24 SP=2,8 MM |
