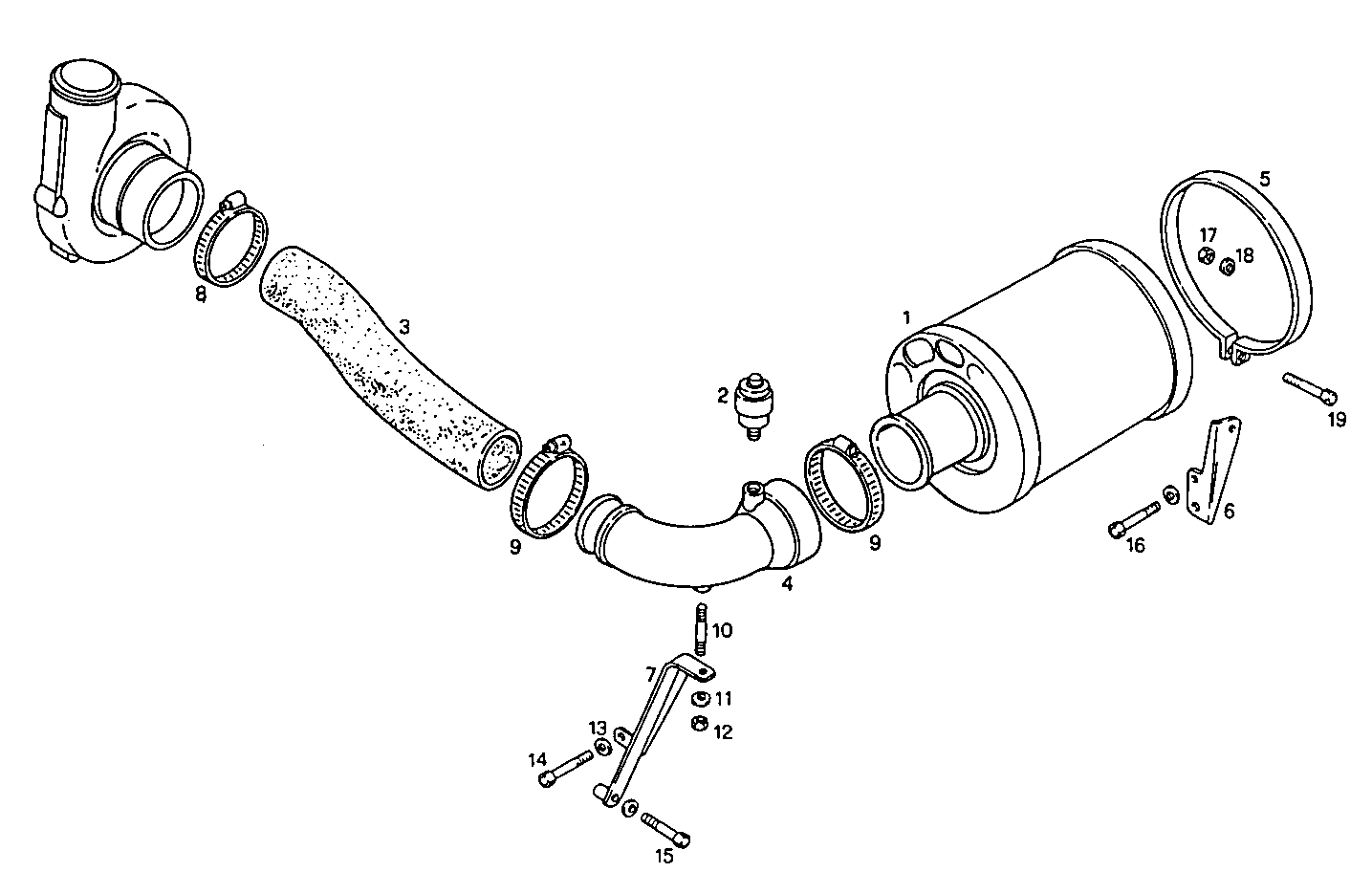

A21200002 DRY AIR CLEANER - with mechanical clogging gauge

Iveco/FPT DRY AIR CLEANER

Item Part number Description
1 8008293 AIR CLEANER
2 4936137 CHOCKED FILTER INDIC. MECHANICAL
3 8006068 FILTER HOSE
4 8008294 AIR PIPE/DUCT
5 8008259 CLIP
6 8008261 RETAINER
7 8008260 RETAINER
8 17765192 HOSE CLIP Ø70-90 MM
9 17765392 CLIP Ø90-110 MM
10 13449321 STUD M10X1,25X15X20 MM
11 17090174 SPRING WASHER Ø10X20 MM
12 12164711 HEXAGON NUT M10X1,25
13 11190579 SPRING WASHER Ø10X20 MM SP=2,3
14 15004021 HEXAGON BOLT M10X1,25X25 MM
15 11234721 HEXAGON BOLT M10X1,25X45 MM
16 16044121 HEXAGON BOLT M8X45 MM (8.8)
17 14496601 WASHER Ø10X21 MM
18 12574511 NUT M10X1,25
19 15970921 HEXAGON BOLT M10X1,25X35 MM
