8061Si15.05

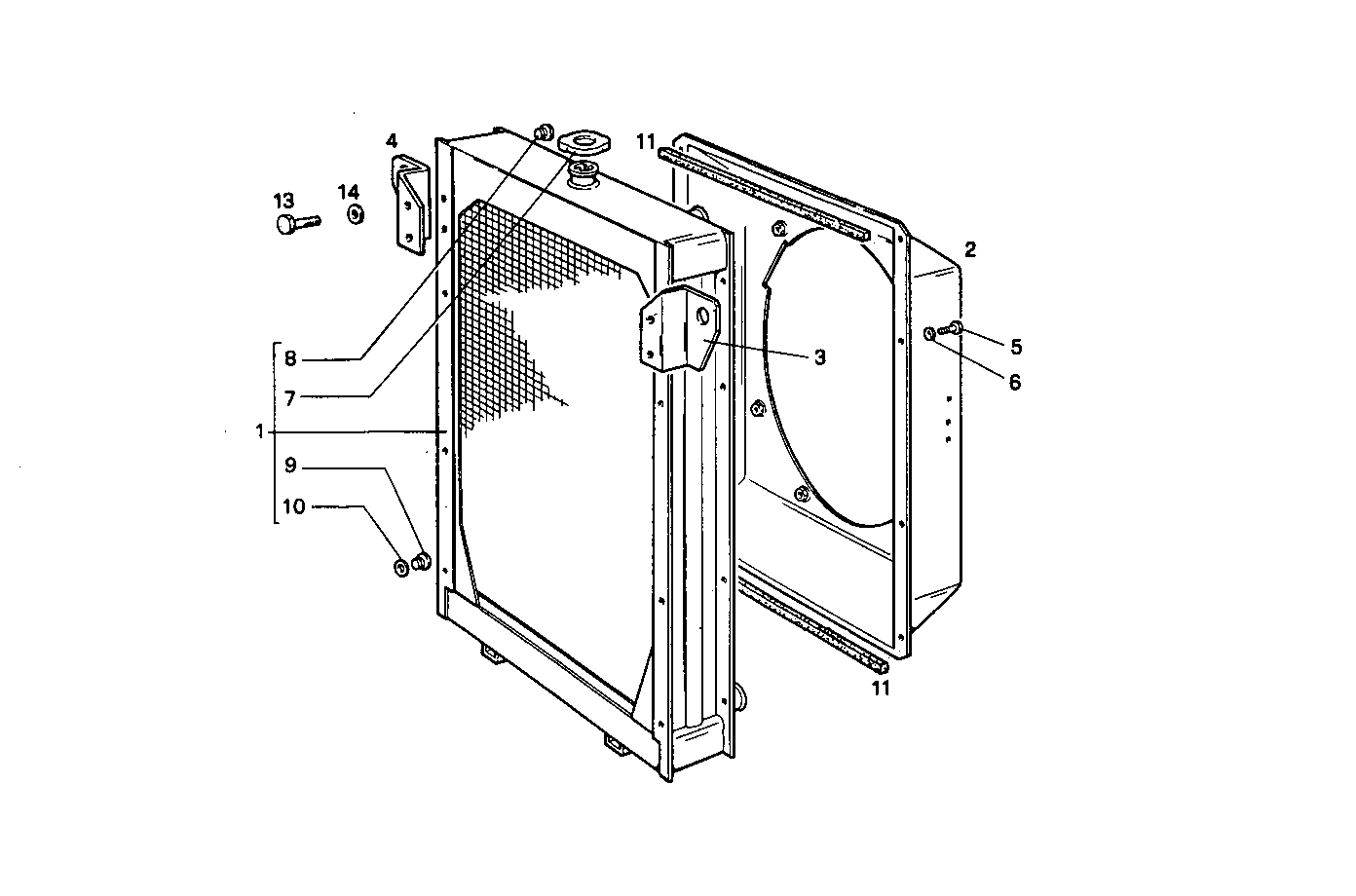

T2201002 RADIATOR - (components)
| Item | Part number | Description |
|---|---|---|
| 1 | 8105067 | WATER RADIATOR |
| 2 | 8104472 | AIR HOOD |
| 3 | 8104537 | RETAINER LEFT |
| 4 | 8104538 | RETAINER RIGHT |
| 5 | 10902121 | HEXAGON BOLT M6X14 MM |
| 6 | 11194779 | WASHER Ø6X18X1,4 MM |
| 7 | 8105095 | RADIATOR PLUG 0,7 BAR - RT |
| 8 | 8105096 | PLUG |
| 9 | 10300611 | LOCK PLUG M14X1,5 |
| 10 | 10282460 | SEAL GASKET Ø14X20 MM |
| 11 | 8105090 | PROTECTION |
| 13 | 16043221 | HEXAGON BOLT M8X16 MM |
| 14 | 17089471 | SPRING WASHER Ø16X8 MM SP=1,4 MM |
