8061Si25.00

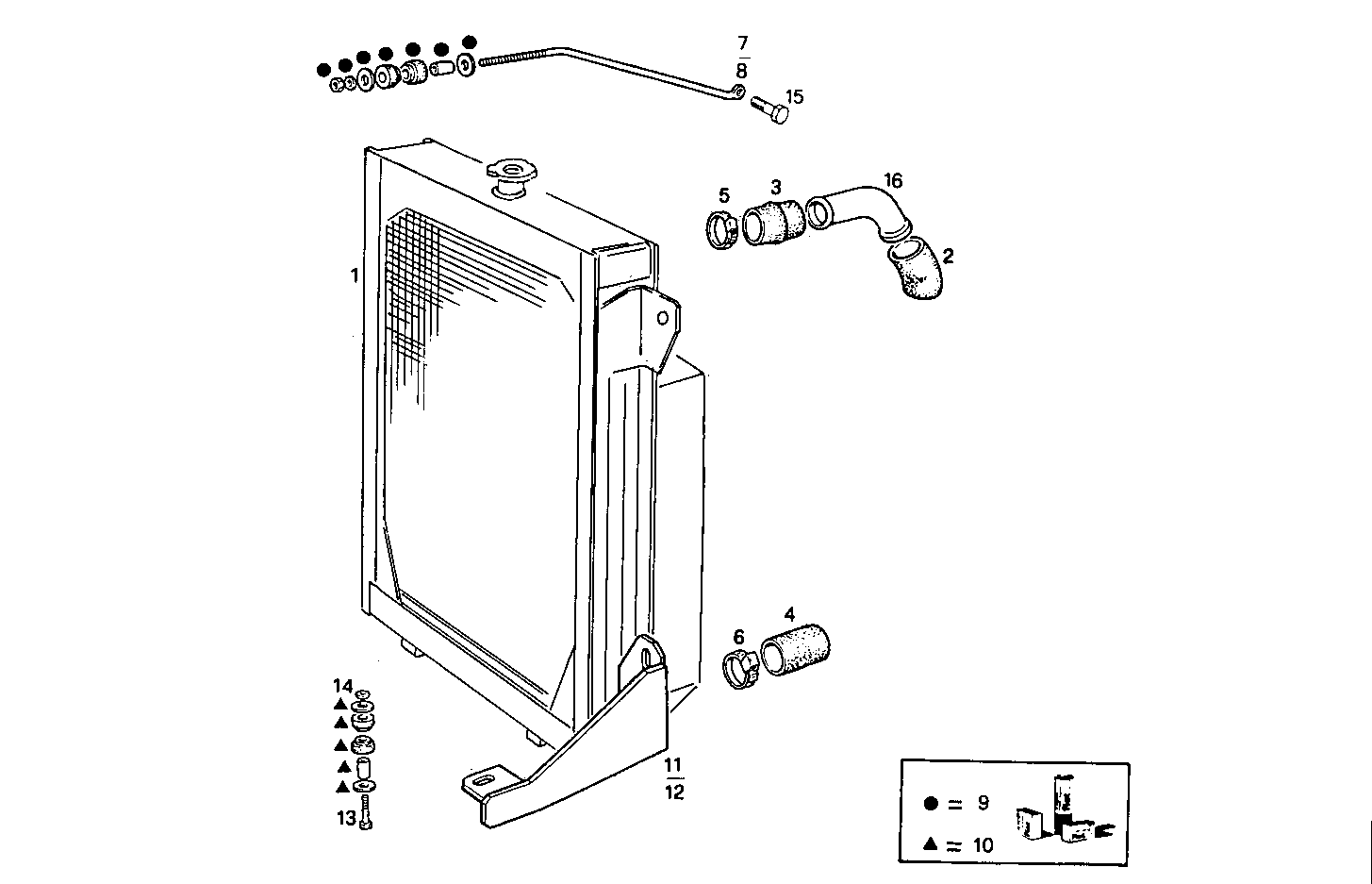

A22010013 RADIATOR FOR SETTING TILL MAX POWER - if compressor not fitted
| Item | Part number | Description |
|---|---|---|
| 1 | 8105089 | WATER RADIATOR ASSY |
| 2 | 4787630 | RUBBER SLEEVE |
| 3 | 10138787 | RUBBER SLEEVE |
| 4 | 4934627 | RUBBER SLEEVE |
| 5 | 17764892 | PIPE CLIP Ø40-60 MM |
| 6 | 17764792 | HOSE CLIP Ø32-50 MM |
| 7 | 8104560 | TIE ROD RIGHT |
| 8 | 8112287 | TIE ROD |
| 9 | 8090340 | KIT-RADIATOR A.S. COMPLETE |
| 10 | 8090977 | KIT-RADIATOR A.S. COMPLETE |
| 11 | 8104533 | SUPPORT RIGHT |
| 12 | 8104536 | SUPPORT LEFT |
| 13 | 15888821 | HEXAGON BOLT M10X1,25X70 MM |
| 14 | 11198371 | SPRING WASHER Ø10X20 MM |
| 15 | 98491344 | SCREW LEFT |
| 16 | 8104821 | WATER PIPE |
