8061Si25.05

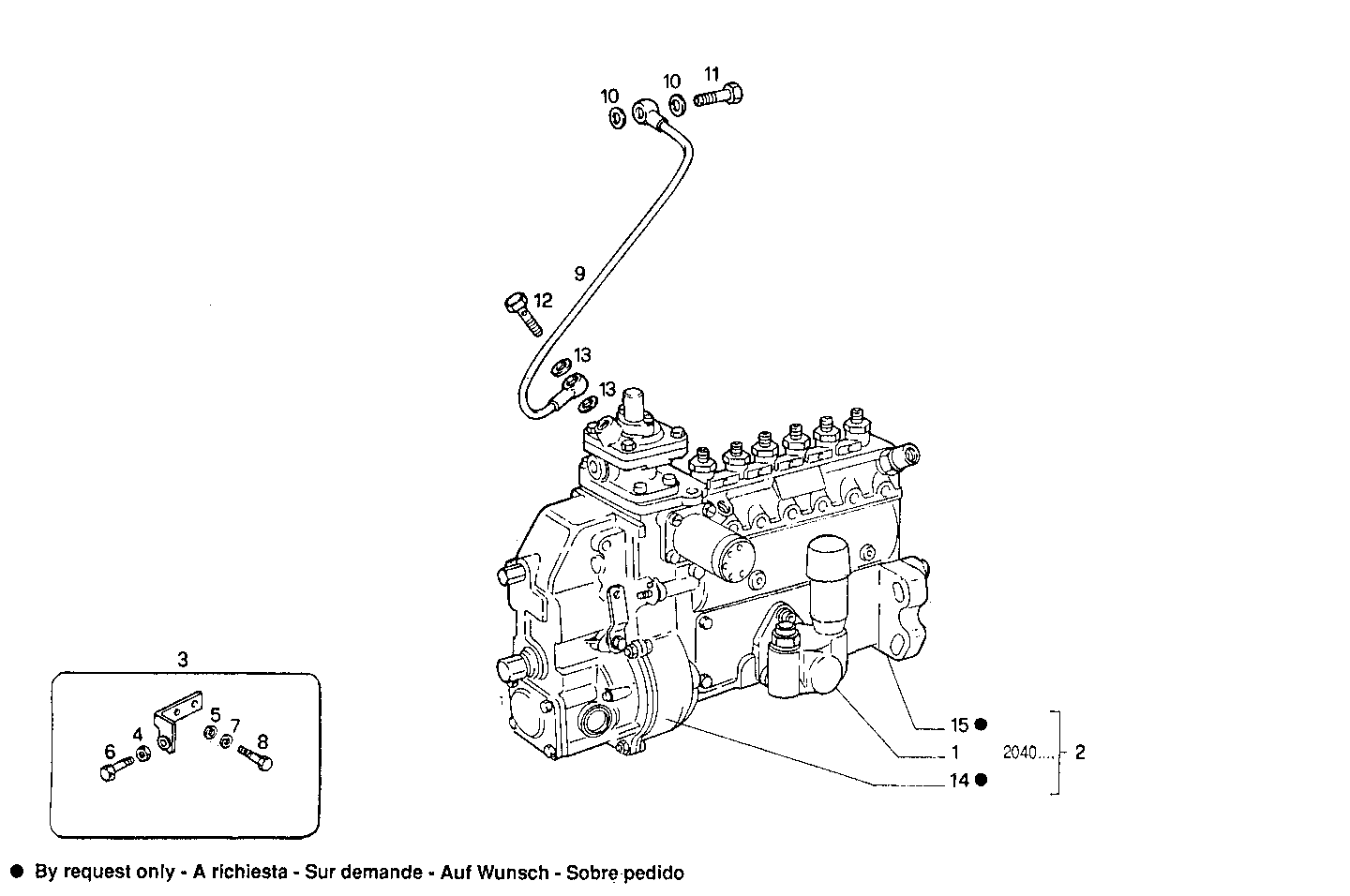

1400.074 INJECTION PUMP ASSY
| Item | Part number | Description |
|---|---|---|
| 1 | 93190279 | FUEL PUMP ASSY BOSCH |
| 2 | 98453575 | INLINE INJECT.PUMP ASSY |
| 3 | 4756612 | CONTROL ASSEMBLY ASSY |
| 4 | 4756616 | NUT |
| 5 | 4799685 | WASHER |
| 6 | 4756615 | SCREW |
| 7 | 10571571 | SPRING WASHER Ø6 MM |
| 8 | 10902221 | HEXAGON BOLT M6X16 MM |
| 9 | 4755463 | INJECTION LINE |
| 10 | 4858606 | GASKET Ø10X14X1 MM |
| 11 | 4864080 | SCREW CONNECTOR M10X1,25 |
| 12 | 4864082 | BANJO BOLT M12X1,5X25 MM |
| 13 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
