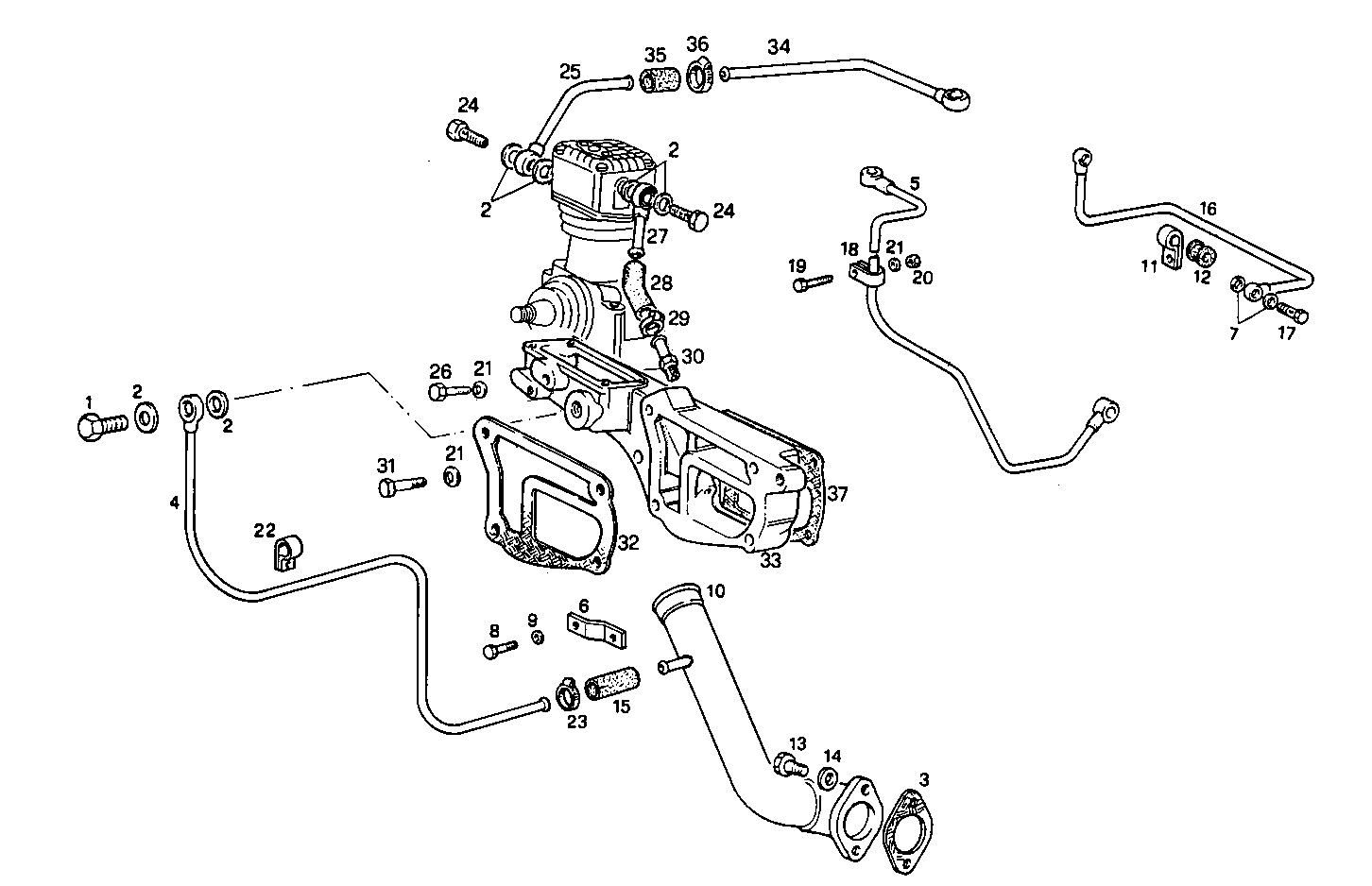

| Item |
Part number |
Description |
|
1 |
10184417 |
SCREW CONNECTOR M16X1,5 |
|
2 |
4858609 |
WASHER Ø16X22 MM SP=1,5 MM |
|
3 |
599777 |
GASKET |
|
4 |
8011179 |
WATER PIPE |
|
5 |
8010959 |
OIL LINE |
|
6 |
8100407 |
RETAINER |
|
7 |
10260160 |
SEAL GASKET Ø10X14 MM SP=1 MM |
|
8 |
16043421 |
HEXAGON BOLT M8X20 MM |
|
9 |
11194071 |
WASHER Ø8X16X1,9 MM |
|
10 |
8109102 |
WATER PIPE |
|
11 |
4755963 |
FASTENING BRACKET |
|
12 |
4755964 |
RUBBER PAD |
|
13 |
16044424 |
SCREW M8X60 |
|
14 |
11193871 |
WASHER Ø8X16X1,4 MM |
|
15 |
10274087 |
RUBBER SLEEVE |
|
16 |
8010969 |
INJECTION LINE |
|
17 |
4608490 |
SCREW CONNECTOR |
|
18 |
10449890 |
PIPE CLIP Ø53 MM |
|
19 |
16044321 |
HEXAGON BOLT M8X1,25X55 MM |
|
20 |
17037931 |
HEXAGON NUT M8X1,25 |
|
21 |
11198371 |
SPRING WASHER Ø10X20 MM |
|
22 |
10450290 |
PIPE CLIP Ø12 MM |
|
23 |
12179190 |
CLIP Ø11 MM |
|
24 |
4864084 |
BANJO BOLT M16X1,5 |
|
25 |
8010977 |
WATER PIPE |
|
26 |
15888721 |
HEXAGON BOLT M10X1,25X55 MM |
|
27 |
8010879 |
WATER PIPE |
|
28 |
4626124 |
WATER HOSE |
|
29 |
17764592 |
CLIP Ø20/32 MM |
|
30 |
4616630 |
THREADED UNION |
|
31 |
11343721 |
HEXAGON BOLT M10X65 MM |
|
32 |
98400776 |
FLAT ENGINE GASKET |
|
33 |
4601828 |
SUPPORT |
|
34 |
8100075 |
WATER PIPE |
|
35 |
12099787 |
RUBBER SLEEVE |
|
37 |
98400779 |
FLAT ENGINE GASKET |
