8061Si25.05

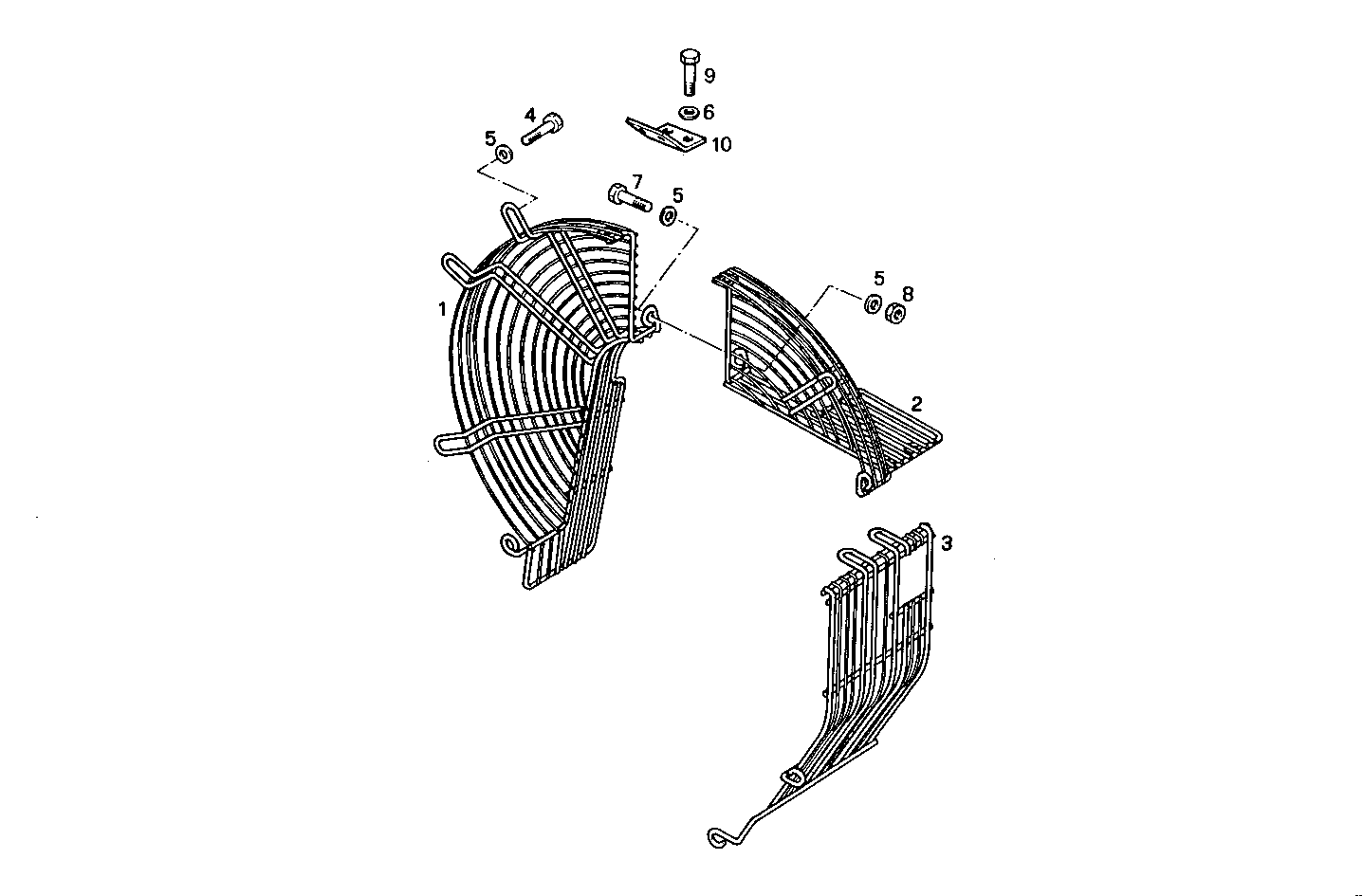

A48060011 GUARD - for fan and belt stretcher
| Item | Part number | Description |
|---|---|---|
| 1 | 8008666 | PROTECTION |
| 2 | 8015824 | PROTECTION |
| 3 | 8015899 | PROTECTION |
| 4 | 16605524 | HEXAGON BOLT M8X20 MM |
| 5 | 17089771 | WASHER Ø8X22X1,5 MM |
| 6 | 17088474 | WASHER Ø6X12 MM |
| 7 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 8 | 17037931 | HEXAGON NUT M8X1,25 |
| 9 | 16603724 | HEXAGON BOLT M6X20 MM (8.8) |
| 10 | 8009454 | RETAINER |
