8061Si35.05

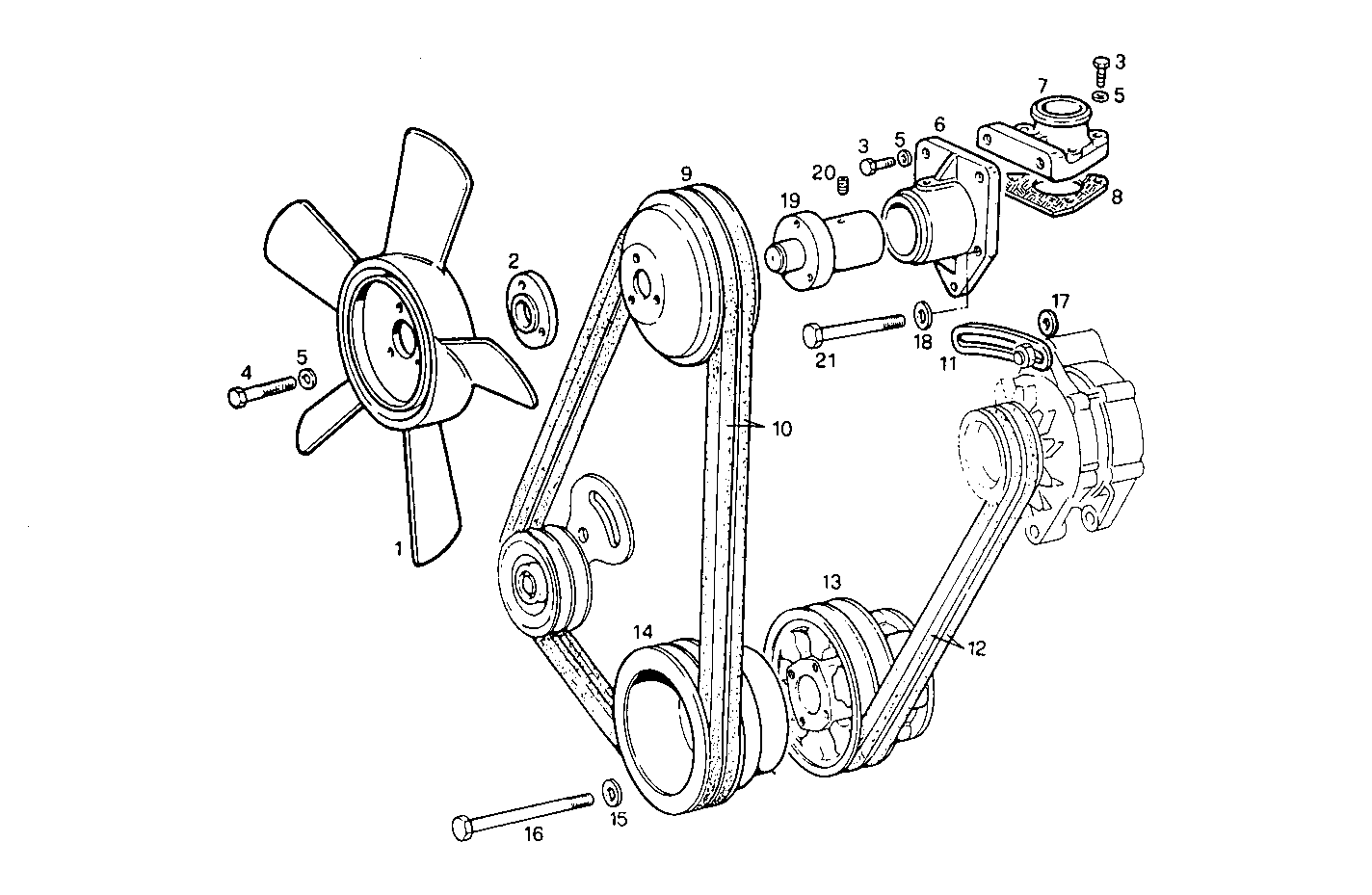

A08010034/01 HIGHTPUSHER FAN - without compressor

Iveco/FPT HIGHTPUSHER FAN

Item Part number Description
1 4698188 BLOWER Ø500 MM
2 4935426 SPACING BAR
3 16605624 HEXAGON BOLT M8X25 MM (8.8)
4 16606224 HEXAGON BOLT M8X55 MM
5 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
6 8016552 SUPPORT
7 8101449 WATER PIPE
8 98420754 FLAT ENGINE GASKET SP=0,5 MM
9 4845548 PULLEY
10 4847051 SET OF V-BELTS L=1130 MM
11 4806133 BELT TENSIONER
12 98413827 V-BELT KIT
13 8106819 PULLEY
14 8013580 PULLEY
15 17101634 SPRING WASHER Ø10X16X2,5 MM
16 14308221 SCREW
17 12642401 WASHER Ø10,6 MM
18 17090174 SPRING WASHER Ø10X20 MM
19 8016584 DRIVE BEARING
20 17425810 SCREW
21 15972721 HEXAGON BOLT M10X145 MM
