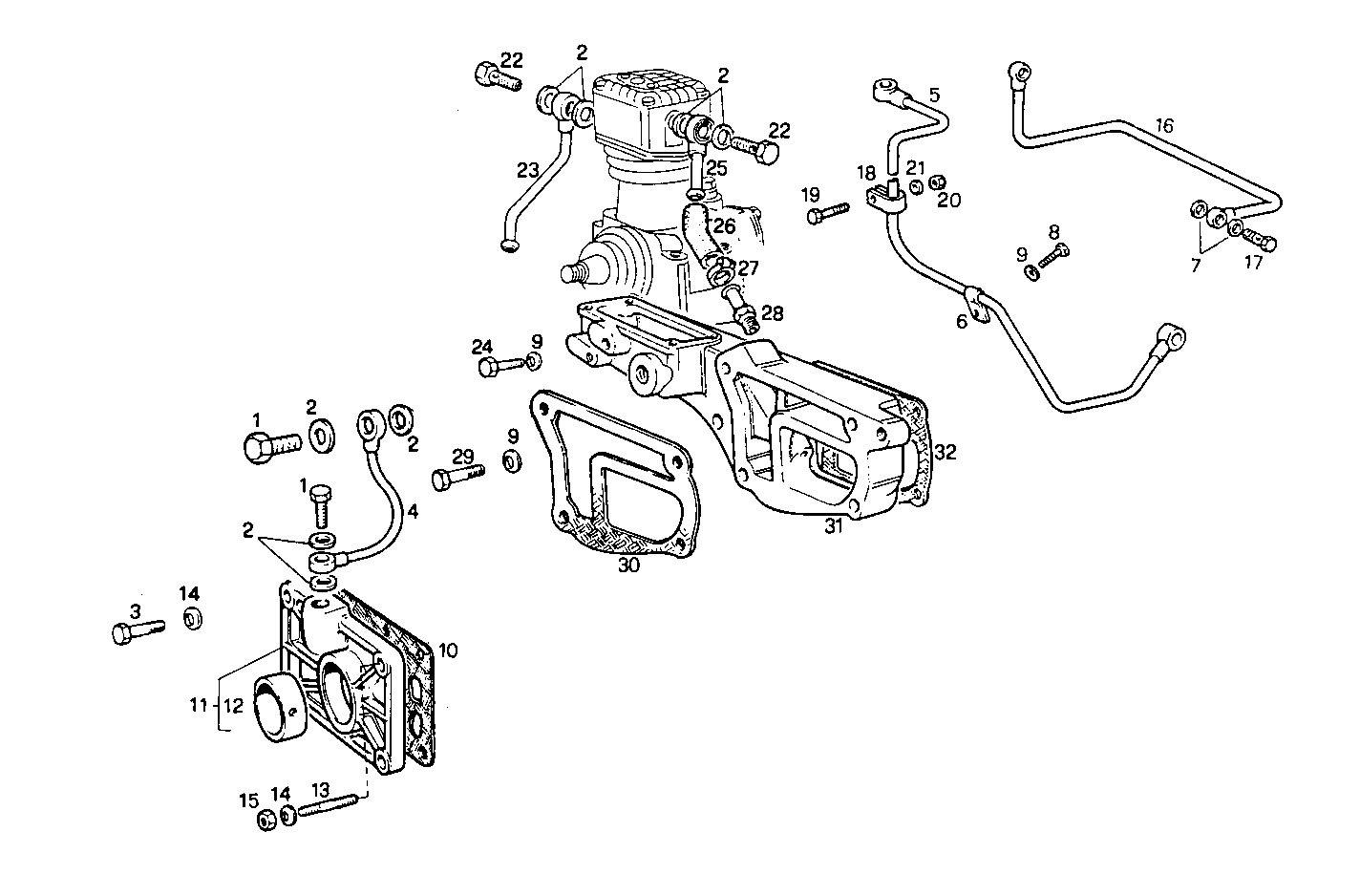

| Item |
Part number |
Description |
|
1 |
10184417 |
SCREW CONNECTOR M16X1,5 |
|
2 |
4858609 |
WASHER �16X22 MM SP=1,5 MM |
|
3 |
10902421 |
HEXAGON BOLT M6X20 MM |
|
4 |
4608943 |
OIL LINE |
|
5 |
8010959 |
OIL LINE |
|
6 |
4933030 |
RETAINER |
|
7 |
4858606 |
GASKET �10X14X1 MM |
|
8 |
15970521 |
HEXAGON BOLT M10X20 MM |
|
9 |
11198371 |
SPRING WASHER �10X20 MM |
|
11 |
4765622 |
COVER |
|
12 |
4599807 |
BUSH |
|
13 |
4615276 |
STUD M8X20 |
|
14 |
11197771 |
SPRING WASHER �6X12 MM SP=1,2 MM |
|
15 |
17037821 |
HEXAGON NUT M6X1 |
|
16 |
8010969 |
INJECTION LINE |
|
17 |
4864080 |
SCREW CONNECTOR M10X1,25 |
|
18 |
10449890 |
PIPE CLIP �53 MM |
|
19 |
16044321 |
HEXAGON BOLT M8X1,25X55 MM |
|
20 |
17037931 |
HEXAGON NUT M8X1,25 |
|
21 |
11194071 |
WASHER �8X16X1,9 MM |
|
22 |
98406316 |
BANJO BOLT M10X1,25 |
|
23 |
8010977 |
WATER PIPE |
|
24 |
15888721 |
HEXAGON BOLT M10X1,25X55 MM |
|
25 |
8010879 |
WATER PIPE |
|
26 |
98425477 |
WATER HOSE |
|
27 |
17764592 |
CLIP �20/32 MM |
|
28 |
4616630 |
THREADED UNION |
|
29 |
11343721 |
HEXAGON BOLT M10X65 MM |
|
30 |
98400776 |
FLAT ENGINE GASKET |
|
31 |
4601828 |
SUPPORT |
|
32 |
98400779 |
FLAT ENGINE GASKET |
