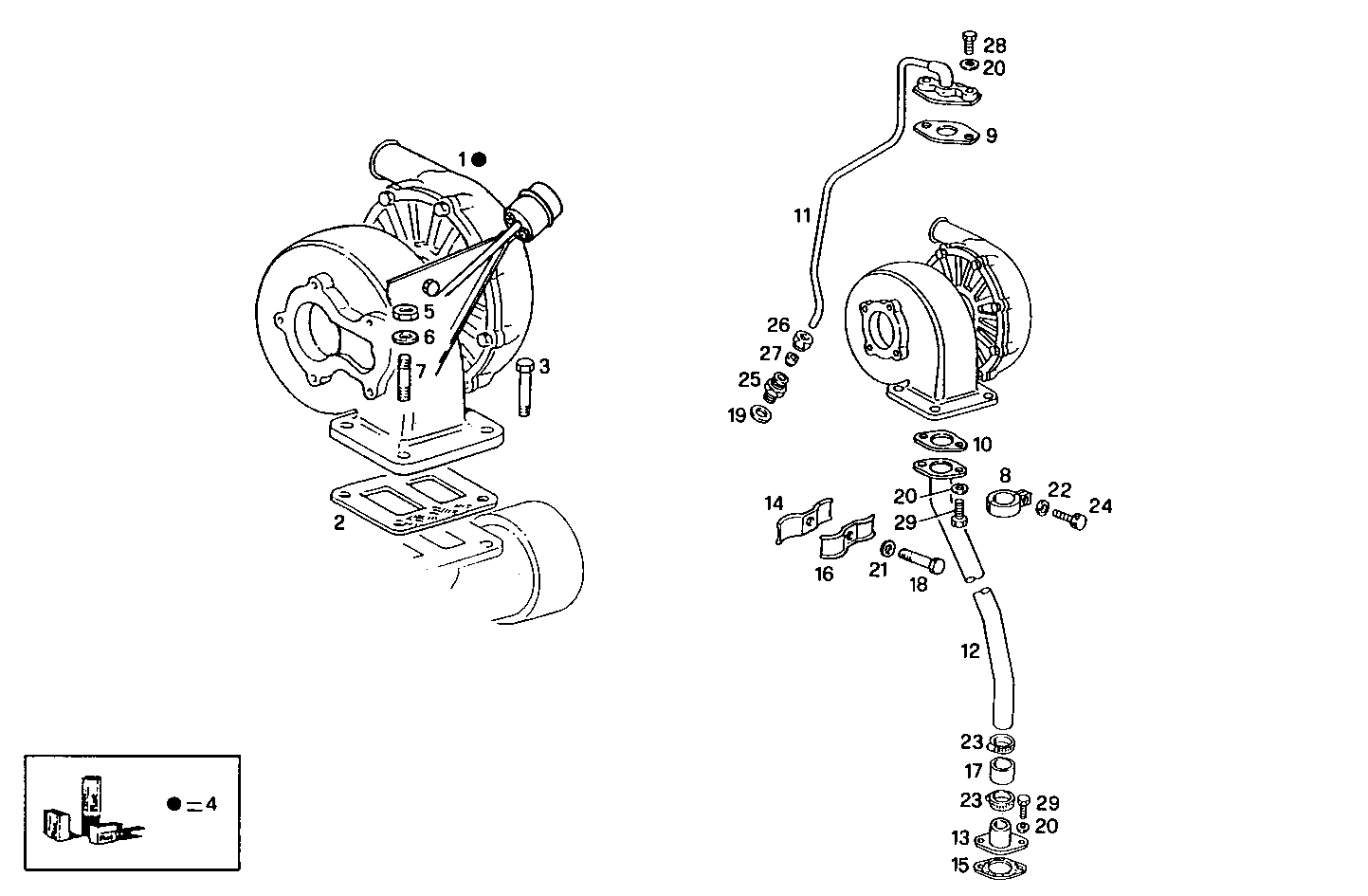

| Item |
Part number |
Description |
|
1 |
8015295 |
TURBOCHARGER ASSY HOLSET |
|
2 |
98428396 |
FLAT ENGINE GASKET |
|
3 |
98491312 |
HEXAGON BOLT |
|
4 |
8090147 |
KIT-TURBOCHARGER HOLSET |
|
5 |
17038221 |
HEXAGON NUT M10 |
|
6 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
7 |
13449530 |
STUD M10X15X25 |
|
8 |
4033229 |
CLIP |
|
9 |
98415922 |
FLAT ENGINE GASKET |
|
10 |
98415923 |
FLAT ENGINE GASKET |
|
11 |
4772720 |
OIL LINE INNER |
|
12 |
4779773 |
OIL LINE |
|
13 |
4754153 |
FLANGED SOCKET |
|
14 |
4755435 |
RETAINER |
|
15 |
98401046 |
FLAT ENGINE GASKET |
|
16 |
4755436 |
RETAINER |
|
17 |
98420478 |
RUBBER SLEEVE |
|
18 |
16603724 |
HEXAGON BOLT M6X20 MM (8.8) |
|
19 |
4858609 |
WASHER Ø16X22 MM SP=1,5 MM |
|
20 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
21 |
17088474 |
WASHER Ø6X12 MM |
|
22 |
17764592 |
CLIP Ø20/32 MM |
|
23 |
15970121 |
HEXAGON BOLT M10X14 MM |
|
25 |
16500311 |
PIPE SOCKET M16X1,5/M18X1,5 |
|
26 |
16506911 |
NUT M18X1,5 |
|
27 |
16507611 |
WASHER Ø12 MM |
|
28 |
16605824 |
HEXAGON BOLT M8X35 MM |
|
29 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
