8061SM16.11

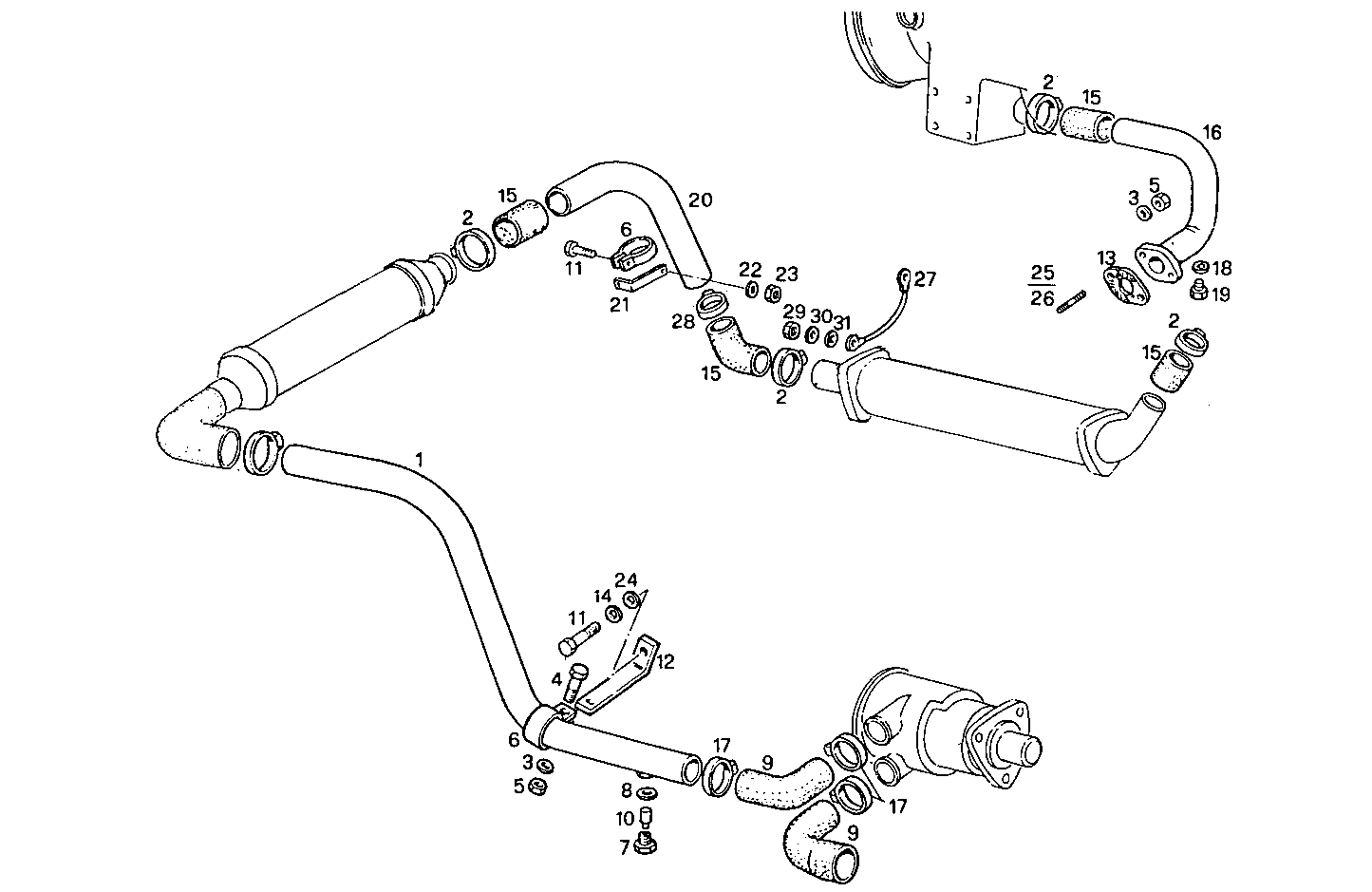

3390.034 SEA WATER LINES

Iveco/FPT SEA WATER LINES

Item Part number Description
1 8007313 WATER PIPE
2 17764893 CLIP Ø40/60 MM
3 11190479 WASHER
4 16043321 HEXAGON BOLT M8X18 MM
5 17037931 HEXAGON NUT M8X1,25
6 4936741 CLIP
7 4917793 PLUG M18
8 16508360 WASHER 18x22x1,5
9 8100546 RUBBER SLEEVE
10 8105277 SACRIFICAL ANODE Ø14 MM
11 16609824 HEXAGON BOLT M12X1,75X25 MM
12 8007479 RETAINER
13 8008755 FLAT ENGINE GASKET
14 17090174 SPRING WASHER Ø10X20 MM
15 17742687 RUBBER SLEEVE
16 8006644 WATER PIPE
17 17764793 CLIP Ø32/50 MM
18 4858610 WASHER Ø18X24 MM SP=1,5 MM
19 8008747 PLUG
20 8009539 WATER PIPE
21 8114420 RETAINER
23 17038221 HEXAGON NUT M10
24 17095304 WASHER Ø12X24 MM
25 13516921 STUD M8X12X22 MM
26 16730024 STUD M8X55
27 8109924 ENGINE HARNESS GND
28 12182290 CLIP
29 15896411 HEXAGON NUT M5
30 17094504 WASHER Ø5,3X10 MM
31 11198271 SPRING WASHER Ø8X22X2,4 MM
