8061SM20.12

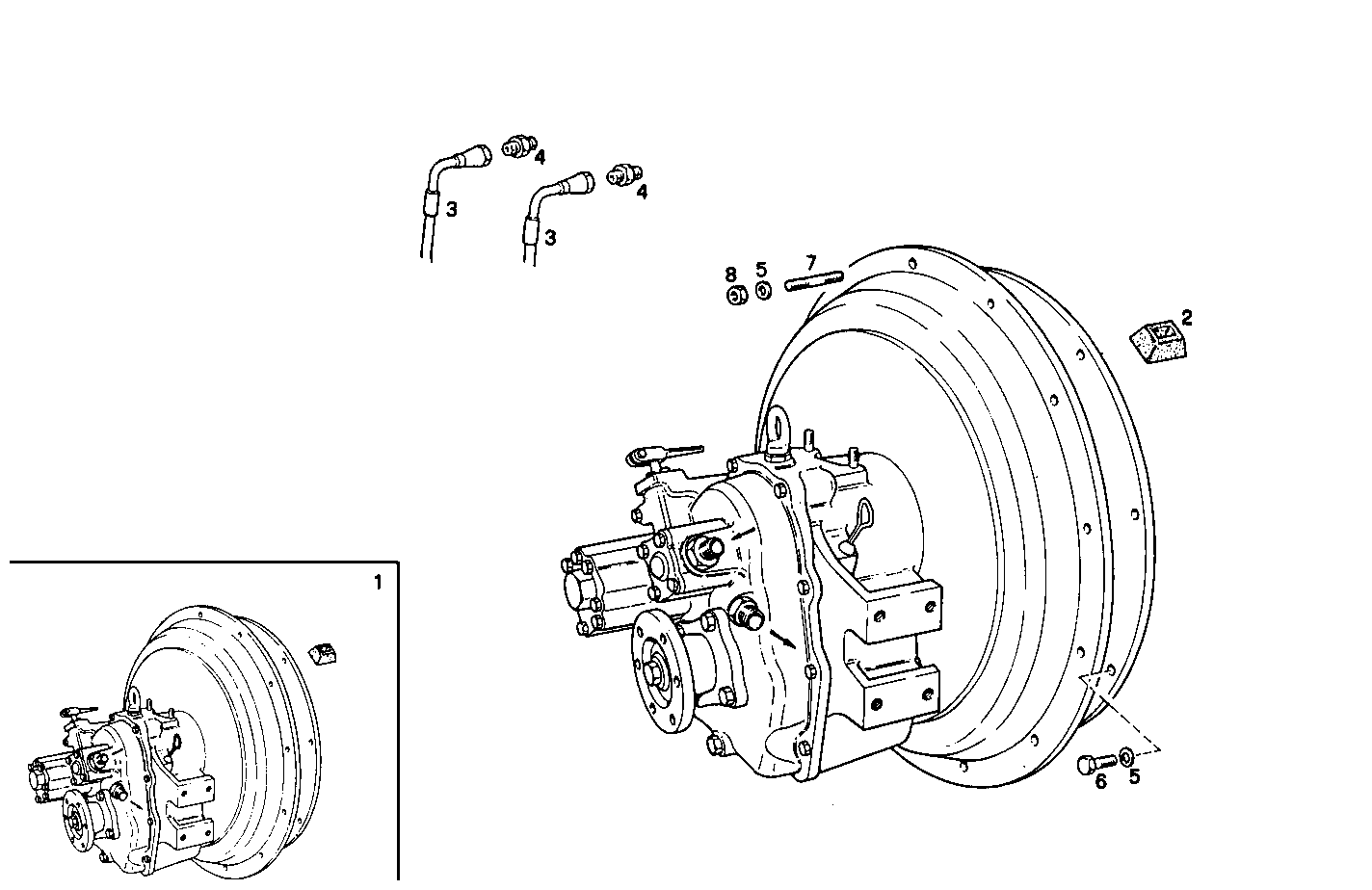

A51680009 MARINE GEAR TECHNODRIVE TM 265 - ratio 2.82:1
| Item | Part number | Description |
|---|---|---|
| 1 | 8014926 | MARINE GEAR 2,82:1 |
| 2 | 4932462 | DOWEL |
| 3 | 8105620 | HOSE |
| 4 | 8101073 | PIPE SOCKET |
| 5 | 17090174 | SPRING WASHER Ø10X20 MM |
| 6 | 10923421 | HEXAGON BOLT M10X1,25X30 MM |
| 7 | 13449521 | STUD M10X15X25 |
| 8 | 17038221 | HEXAGON NUT M10 |
