8061SM20.30

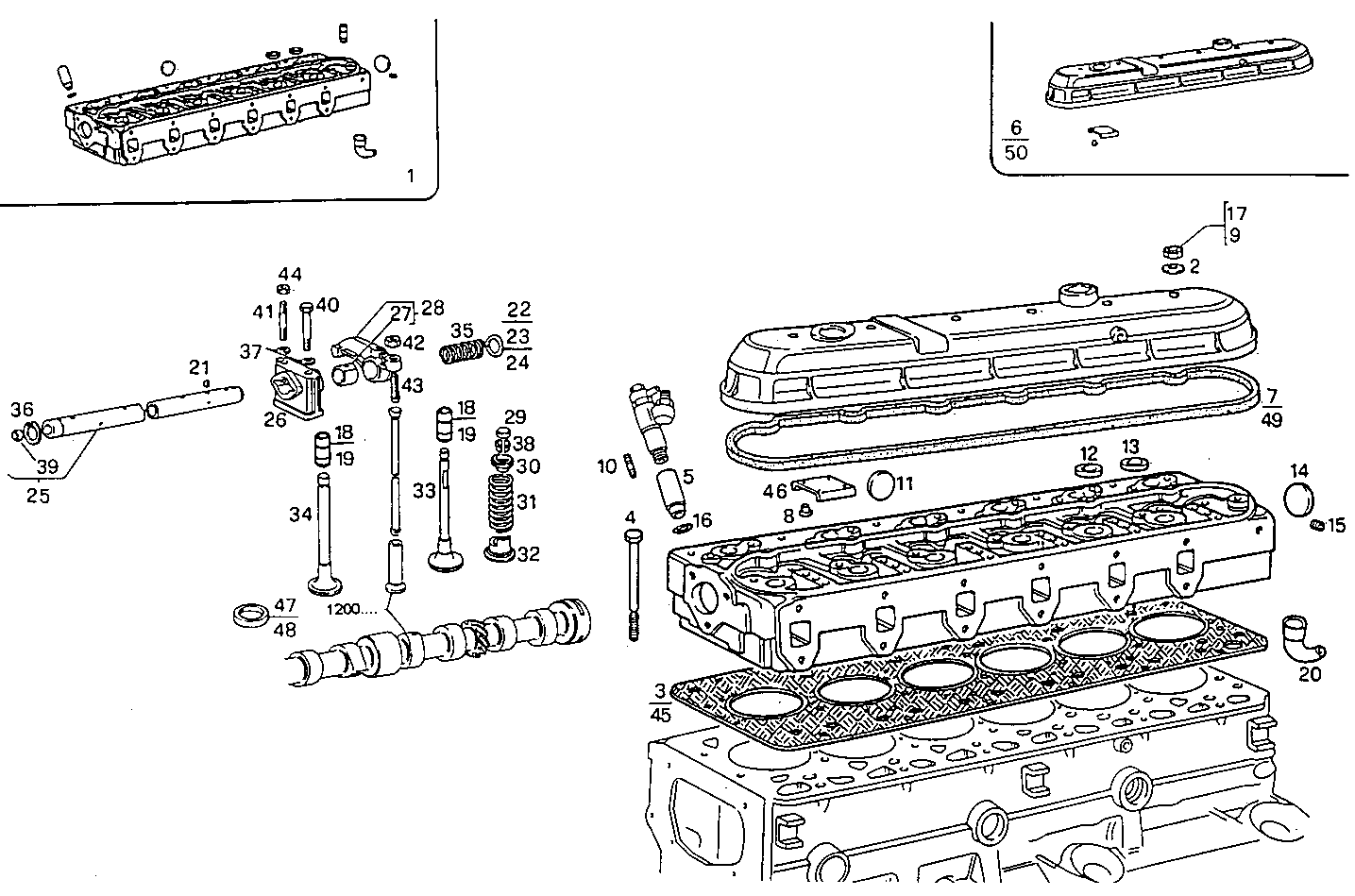

0600.105 CYLINDER HEAD

Iveco/FPT CYLINDER HEAD

Item Part number Description
1 98464546 CYLINDER HEAD ASSY
2 98416134 WASHER [from 555940]
3 1907832 CYL.HEAD GASKET SP=1,35 MM
4 4796457 CYL.HEAD STUD
5 4770859 NOZZLE HOLDER SEAT
6 8010011 CYL. HEAD COVER ASSY
7 4845138 HEAD COVER GASKET
8 17714601 RIVET
9 98417659 NUT [from 555940]
10 13517530 STUD M8X12X45
11 16991170 LOCK PLUG Ø36 MM
12 16990870 LOCK PLUG Ø28 MM
13 14282170 LOCK PLUG Ø20 MM
14 16991370 LOCK PLUG Ø45 MM
15 14323911 LOCK PLUG M10X1,25
16 14453981 O-RING Ø25,12 MM SP=1,78 MM
17 8009967 NUT
18 4802126 VALVE GUIDE
19 4802127 VALVE GUIDE +0,2
20 4818862 WATER CONVEYOR
21 4846851 SPIGOT SCREW
22 4639661 SUPPORT RING SP=1 MM
23 4570798 SUPPORT RING SP=0,7 MM
24 4570799 SUPPORT RING SP=0,5 MM
25 4838844 ROCKER SHAFT ASSY
26 4601295 ROCKER BRACKET
27 4682937 BUSH
28 4848973 ROCKER ARM ASSY
29 4838680 VALVE CAP
30 4780558 SPRING CAP TOP
31 4812347 ENGINE VALV.SPRING
32 4817424 SPRING CAP BOTTOM
33 1908408 INLET VALVE
34 1908409 EXHAUST VALVE
35 4601296 ROCKER ARM SPRING
36 11066676 CIRCLIP Ø18 MM
37 17094901 WASHER Ø8,4 MM
38 4819891 VALVE CONE
39 14328301 LOCK PLUG Ø12 MM
40 16606424 HEXAGON BOLT M8X65 MM
41 98458149 STUD [from 608189]
42 4338920 ADJUSTING NUT
43 4699783 ROCKER ARM SCREW
44 17037931 HEXAGON NUT M8X1,25
45 1907838 CYL.HEAD GASKET SP=1,58 MM
46 8111618 PLATE
47 98495493 VALVE SEAT STD.
48 4803956 VALVE SEAT +0.05
49 98427866 HEAD COVER GASKET [from 344746]
50 8024704 CYL. HEAD COVER ASSY [from 334746]
