8061SM20.30

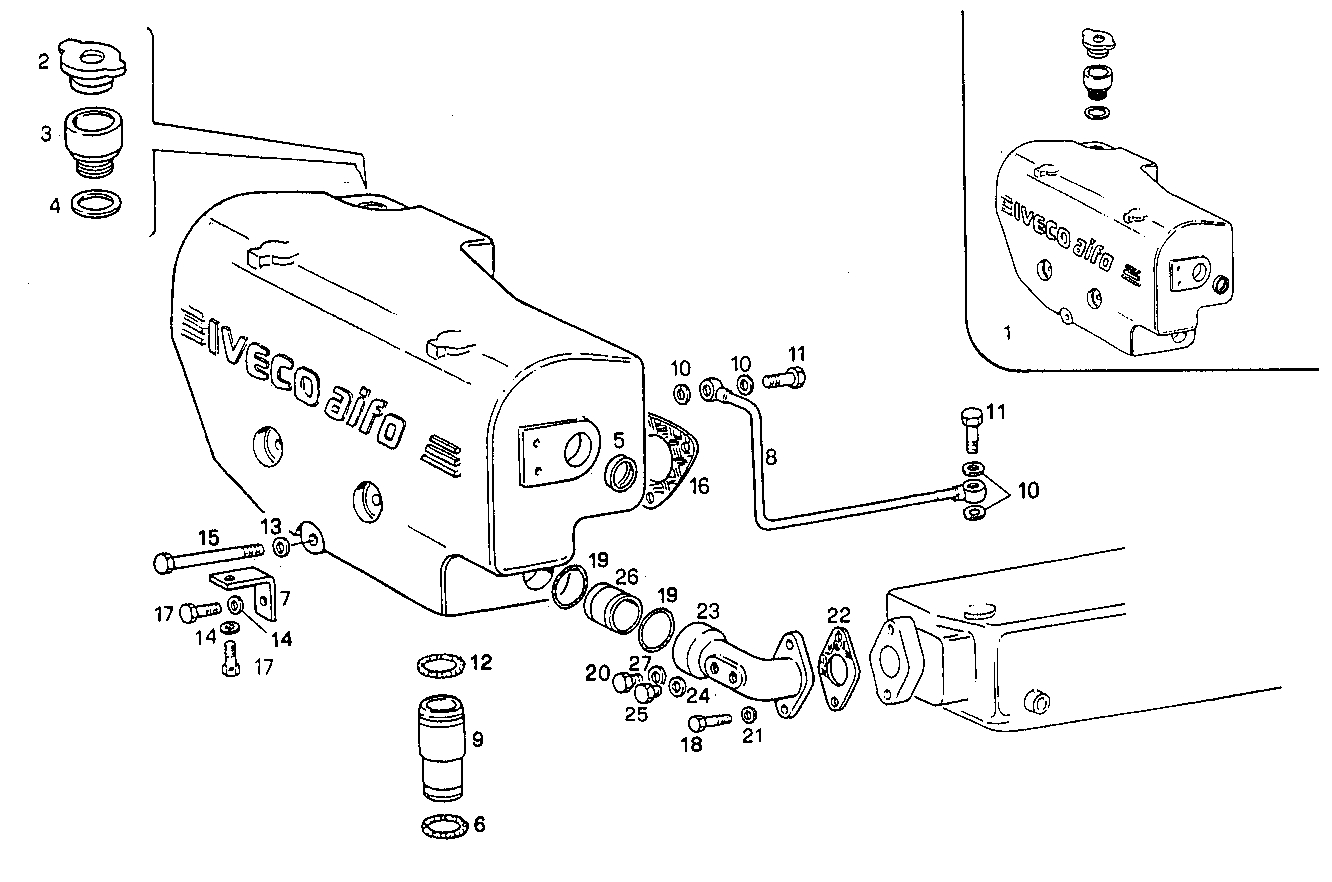

3210.082/01 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 8007139 WATER EXPANSION TANK ASSY
2 4930462 PLUG
3 8102030 FILLER NECK
4 10265360 SEAL GASKET Ø40X48 MM SP=1,5 MM
5 14282770 LOCK PLUG Ø36 MM
6 98458443 O-RING DIA 2.62X25.07 [from 657424]
7 8007133 RETAINER
8 8011617 WATER PIPE
9 98415712 PIPE SOCKET [from 657424]
10 98474306 WASHER Ø12X20 MM SP=1,9 MM
11 8009696 SCREW CONNECTOR M12X1,5X25
12 98458442 O-RING Ø24,99 MM SP=3,53 MM [from 657424]
13 17095004 WASHER Ø10X18X2 MM
14 17089774 SPRING WASHER Ø8,4X22 MM SP=2,4 MM
15 15972621 HEXAGON BOLT M10X1,25X140 MM
16 4851926 FLAT ENGINE GASKET
17 16043321 HEXAGON BOLT M8X18 MM
18 16605624 HEXAGON BOLT M8X25 MM (8.8)
19 17289581 O-RING Ø40,87X3,53 MM
20 16992440 THREADED PLUG M16X1,5
21 17094914 WASHER 8x16
22 8009640 GASKET
23 8007096 WATER PIPE
24 4858608 SEAL GASKET dia.14x19,5x1,5
25 16992340 THREADED PLUG M14X1,5
26 8007092 FLEXIBLE COUPLING
27 4858609 WASHER Ø16X22 MM SP=1,5 MM
