8061SM20.30

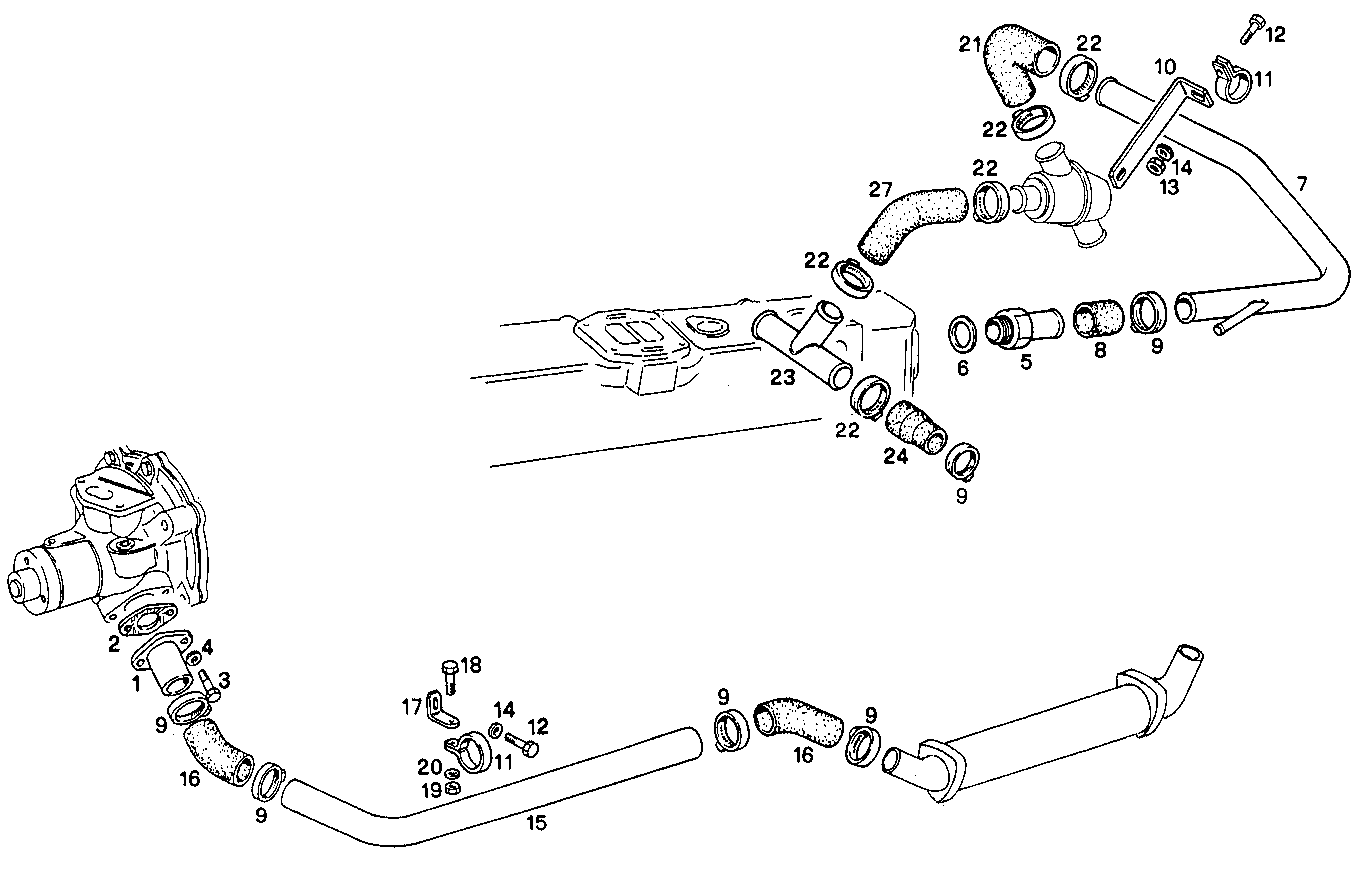

3210.082/02 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 4772995 WATER PIPE
2 98418621 GASKET
3 98401723 HEXAGON BOLT M8X1,25X12 MM
4 17094914 WASHER 8x16
5 8016984 PIPE SOCKET
6 10265460 SEAL GASKET Ø42X49 MM SP=1,5 MM
7 8017439 WATER PIPE
8 17742687 RUBBER SLEEVE
9 17764793 CLIP Ø32/50 MM
10 8108979 RETAINER
11 8103077 CLIP
12 16605524 HEXAGON BOLT M8X20 MM
13 17037931 HEXAGON NUT M8X1,25
14 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
15 8017436 WATER PIPE
16 8017516 WATER HOSE
17 8102705 RETAINER
18 16607524 HEXAGON BOLT M10X1,5X20 MM (8.8)
19 17038121 HEXAGON NUT M10
20 17090174 SPRING WASHER Ø10X20 MM
21 4936760 RUBBER SLEEVE
22 17764893 CLIP Ø40/60 MM
23 8017440 WATER PIPE
24 98447313 WATER HOSE Ø45 MM/Ø38 MM
27 4787630 RUBBER SLEEVE
